Skin on frame sailboat stiffness

Discussion in 'Boat Design' started by Tink, Jun 21, 2018.

  1. Tink
    Joined: Jun 2018
    Posts: 34
    Likes: 1, Points: 8
    Location: North East England

    Tink Junior Member

    I am currently designing a 12ft skin on frame sailboat loosely based on a Peapod
    We do not have an abundance of good wood here in the UK so going down the Dave Gentry ply frame route (4-5 frames) with 4 off 3/4” x 1” ash stringers per side plus keel and substantial gunwales. Dave has a number of good sailboats using this construction which appear to sail well, even completed the Everglades Challenge in his 15’ Chautauqua. All his boats have epoxied joints.
    Home http://gentrycustomboats.com/

    Platt Monfort with his Geodesic Boats glues the ribs to the stringers and then added Kevlar diagonal bracing which makes a lot of sense to me. Our Boats - Geodesic AiroLITE Boats http://gaboats.com/boats/

    I have also looked at traditional methods, read ‘Building Skin-on-Frame Boats’ by Robert Morris and listened to Corey Freedman on Hooked on Wooden Boats from Skin Boats
    HOWB 109 – Interview the Expert | Skin Boat School Owner Corey Freedman on Skin-On-Frame Building http://hookedonwoodenboats.com/howb-109-interview-the-expert-skin-boat-school-owner-corey-freedman-on-skin-on-frame-building/
    Corey who has build some quite large sailing Umiaks is very addiment that even for sailing SOF craft flexibility is critical. This totally strikes a cord with me if you are building a lightweight structure allowing it to move and spread the stress throughout the whole craft has a lot of logic to it. This obviously goes against what your hard core sailor would want.

    The boat I want is a cruiser for exploring areas not usually sailed, it has to be light, cartopped and reliable, as long as it sails overall speed is of little concern

    This gives me a few directions I would value input on, remembering it has 4 - 5 plywood frames
    A> As per Dave Gentry- epoxy all joints
    B> Joints lashed as a more traditional design
    C> Joints lashed and in addition add diagonal low stretch braces as per Platt Monfort
    D> Continue search and try and find some suitable timber for a traditional build
    E> Continue search and try and find some suitable timber for a Platt Monfort type construction

  2. alan craig
    Joined: Jul 2012
    Posts: 217
    Likes: 28, Points: 38, Legacy Rep: 14
    Location: s.e. england

    alan craig Senior Member

    I recently built a skin on frame rowboat with transom and the back half of the boat was extremely flexy until the boat was covered and painted. I don't really understand why you would want a sailing boat to be flexible; that might pull apart any glued stringer/frame joints. Without having tried it, I would think that the Gaboats diagonal string bracing must work, or arrange the covering fabric with threads going +/- 45 deg. instead of 0/90 deg. would be an excellent way of both stiffening, and spreading the torsional forces throughout the covering. I considered this covering method for my boat but it requires more fabric, and I won't be sailing it.
    (edit) ps. A double ended boat will be inherently stiffer than my transom boat as it is mainly triangles whereas the back of my boat is trapezoidal. Also, if you have a deck (mine doesn't) the boat will be stiffer.

  3. Tink
    Joined: Jun 2018
    Posts: 34
    Likes: 1, Points: 8
    Location: North East England

    Tink Junior Member

    Thanks, sounds like a greenhouse until you put the glass in it. I think a model is called for to test different string and fabric bracing.

    Re flexibility the idea is that rather than one joint being stress in yeilds a little and the next joint takes the stress and so on. By not loading up one area and spreading the load about the boat is able to take more punishment. Most structures are designed with a degree about of flexibility. Planes would be too heavy to fly if the design criteria was a wind that could not flex. With a sailboat I would not be wobbly just yield a little

  4. Tink
    Joined: Jun 2018
    Posts: 34
    Likes: 1, Points: 8
    Location: North East England

    Tink Junior Member

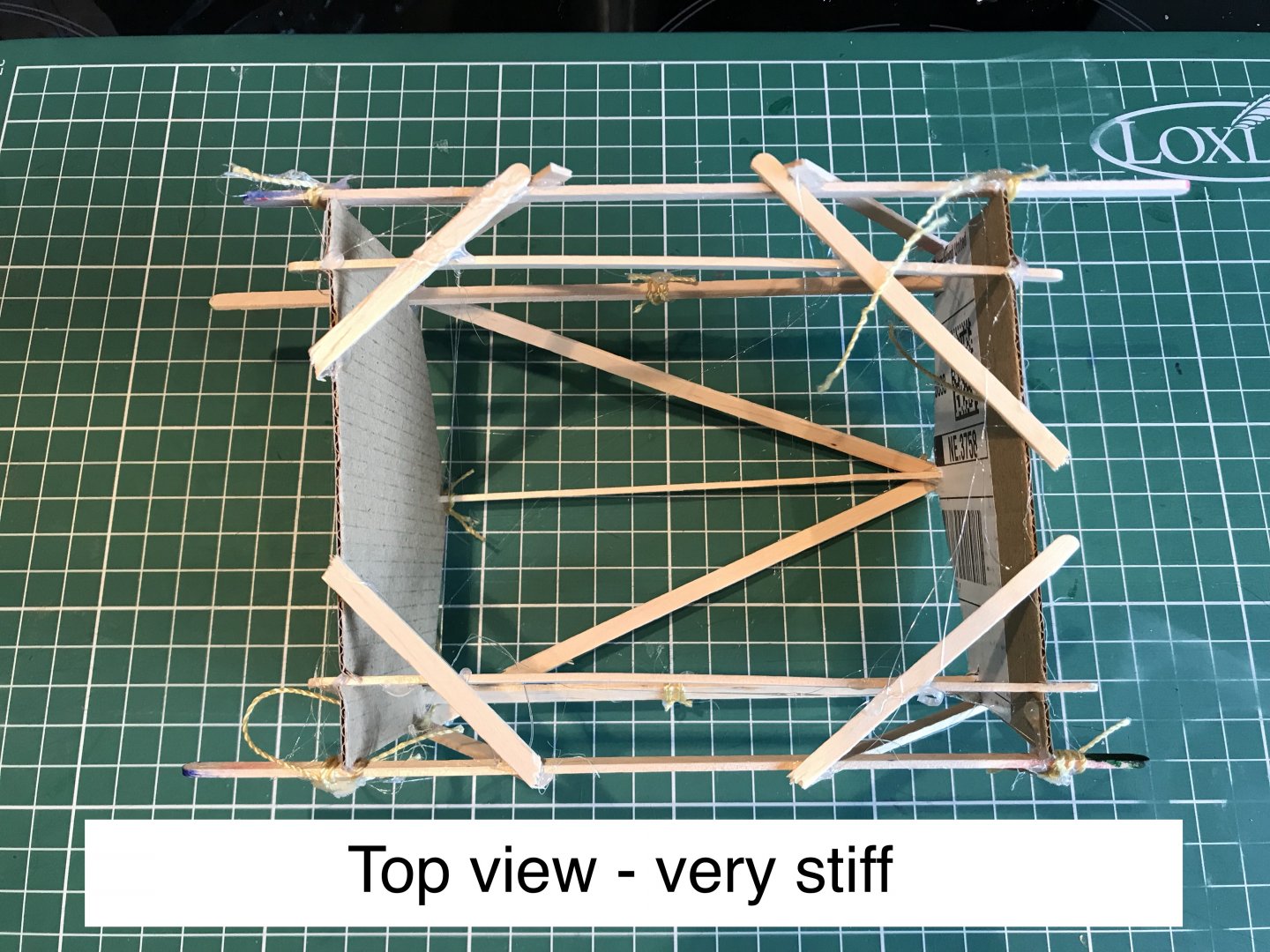

    436478AF-19B9-4EB5-BE9B-F7357188024C.jpeg 6C1735FC-B90D-49E3-BF5D-9B001F445AC8.jpeg 1D02C655-B3F4-4B1E-BA26-D89BA5CBCD09.jpeg 8285A6AA-0950-4D12-A678-430D88DF9A36.jpeg 261881AF-A25F-455D-B3BA-445C4C86E581.jpeg 34382A8D-F7B2-4E97-B06E-EC71179EABF3.jpeg Made a very crude model, hope pictures work. Results not at all surprising but good the feel the effect different stiffening. Without any cross bracing the craft is VERY flexible. It is however easy to add stiffness this however is best on all sides, ie adding features where the deck is important.


    Attached Files:

  5. alan craig
    Joined: Jul 2012
    Posts: 217
    Likes: 28, Points: 38, Legacy Rep: 14
    Location: s.e. england

    alan craig Senior Member

    I love the bracing model! Can you try it with skin (bedsheet?) at +/-45 Please?! Did you get closer to making a decision about what you will do re. construction?

  6. Tink
    Joined: Jun 2018
    Posts: 34
    Likes: 1, Points: 8
    Location: North East England

    Tink Junior Member

    Half an hour with a quick and dirty model can be very informative. Will model with a skin but it might not be until Monday.

  7. Skyak
    Joined: Jul 2012
    Posts: 1,194
    Likes: 25, Points: 38, Legacy Rep: 152
    Location: United States

    Skyak Senior Member


    The answer is:
    F>take advantage of the fact that you have a double-ender hull and follow the concept of the traditional kayak construction with tall vertical boards at the gunnels (or wherever vertical is in your hull). You can use modern construction to lighten these boards by making "I" beams with solid straight grain stringers on the sides of a thin plywood shear web. Glue these beams solidly to the primary bulkhead, the frame at the back of the cockpit, and at each end of the boat. Also mount the dagger board trunk and the mast directly and solidly to the primary bulkhead. This may add a little more weather helm but a slightly larger rudder to smaller dagger will work great on such a small boat. A tall strong keel is not a bad use of wood -I prefer continuous straight grain strips on either side of the dagger case the full length of the boat.

    The negative to the diagonal low stretch braces is that they are exposed to damage or buckling and/or they stress the stringers and the skin loosens or puckers. If you do it the way I layout above you have a solid sailboat with only the addition of 2 thin webs (2 layers of any veneer at 45 deg) and a little glue.

    Tink likes this.
  8. Tink
    Joined: Jun 2018
    Posts: 34
    Likes: 1, Points: 8
    Location: North East England

    Tink Junior Member

    B9E0511E-9150-424D-B425-A31A2F6D4633.jpeg I was working on a CAD sketch along the same lines when you posted, haven’t yet completed the I beams yet but sure you get the picture this is one 5th of the hull 3.4 kg. Extra stiffness can be added to I beams with unidirectional fibres where neaded. Gunwale may be a L shape for comfort. Going to get a general construction arrangement sorted and see how that lays out from one sheet of 12mm ply. If that doesn’t quite make it I can substitute the sheer web bits with 4mm / sheet lumber

    Planned on building keel first and build everything off that - no strong back required

    Was having a ring bulk head at the mast directly attached to the dagger board and using a balanced lug rig to bring CE forward.

  9. Tink
    Joined: Jun 2018
    Posts: 34
    Likes: 1, Points: 8
    Location: North East England

    Tink Junior Member

    74750BFF-2059-4DBD-8F6C-CE7870D54577.jpeg 34549991-84FE-4592-AE4B-539CCCBDA968.jpeg Very rough model, something went wrong with the width 18kg at the moment

  10. Tink
    Joined: Jun 2018
    Posts: 34
    Likes: 1, Points: 8
    Location: North East England

    Tink Junior Member

    3C010593-8B89-4401-A932-7159AA57B6D0.jpeg AFDF25D3-B79D-4E19-829D-FB5B2A77C408.jpeg Ball park DelftShip design
    LOA 3.6m > 11’ 10”
    Beam 1.2m > 3’ 11”
    Draft 0.1m > 4”
    Displacement 140kg > 308lb
    Midships depth 0.4m > 1’ 4”

  11. Tink
    Joined: Jun 2018
    Posts: 34
    Likes: 1, Points: 8
    Location: North East England

    Tink Junior Member

    35EB57C9-FFB0-43D5-BB3D-0AA80DDBCDE9.jpeg Lots of improvements to hull shape required but CAD model enough to try and nest all the 12mm ply onto one sheet

  12. Tink
    Joined: Jun 2018
    Posts: 34
    Likes: 1, Points: 8
    Location: North East England

    Tink Junior Member

    665839C8-65B3-474E-ABE2-23371F691441.jpeg 093D352A-EA89-4D06-8A69-4466D9FB4AFF.jpeg

    Feasibility layout of ply as a test done

    Proves can all be got from 1 sheet 12mm ply

    Space to join the frames ie port and starboard frame would slot into keel, not separate as drawn

    Plus gunwales and boards etc

    Modifications required to the actual hull shape next and then lots of detail design work

  13. Zilver
    Joined: Nov 2007
    Posts: 60
    Likes: 2, Points: 8, Legacy Rep: 14
    Location: Amterdam the Netherlands

    Zilver Junior Member

  14. Tink
    Joined: Jun 2018
    Posts: 34
    Likes: 1, Points: 8
    Location: North East England

    Tink Junior Member

    F7103073-D30A-4BC0-A45A-48C5BB6BF954.jpeg F7103073-D30A-4BC0-A45A-48C5BB6BF954.jpeg 633623D1-BFFD-462C-8724-4E59AC4F9079.png 68AD3FA2-CB1A-4C0C-9B0D-3536436DE285.jpeg C1C43417-9D8A-429C-A6BD-B3EFC80CE3C6.jpeg 694223BD-9100-4052-A74A-0EF0C57C0DC8.jpeg 508DE955-011E-436D-B1D0-8F8EF39D62DE.jpeg Thanks for that like, certainly is a substantial keel, I am meeting progress, still to design the gunwale and internals


  15. bjdbowman
    Joined: Apr 2017
    Posts: 68
    Likes: 2, Points: 8, Legacy Rep: 10
    Location: Florida

    bjdbowman Junior Member

    Tink,

    Did you finish this design?
