Questions Wishbone - Birig, Rotating, Unstayed Wing Masts - Catamaran

Discussion in 'Multihulls' started by jorgepease, Feb 23, 2018.

  1. jorgepease
    Joined: Feb 2012
    Posts: 1,591
    Likes: 45, Points: 48, Legacy Rep: 75
    Location: Florida

    jorgepease Senior Member

    I've read every thread on wishbones but I am left more confused. Some people say wishbone rigs suffer upwind, others point at Wyliecats and say not a problem, very simple, inexpensive.

    - Who is right?

    - Does a Wishbone boom sound like a good option (compared to a rigid boom) for a bi-rig unstayed rotating wingmast on a 75 foot performance cruising catamaran.

    - Will a Wishbone boom work well with long aspect ratio sails.

    - Do you know of any similar boats rigged this way?

    This is the boat I would consider rigging a wishbone on
    render045.jpg render046.jpg

  2. Doug Lord
    Joined: May 2009
    Posts: 14,903
    Likes: 167, Points: 73, Legacy Rep: 1362
    Location: Cocoa Beach, Florida

    Doug Lord Flight Ready

    Two very modern trimaran foilers--the TF10 and the SuperFoiler use half wishbones-less weight and still very effective...........
    Stb. tack wishbone half visible:
    SuperFoilerEuroflexDreamTeam-from catsailingnews.jpg

    Port tack no wishbone visible:
    Superfoiler port tack no wishbone.jpg

  3. Angélique
    Joined: Feb 2009
    Posts: 2,254
    Likes: 181, Points: 63, Legacy Rep: 1632
    Location: Belgium ⇄ The Netherlands

    Angélique aka Angel (only by name)

  4. PAR
    Joined: Nov 2003
    Posts: 19,133
    Likes: 465, Points: 93, Legacy Rep: 3967
    Location: Eustis, FL

    PAR Yacht Designer/Builder

    The wishbone boom doesn't affect performance, unless it's a straight stick and only then in very light air. It is heavier than a more conventional approuch, though it can save some rigging, as a trade off to a degree. I use and make 1/2 wishbones regularly, which saves some weight, though special attention needs to be made in regard to compression loads, changing the shape of the boom.

  5. Doug Lord
    Joined: May 2009
    Posts: 14,903
    Likes: 167, Points: 73, Legacy Rep: 1362
    Location: Cocoa Beach, Florida

    Doug Lord Flight Ready

    The half-wishbone seems like a good solution for use with a deck sweeping main.

  6. jorgepease
    Joined: Feb 2012
    Posts: 1,591
    Likes: 45, Points: 48, Legacy Rep: 75
    Location: Florida

    jorgepease Senior Member

    That's interesting Doug, that answers the high aspect ratio question. So looking at those Trimarans the tack of my sail would connect down at the base of mast like those shown and it would just clear the salon, I like that. The angle of those wishbones looks pretty flat though?


    Angelique, I have seen these designs, love his innovative approach to so many things. Just spent an hour re-reading all his site. Very interesting A frame mast but I don't want to make anymore changes on things settled lol )

    Par do you stow the sail on a half wishbone? I'm thinking to build mine of carbon fiber, don't think weight should be too great and I hear it's nice with the wishbone to let it catch and stow the sail there.

  7. Angélique
    Joined: Feb 2009
    Posts: 2,254
    Likes: 181, Points: 63, Legacy Rep: 1632
    Location: Belgium ⇄ The Netherlands

    Angélique aka Angel (only by name)

    Just saw the 8.6 m (28' 2½") KD 860 now also has a Wishbone sloop rig option, but here it's not the boom, but a Wishbone gaff, to create a squarehead.

    [​IMG]

    This could be similar to the Wishbone rig of original Pelican in post #3.

    Here's a KD 860 slideshow vid, it shows a drawing of the original sloop rig at 0:11, and the squarehead wishbone gaff sloop at 0:23.

    Last edited: Feb 24, 2018
  8. Angélique
    Joined: Feb 2009
    Posts: 2,254
    Likes: 181, Points: 63, Legacy Rep: 1632
    Location: Belgium ⇄ The Netherlands

    Angélique aka Angel (only by name)

    Since you're not buying it, I'll conclude I've done no harm here yet . . ;)

  9. jorgepease
    Joined: Feb 2012
    Posts: 1,591
    Likes: 45, Points: 48, Legacy Rep: 75
    Location: Florida

    jorgepease Senior Member

    Yeah I saw that, very cool. Also cool video, now I see about the asymmetrical hulls.

  10. hump101
    Joined: Oct 2004
    Posts: 260
    Likes: 13, Points: 18, Legacy Rep: 58
    Location: Brittany, France

    hump101 Senior Member

    Wishbone booms do affect performance, because they don't allow the sail to twist off in the same way as a regular boom and track arrangement. This is generally a good thing on a high performance boat, as you don't want twist, which is why a track is used with a normal boom as a kicking strap can't easily cope with the forces involved in a big high aspect rig. The wishbone eliminates the need for a track or kicker, and massively reduces the mainsheet loads, but if you are looking to induce twist, e.g. to account for wind shear, you need to do so via tuning the mast stiffness and leach shape, combined with a powerful downhaul. All well understood by a decent sailmaker so you shouldn't have a problem getting a suitable sail made.

    On high performance boats like yours, the apparent wind dominates at low windspeeds, and hence the need for sail twist is not so marked, hence a wishbone boom is a good solution, particularly with rotating unstayed masts as you don't need twist to dump the sail in extreme conditions.

    Angélique and jorgepease like this.
  11. Gary Baigent
    Joined: Jul 2005
    Posts: 2,902
    Likes: 68, Points: 48, Legacy Rep: 509
    Location: auckland nz

    Gary Baigent Senior Member

    I did a half wishbone, metre high mounted boom on Flash Harry back in the 1980s. The mast/boom attachment was a stainless ring epoxied slightly forward and to one side of mast track.
    Oops, wrong photograph, will search - but this is the boat. Here's the correct image with half boom. No that too is later photograph, will search some more. Finally.


    Attached Files:

    Angélique and jorgepease like this.
  12. jorgepease
    Joined: Feb 2012
    Posts: 1,591
    Likes: 45, Points: 48, Legacy Rep: 75
    Location: Florida

    jorgepease Senior Member

    That is good to hear hump101

  13. redreuben
    Joined: Jan 2009
    Posts: 1,560
    Likes: 44, Points: 48, Legacy Rep: 349
    Location: Beaconsfield Western Australia

    redreuben redreuben

    Jorge;

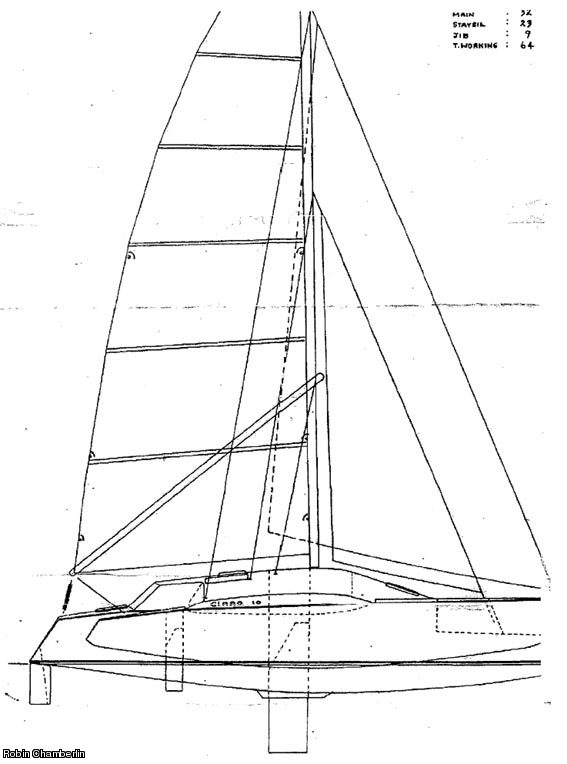

    The Robin Chamberlain Cirrostratus 10 Trimaran used the Wishbone rig, not a lot of information out there I'm afraid, here's what I have,
    96278-8863df60d865d52b88ada7a49db37b0c.jpg Cirrostratus10 Sailplanplan.jpg
    Rob Denney at Harryproa uses them a lot on his rotating unstayed masts and would probably be a good person to bounce ideas off.

  14. redreuben
    Joined: Jan 2009
    Posts: 1,560
    Likes: 44, Points: 48, Legacy Rep: 349
    Location: Beaconsfield Western Australia

    redreuben redreuben

    Hump 101; Surely you can open the leach by letting the wishbone run up its mast track a bit ? Aah yes but that would also make the bottom fuller. Hmmm
    just thinking allowed. :D


  15. jorgepease
    Joined: Feb 2012
    Posts: 1,591
    Likes: 45, Points: 48, Legacy Rep: 75
    Location: Florida

    jorgepease Senior Member

    Thanks, I googled that and found a few more pics of it.

    Yeah, I emailed Rob and he was the one that suggested it as the most logical option. I just wanted to bounce it off others to gain a little better understanding. I am now thinking it's the right way to go as well and I actually like the look of it once I drew it with the boat.
