Quant 23 Foiler Scow

Discussion in 'Sailboats' started by Doug Lord, Jun 8, 2015.

  1. Doug Lord
    Joined: May 2009
    Posts: 14,081
    Likes: 121, Points: 73, Legacy Rep: 1362
    Location: Cocoa Beach, Florida

    Doug Lord Flight Ready

    Quant 23 Foiling Scow Keelboat

    New picture of the production boat foiling with three crew:

    [​IMG]

  2. projetdared
    Joined: May 2007
    Posts: 18
    Likes: 0, Points: 1, Legacy Rep: 10
    Location: FRANCE

    projetdared Junior Member

    IT looks more and more to the monitor. Specialy with the guy sitting in the cockpit.
    [​IMG]

  3. Doug Lord
    Joined: May 2009
    Posts: 14,081
    Likes: 121, Points: 73, Legacy Rep: 1362
    Location: Cocoa Beach, Florida

    Doug Lord Flight Ready

  4. Skyak
    Joined: Jul 2012
    Posts: 1,167
    Likes: 20, Points: 38, Legacy Rep: 152
    Location: United States

    Skyak Senior Member

    Quite an amazing guy. It is hard to believe the speeds they hit back then -with wood cotton and steel for materials! I was also amazed to read that the foils were "computer" controlled. I can't imagine any way that could be digital so there must be a reasonably simple analog computer able to handle the task. And all it's inputs are forces! Analog 'computers' all have mechanical equivalents.

  5. Doug Halsey
    Joined: Feb 2007
    Posts: 222
    Likes: 12, Points: 18, Legacy Rep: 160
    Location: California, USA

    Doug Halsey Senior Member

    I second your amazement & would also like to know more about his "computer."

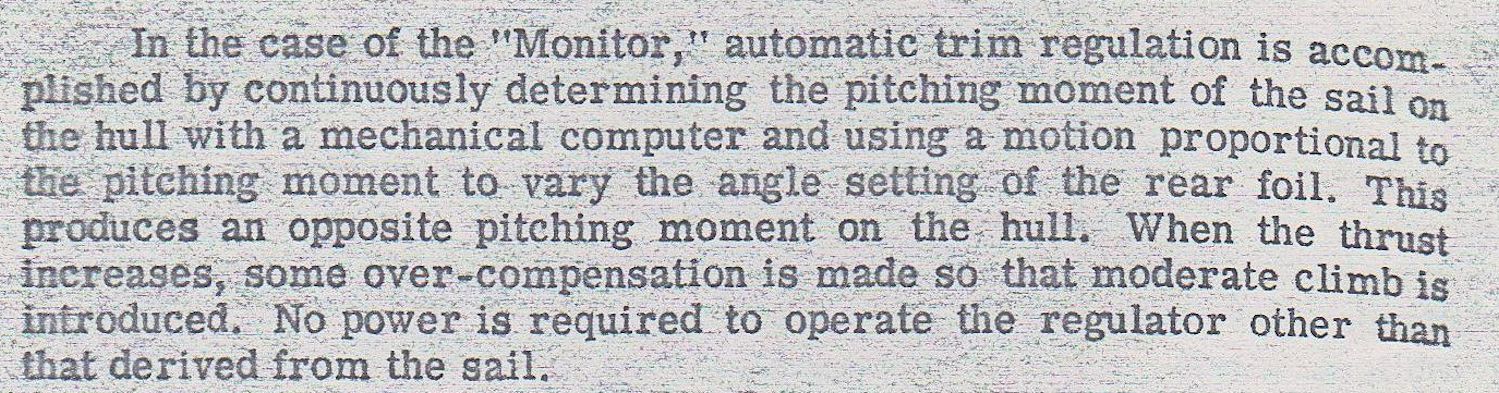

    Some hints are given in a paper written by him, available at :

    https://babel.hathitrust.org/cgi/pt?id=uc1.$b672020;view=1up;seq=251

    I've excerpted one paragraph below (Click to enlarge).

    Since this research was sponsored by the U.S. Navy, it's possible that some more diligent Googling might turn up more details.


    Attached Files:

  6. Doug Lord
    Joined: May 2009
    Posts: 14,081
    Likes: 121, Points: 73, Legacy Rep: 1362
    Location: Cocoa Beach, Florida

    Doug Lord Flight Ready

    No mention of weight unless I just missed it?! Doug, have you found any info on Monitors weight?
    UPDATE-I found this on foils.org:
    Somewhere in my design notes I have written down Baker's foil chord lengths. I seem to recall Baker told me that MONITOR weighed 800 pounds, which surprised me how light it was. -- David A. Keiper

  7. Doug Halsey
    Joined: Feb 2007
    Posts: 222
    Likes: 12, Points: 18, Legacy Rep: 160
    Location: California, USA

    Doug Halsey Senior Member

  8. Doug Lord
    Joined: May 2009
    Posts: 14,081
    Likes: 121, Points: 73, Legacy Rep: 1362
    Location: Cocoa Beach, Florida

    Doug Lord Flight Ready

    Wow-that history is so cool. I wouldn't have thought to look up the history of the plant! Way to go, Doug!

  9. Doug Halsey
    Joined: Feb 2007
    Posts: 222
    Likes: 12, Points: 18, Legacy Rep: 160
    Location: California, USA

    Doug Halsey Senior Member

  10. Doug Lord
    Joined: May 2009
    Posts: 14,081
    Likes: 121, Points: 73, Legacy Rep: 1362
    Location: Cocoa Beach, Florida

    Doug Lord Flight Ready

    Wasn't a problem-I just copied it and pasted in the browser and it came up. Couldn't get it to work as a link though-I've never run into that before-what did you do?

  11. brian eiland
    Joined: Jun 2002
    Posts: 4,758
    Likes: 146, Points: 73, Legacy Rep: 1903
    Location: St Augustine Fl, Thailand

    brian eiland Senior Member

    WOW, I haven't seen that photo in YEARS !!

  12. Doug Halsey
    Joined: Feb 2007
    Posts: 222
    Likes: 12, Points: 18, Legacy Rep: 160
    Location: California, USA

    Doug Halsey Senior Member

  13. Doug Halsey
    Joined: Feb 2007
    Posts: 222
    Likes: 12, Points: 18, Legacy Rep: 160
    Location: California, USA

    Doug Halsey Senior Member

    I simply copied & pasted the link & then underlined it, the same way that I thought I had always done it.

    Since then, I've been using the "Insert Link" icon above the text.

  14. Skyak
    Joined: Jul 2012
    Posts: 1,167
    Likes: 20, Points: 38, Legacy Rep: 152
    Location: United States

    Skyak Senior Member

    This patent document does a pretty good job of detailing the flight control "computer". All the stays and even the main sheet forces are applied to a space frame that is linked to the hydrofoils angle of attack. It appears to be nothing more than an elaborate spring and damper, but there is one add I still don't understand -it looks like a propeller on a drum (don't know what's inside) on a four bar mechanism. I want to know if wind power is being used for 'active control' or if the entire Monitor flight system is just force/deflection. Clearly the steady state can be worked out to force deflection, but I wonder about dynamic responses or running into nonlinear responses.


  15. Doug Halsey
    Joined: Feb 2007
    Posts: 222
    Likes: 12, Points: 18, Legacy Rep: 160
    Location: California, USA

    Doug Halsey Senior Member

    Are you referring to the last figure (Fig.14, Sheet 10)?

    If so, the text says " Fig. 14 is a fragmentary schematic view illustrating the manner of incorporating the incidence adjustment in a boat driven by an air propeller." So, it doesn't apply to Monitor itself.

    I'm not a mechanical expert by any stretch of the imagination, but I'm pretty sure that the system is just force/deflection.
