Generating 3D hull using only picture of boat.

Discussion in 'Software' started by tea_floss, Mar 26, 2017.

  1. tea_floss
    Joined: Oct 2013
    Posts: 14
    Likes: 1, Points: 3, Legacy Rep: 34
    Location: USA.

    tea_floss Junior Member

    .......

    Last edited: Mar 27, 2017
  2. TANSL
    Joined: Sep 2011
    Posts: 3,977
    Likes: 29, Points: 58, Legacy Rep: 300
    Location: Spain

    TANSL Senior Member

    It would require 2 or 3 cross sections as well as know the main dimensions of the boat.

  3. pafurijaz
    Joined: Dec 2016
    Posts: 65
    Likes: 1, Points: 0, Legacy Rep: 18
    Location: Italy

    pafurijaz Junior Member

    Modelled with blender

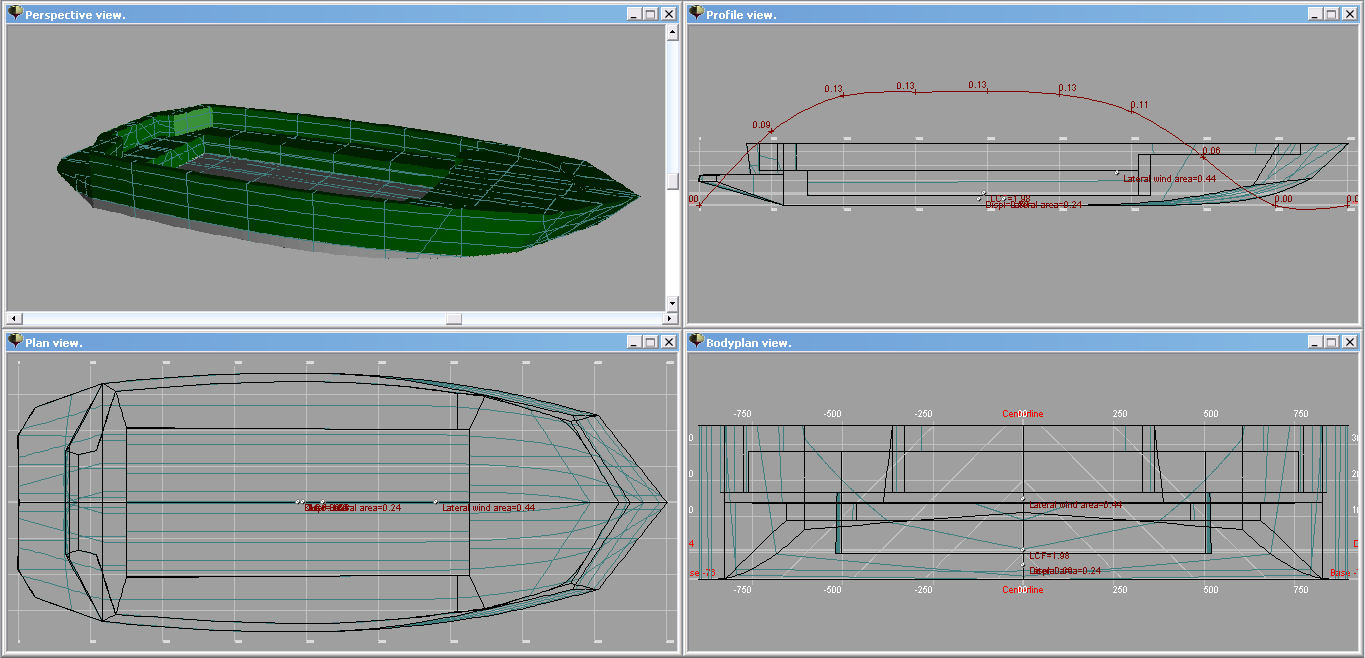

    Hi, I tried to do the model, missing a lot of information, but I took it as a challenge.
    Modeled with Blender and exported to FreeShip.

    Code:
    Design length         :      4.500 m
    Length over all       :      4.509 m
    Design beam           :      1.817 m
    Beam over all         :      1.797 m
    Design draft          :      0.004 m
    Midship location      :      2.250 m
    Water density         :      1.025 t/m^3
    Appendage coefficient :     1.0000
    Volume properties:
        Displaced volume                            :         0.383 m^3
        Displacement                                :         0.392 tonnes



    Attached Files:

  4. TANSL
    Joined: Sep 2011
    Posts: 3,977
    Likes: 29, Points: 58, Legacy Rep: 300
    Location: Spain

    TANSL Senior Member

    Very good job, pafurijaz. With some additional data from the OP, you could get a perfect model.

  5. pafurijaz
    Joined: Dec 2016
    Posts: 65
    Likes: 1, Points: 0, Legacy Rep: 18
    Location: Italy

    pafurijaz Junior Member

    Thanks,:D this hull is the second that I happen to do from the photos, the first model with which I experienced was the boat of Tom Kane, with that I figured out some ways to make these kinds of hulls.

    [​IMG][​IMG]

  6. pafurijaz
    Joined: Dec 2016
    Posts: 65
    Likes: 1, Points: 0, Legacy Rep: 18
    Location: Italy

    pafurijaz Junior Member

    @tea_floss I'm glad I was helpful.


  7. pafurijaz
    Joined: Dec 2016
    Posts: 65
    Likes: 1, Points: 0, Legacy Rep: 18
    Location: Italy

    pafurijaz Junior Member

    files in nurbs

    Hi, are attached the files in 3dm, igs and fbm. To open the FreeShip files, download the latest version from this link FreeShip-3.6.0.16.
