Davit idea

Discussion in 'Boat Design' started by cluttonfred, Mar 2, 2021.

  1. cluttonfred
    Joined: Mar 2014
    Posts: 62
    Likes: 15, Points: 8, Legacy Rep: 15
    Location: United States

    cluttonfred Junior Member

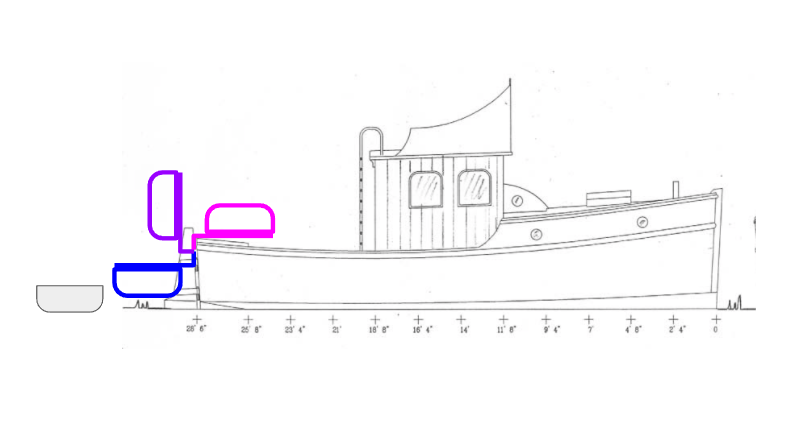

    Does anyone know of any davits (factory systems or DIY) set up like this to swing a small punt through 180 degrees from the water directly to belly-up storage? Yes, the rudder is in the way in this sketch, it's just the drawing I had handy. Obviously you could also stop the swing after just 45 degrees if you wanted to carry the boat below the davits and save deck space. I am sure others have done something like this and I'd love to see those examples rather than try to reinvent the wheel. Thanks and regards, Matthew

    davit idea.png

  2. zstine
    Joined: Sep 2013
    Posts: 118
    Likes: 16, Points: 18, Legacy Rep: 10
    Location: New Jersey

    zstine Senior Member

    I've never seen anything like that. I don't see why it can't be done. The dink couldn't hang. It would have to be snugged pretty tight to the davit arm to prevent it from drooping or slamming as the davit tips it over.... a piece of tube perpendicular to the davit arm that the dink would sit on it's gunwall when 90 deg would help support it. The port and starboard arms would have to move together.. All doable. The biggest down side for many would be that you would have to remove an outboard first.

    cluttonfred likes this.
  3. missinginaction
    Joined: Aug 2007
    Posts: 1,081
    Likes: 240, Points: 63, Legacy Rep: 512
    Location: New York

    missinginaction Senior Member

    I've been grappling with the dinghy storage issue since last summer. I've mocked up a rotating frame that you might be interested in. Let's see if I can post a couple of photos of the full size mock up.

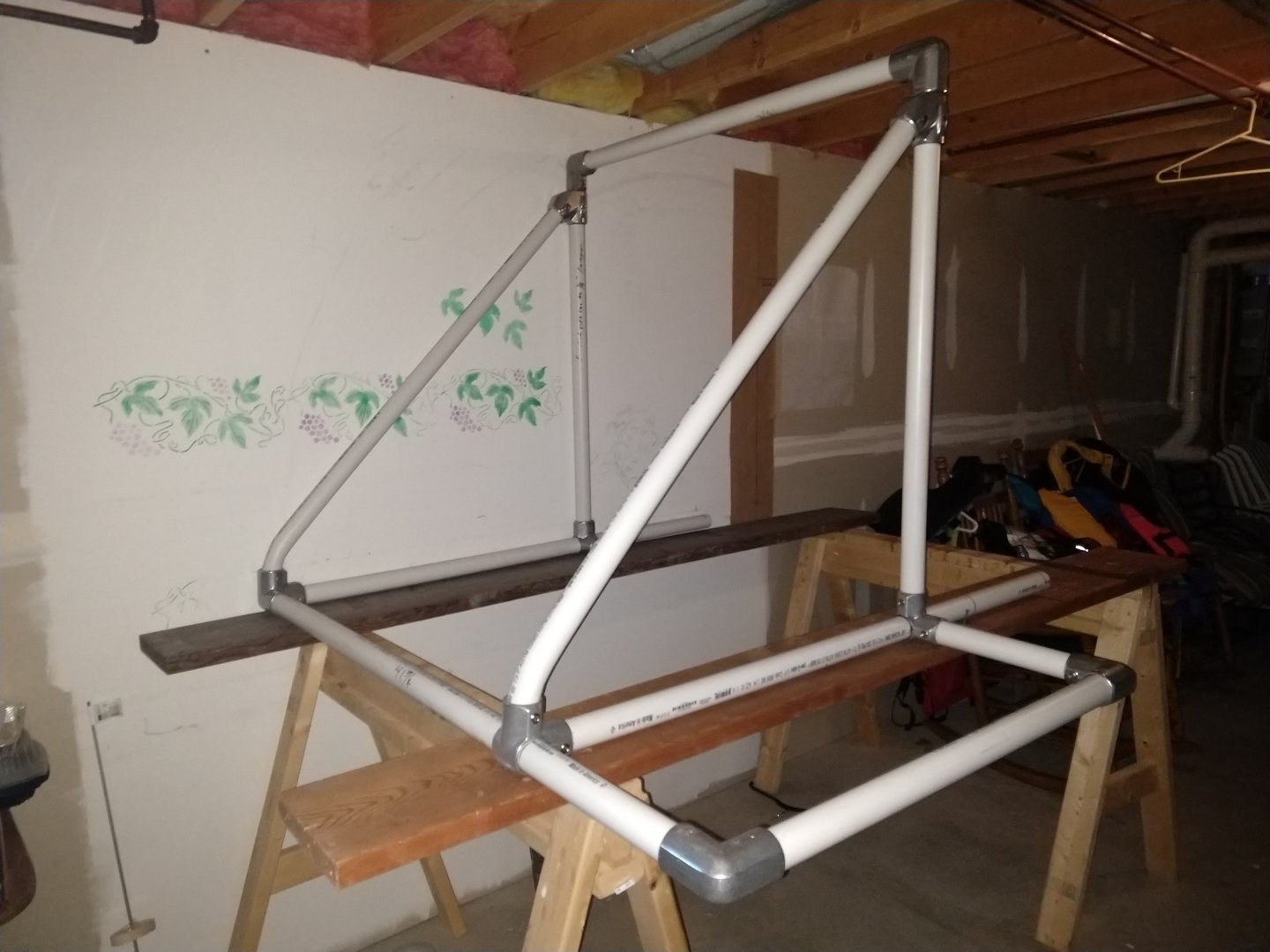

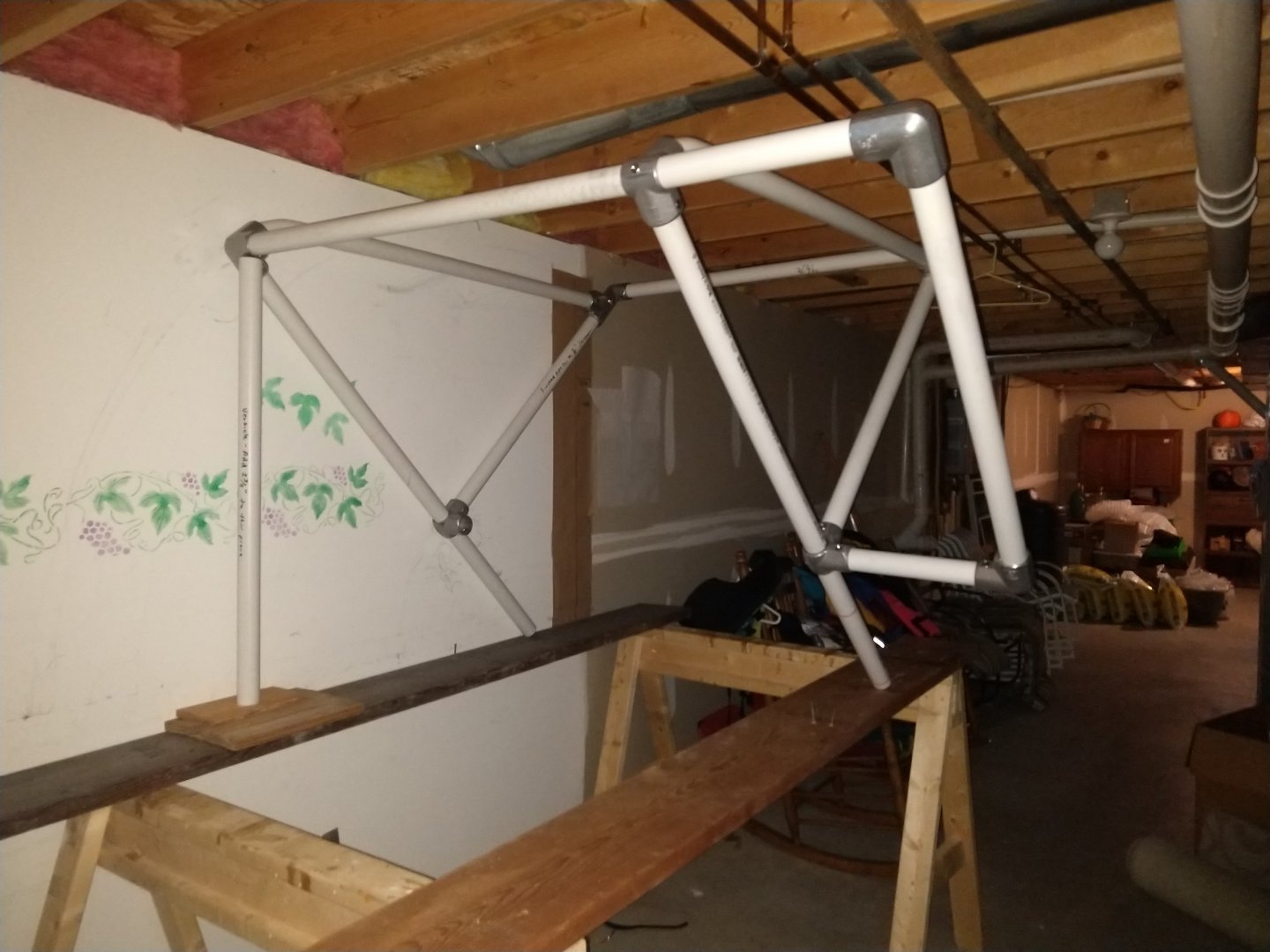

    IMG_20210207_104431842.jpg IMG_20210207_103528856.jpg

    This frame will sit on the swim platform. The right photo shows the deployed position. The left photo shows it in the stowed position. The rectangular part of the frame is for a platform, you step out of the dink and onto the platform then onto the swim deck.

    The dinghy attaches to the frame with a couple of Weaver snap davits. The dink rotates up and forward onto the 45* diagonal supports. This is 135* of total rotation. Once settled on the frame the entire assembly rotates 45* forward into the stowed position, upside down.. I'll keep an eye on this thread and provide you with some additional information if you're interested.

    cluttonfred likes this.
  4. cluttonfred
    Joined: Mar 2014
    Posts: 62
    Likes: 15, Points: 8, Legacy Rep: 15
    Location: United States

    cluttonfred Junior Member

    Thanks, zstine, nice to hear that it sounds doable. Yes, the idea was that the two davit arms would be joined by by one or two crossbars and swing as a unit. And yes, there would have to be small perpendicular arms to support the pram during the swing maybe even hooked on the ends to grab the gunwales.

    When doing the drawing I was thinking that the davits would go across the full beam of the pram and become the cradle in the boat, but with separate chocks in the boat the davits need only go to the middle of the boat and would bear no weight when onboard.

    Thanks, missinginaction, our messages crossed but I’ll take a look at your solution.

  5. gonzo
    Joined: Aug 2002
    Posts: 15,770
    Likes: 1,197, Points: 123, Legacy Rep: 2031
    Location: Milwaukee, WI

    gonzo Senior Member

    I've seen something similar, but they only used a couple of brackets on the aft deck that matched brackets on the dinghy's gunwhale. They secured it with two pins and flipped it with block and tackle.

    cluttonfred likes this.

  6. Barry
    Joined: Mar 2002
    Posts: 1,600
    Likes: 347, Points: 83, Legacy Rep: 158

    Barry Senior Member

    DogCavalry, TANSL and cluttonfred like this.
