Which method is better for calculating shear force and bending moment of ship by usi

Discussion in 'Boat Design' started by xichyu, May 18, 2016.

  1. xichyu
    Joined: Apr 2016
    Posts: 99
    Likes: 0, Points: 6, Legacy Rep: 10
    Location: Dalian,Liaoning,China

    xichyu Junior Member

    1.The bearing shear force and bending moment of ship in longitudinal
    direction can be got by using integration. Due to the existence of
    accumulative error, it is difficult to guarantee that bearing buoyancy and
    gravity of barge can be balanced completely. That is to say, shear force
    and bending moment at fore-aft endpoint of barge is not normally zero.
    Therefore, its shear force and bending moment curve should be treated with
    non-seal correction, which makes the shear and bending moment whose
    endpoint is not zero be assigned to curve according to linear proportional
    relationship.

    2.The shear forces and bending moment can be obtained from fore and aft by using integration. Then, there exist two different shear forces and
    bending moment values in barge, and their average value can be the result
    of shear force and bending moment at this place,

    Last edited: May 20, 2016
  2. Ad Hoc
    Joined: Oct 2008
    Posts: 6,110
    Likes: 356, Points: 83, Legacy Rep: 2488
    Location: Japan

    Ad Hoc Naval Architect

    Just open any text book and the procedure is shown clearly how to do by simple hand calculations:

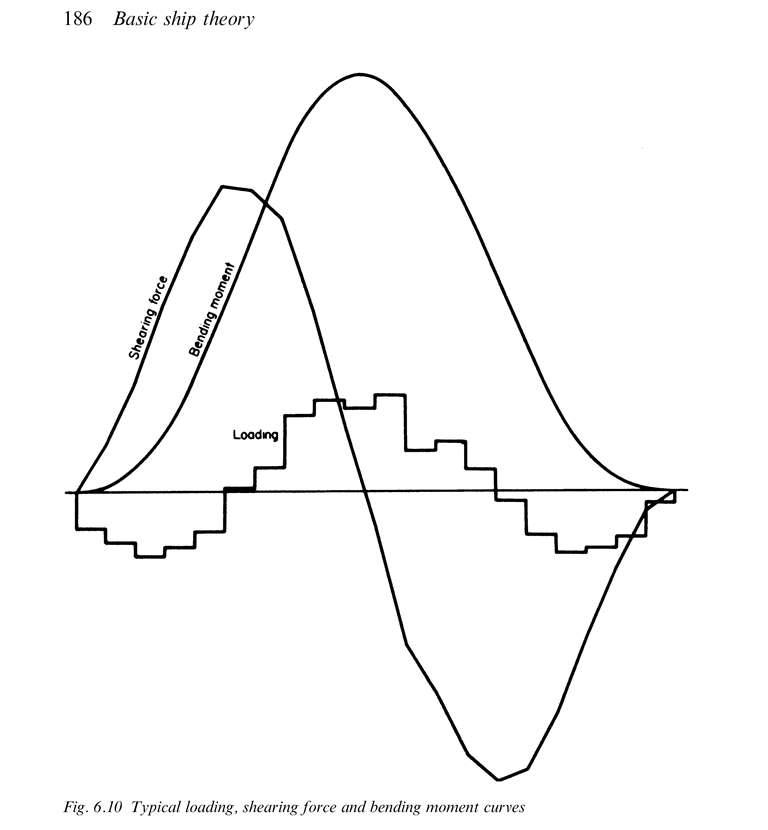

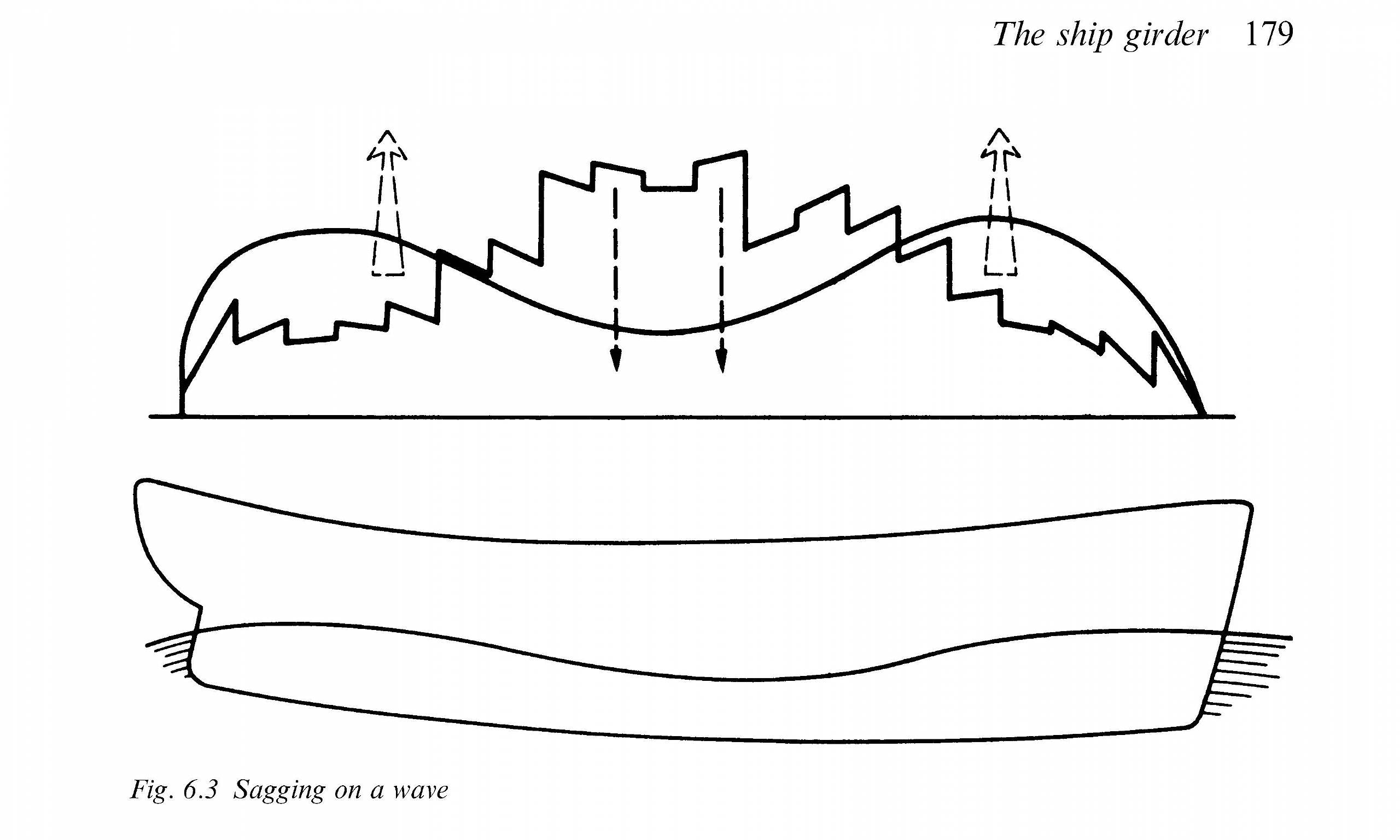

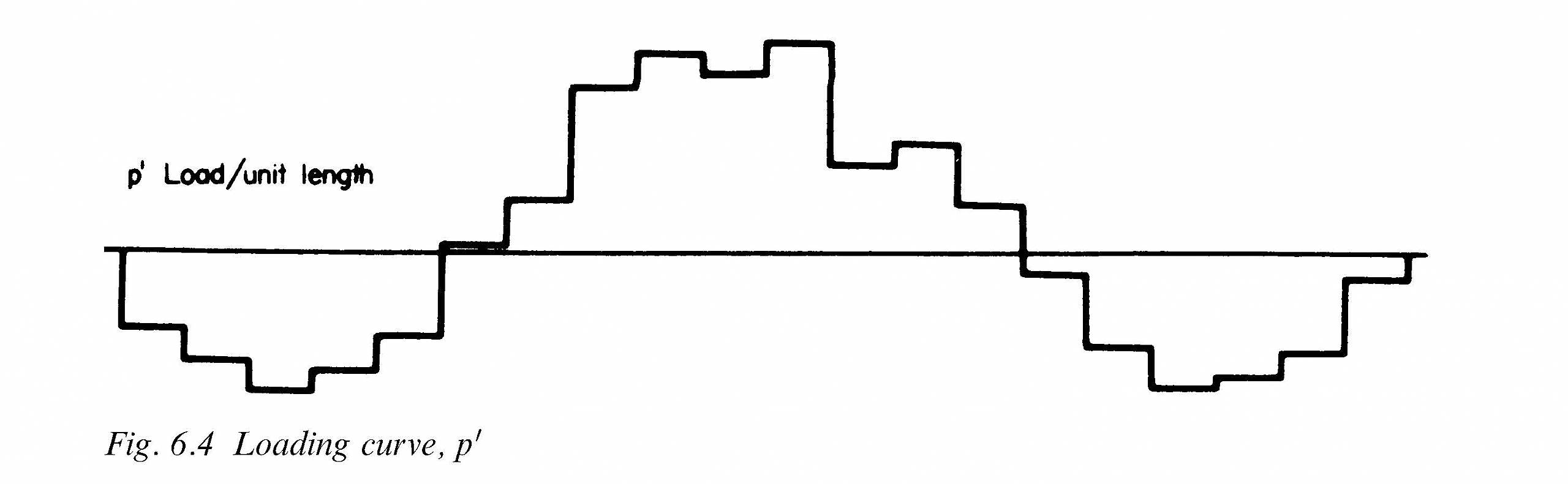

    SWBM-1.jpg SWBM-2.jpg SWBM-3.jpg

  3. Aleksey
    Joined: Aug 2017
    Posts: 23
    Likes: 0, Points: 1
    Location: Ukraine

    Aleksey Junior Member

    I have surfed a lot of time in internet to find step by step way of calculation Bending Moment and Shear Forces on container vessel and can not find nothing.

  4. Ad Hoc
    Joined: Oct 2008
    Posts: 6,110
    Likes: 356, Points: 83, Legacy Rep: 2488
    Location: Japan

    Ad Hoc Naval Architect

    There is your first mistake. Using the internet..it is not a source of everything!!
    Check out any quality naval architecture reference book...it is all explained...read it...simple!

  5. Aleksey
    Joined: Aug 2017
    Posts: 23
    Likes: 0, Points: 1
    Location: Ukraine

    Aleksey Junior Member

    How to say simple....))) A have presently a lot of naval arch. books. In this books described how to calc BM and SF for usual beam. I need example for container ship.

  6. gonzo
    Joined: Aug 2002
    Posts: 13,570
    Likes: 375, Points: 93, Legacy Rep: 2031
    Location: Milwaukee, WI

    gonzo Senior Member

    What difference do you find between a container ship and other types?

  7. Ad Hoc
    Joined: Oct 2008
    Posts: 6,110
    Likes: 356, Points: 83, Legacy Rep: 2488
    Location: Japan

    Ad Hoc Naval Architect

    Then clearly you do not have Basic Ship Theory by Rawson and Tupper.
    Chapter 6, example 1...explains all very simply....

  8. Aleksey
    Joined: Aug 2017
    Posts: 23
    Likes: 0, Points: 1
    Location: Ukraine

    Aleksey Junior Member

    I want to understand one thing: in stability booklet there are max BM and SF for 11 frames. And how to find weight of cargo, ballast, etc exactly for this frame? Or I need to take weights between frames?

  9. Aleksey
    Joined: Aug 2017
    Posts: 23
    Likes: 0, Points: 1
    Location: Ukraine

    Aleksey Junior Member

    Thanks! Will try to find now

  10. gonzo
    Joined: Aug 2002
    Posts: 13,570
    Likes: 375, Points: 93, Legacy Rep: 2031
    Location: Milwaukee, WI

    gonzo Senior Member

    Page 634 has dimensional ratios for different types of ships

  11. Aleksey
    Joined: Aug 2017
    Posts: 23
    Likes: 0, Points: 1
    Location: Ukraine

    Aleksey Junior Member

    This topic as I understand not for me :((( I have make Load Distribution, BM and SF diagram but totally different with Cargo Program Calculation :(

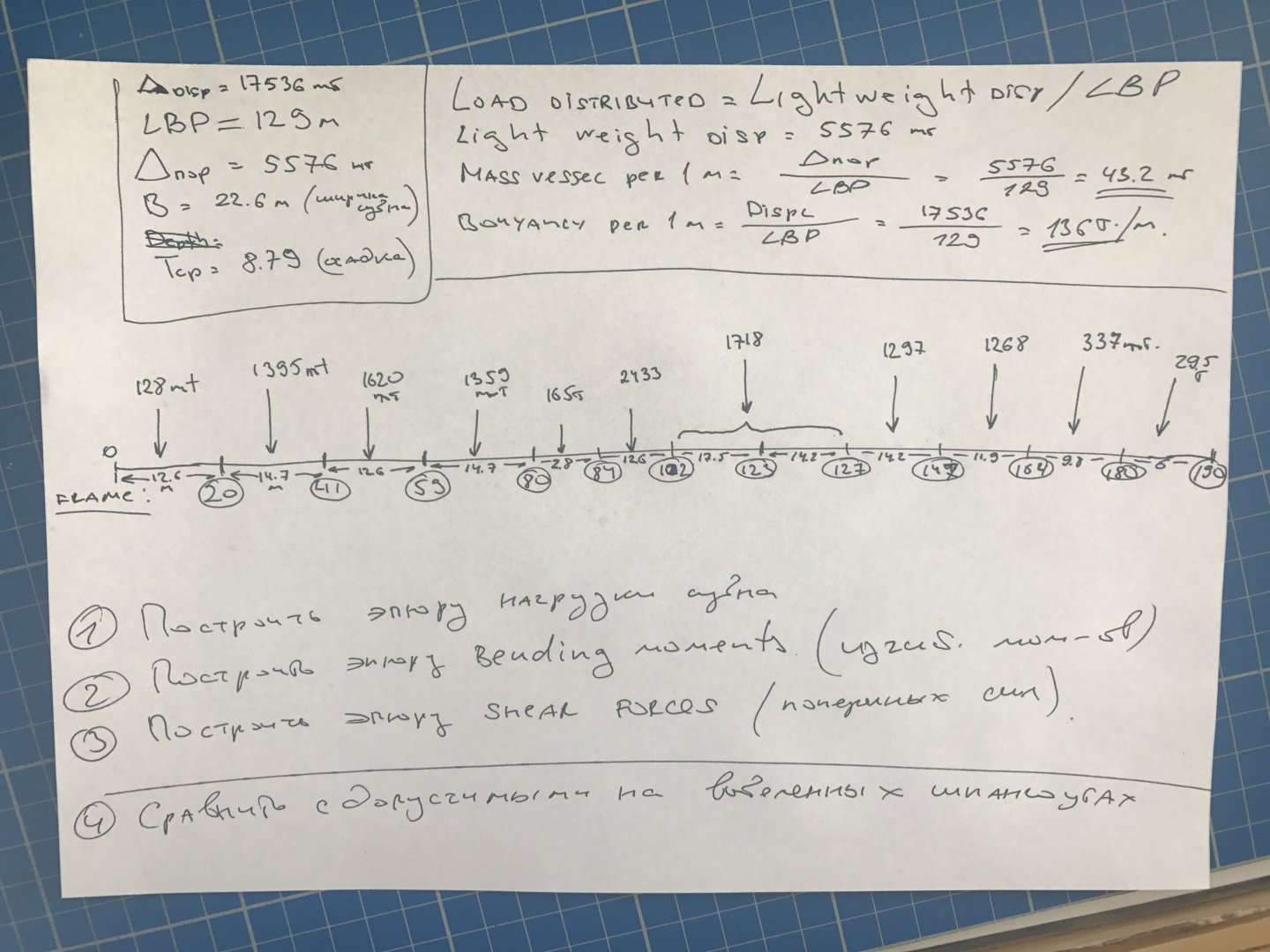

    Here is mine Load Distribution on the vessel


    Attached Files:

  12. gonzo
    Joined: Aug 2002
    Posts: 13,570
    Likes: 375, Points: 93, Legacy Rep: 2031
    Location: Milwaukee, WI

    gonzo Senior Member

    You also need to calculate the buoyancy at the same points you are applying the load (weights). Are you also considering the effect of waves or is this a vessel in flat water?

  13. TANSL
    Joined: Sep 2011
    Posts: 5,699
    Likes: 176, Points: 73, Legacy Rep: 300
    Location: Spain

    TANSL Senior Member

    That is not totally correct. Buoyancy must be calculated along the entire length of the boat. It also happens that not all charges are punctual, many of them are distributed along a certain area of the ship.
    But Gonzo, the most important, once calculated all that, how are the BM and SF calculated at each point?

  14. gonzo
    Joined: Aug 2002
    Posts: 13,570
    Likes: 375, Points: 93, Legacy Rep: 2031
    Location: Milwaukee, WI

    gonzo Senior Member

    If he calculated buoyancy at different points that where he calculated the weight, it introduces an unnecessary complication. The calculations are all explained on Chapter 6 (see post #7)


  15. TANSL
    Joined: Sep 2011
    Posts: 5,699
    Likes: 176, Points: 73, Legacy Rep: 300
    Location: Spain

    TANSL Senior Member

    So, if I have understood well, buoyancy in the areas between the various points is not taken into account?
