Rhino Beginner Question

Discussion in 'Software' started by LePrince, Aug 8, 2020.

  1. LePrince
    Joined: Apr 2011
    Posts: 11
    Likes: 0, Points: 1, Legacy Rep: 10
    Location: Egypt

    LePrince Junior Member

    Hi all

    I'm new with rhinocero software

    i had 3d lines drawn on AutoCAD and Iimported it into rhino as self training on creating surface

    it's a little bit simple lines for tug boat (most sections are straight lines except for and aft)

    i mainly used "sweep 2 rails" command by using two knuckle lines and use sections in between as cross section curves

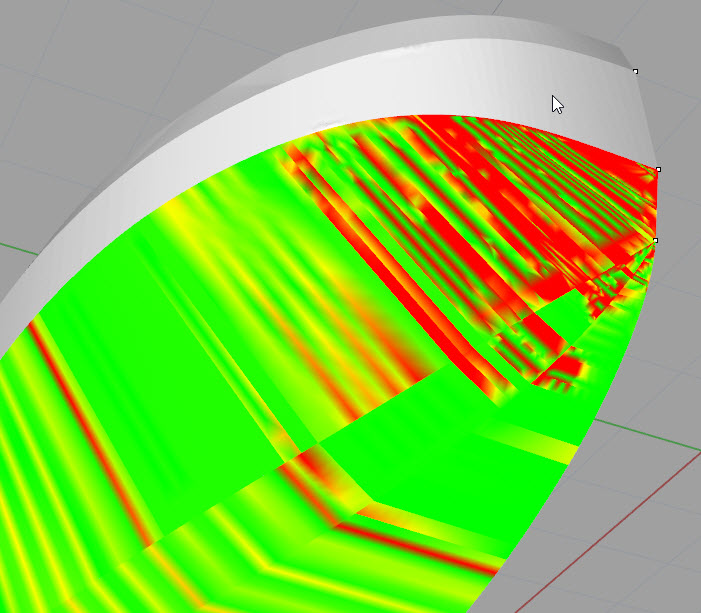

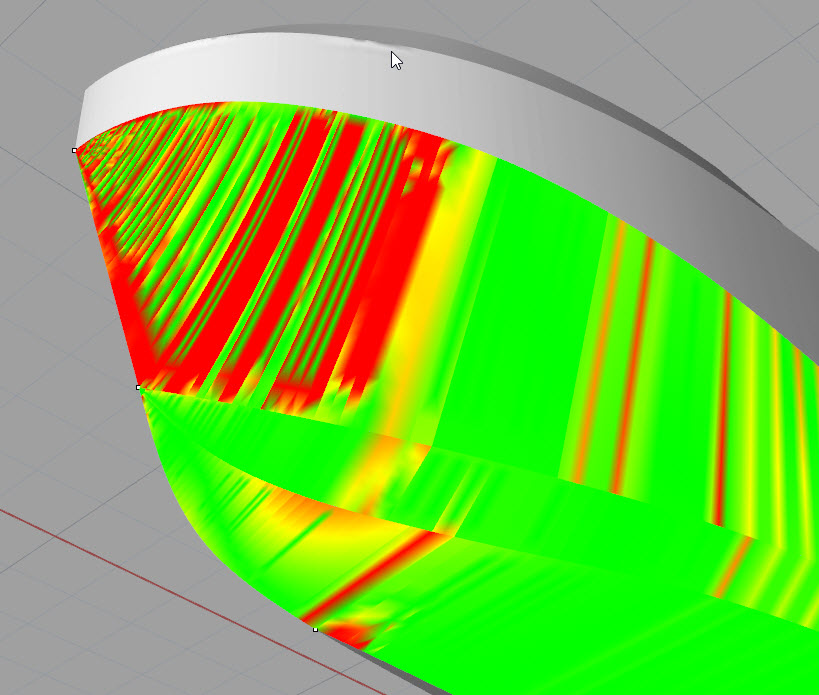

    the output wasn't that good (of course my fault :)) as you can see in attachment

    is there something I've missed or is there are further steps to get my surface faired .

    advices are very welcome

    thanks in advance


    Attached Files:

  2. bhnautika
    Joined: Feb 2006
    Posts: 846
    Likes: 55, Points: 38, Legacy Rep: 571
    Location: australia

    bhnautika Senior Member

    Le Prince unfortunately the screen shots don’t tell the whole story. Were the imported lines fair? Were there to many sections? Did they have to many points and so have to many defection points (think smoothing out a crumpled piece of paper). what is the Gaussian range set at (was auto range selected ?). Why not try to draw the lines in rhino first rather than adding the complexity of the file tranfer.

    TANSL likes this.
  3. LePrince
    Joined: Apr 2011
    Posts: 11
    Likes: 0, Points: 1, Legacy Rep: 10
    Location: Egypt

    LePrince Junior Member

    Dear Sir

    Thanks for your time ….as you said file transfer may cause problems.
    I noted that there are too many points on each curve
    I'm new with rhino that's why I preferred to skip drawing lines on Rhino and focus on surface creation, but if drawing lines on rhino will help, I can go back some steps and draw lines on rhino and try again and give feed back


  4. bhnautika
    Joined: Feb 2006
    Posts: 846
    Likes: 55, Points: 38, Legacy Rep: 571
    Location: australia

    bhnautika Senior Member

    LePrince investigate the rebuild command it may help you reduce the number of points in your lines, also the 2rail command adds points to the new surface as away of transitioning from one section to another along the rail lines. Use as little number of section as you can to get a smoother shape.
