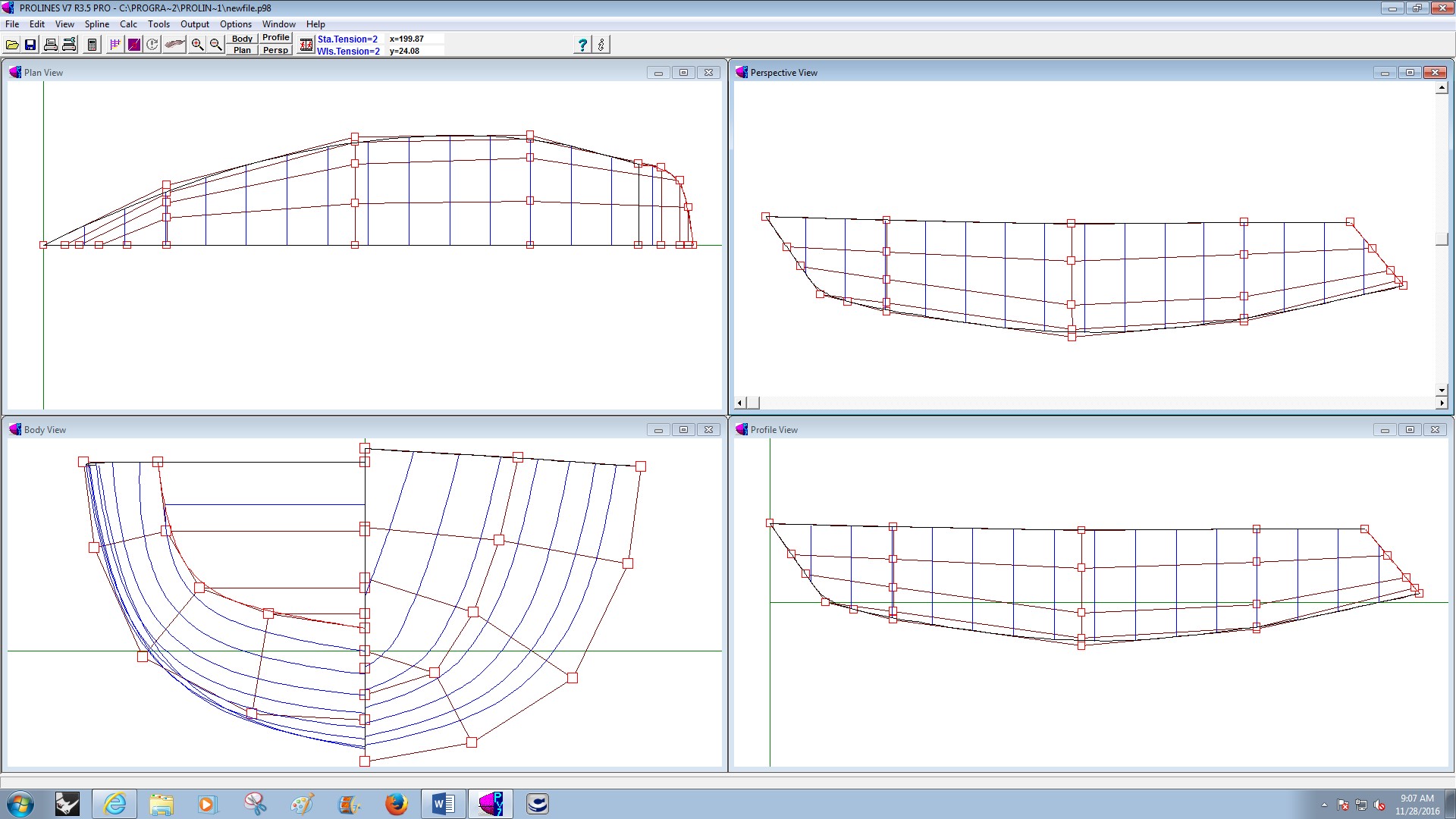

Boat Design Software with Good Stability Analysis

Discussion in 'Software' started by waynep, Sep 30, 2010.

  1. waynep
    Joined: Aug 2010
    Posts: 31
    Likes: 1, Points: 0, Legacy Rep: 11
    Location: United States

    waynep Junior Member

    I was wondering: what software, within the $1000 or less range, can provide good accurate Stability Calculation Results? As far as free software goes, Free!ship had a flaw in its Stability Calculation Results prior to Version 3.1+. Free!ship plus addressed the issue, but I find that Free!ship Plus crashes constantly. Also, whenever you start adding boat interior items such as the floor, bulkheads, etc., Free!ship's Stability Calcs go down the drain and the program crashes again. Does Delftship have this problem also? The free version of Delftship does not include any Stability Analysis. Is this one of those areas in Hull Design (Software) where the feature for excellent Stability Analysis just does not exist?

  2. b1ck0
    Joined: Mar 2010
    Posts: 128
    Likes: 3, Points: 18, Legacy Rep: 40
    Location: Varna/Hamburg

    b1ck0 Senior Member

    It may be a silly question but what exacly you want to calculate?
    Large angle stability, Upright Hydrostatics, KN values ... ?
    I think that RhinoMarine ( Rhino3D plugin ) can do such calculations.

  3. terhohalme
    Joined: Jun 2003
    Posts: 512
    Likes: 40, Points: 28, Legacy Rep: 506
    Location: Kotka, Finland

    terhohalme BEng Boat Technology

    Rhino3D is a good choice and easy to learn. But as all softwares Rhino needs a lot of practise to be effective. Been used it dayly about 10 years.
    http://www.rhino3d.com/

    I think Rhinomarine is now obsolete, the same programmers made Orca3D, whitch is also a Rhino3D plugin. Used Rhinomarine earlier, but now I am very satisfied with Orca3D. Exported files to Excel should be less "designed" though.
    http://www.orca3d.com/index.htm

    Terho

  4. pavel915
    Joined: Nov 2006
    Posts: 365
    Likes: 10, Points: 18, Legacy Rep: 154
    Location: Bangladesh

    pavel915 Senior Member

    OK,,,Let me suggest you a software which will give you good hydrostatics and stability withing a price of $1000
    It is Rhino+Archimedes

    From Rhino you can export a ghs file which can be read by Archimedes. Archimedes can do the cross curves for you. And once you have the cross curve you have to make a very little effort to make the GZ curve from the data of cross curve, as you know GZ=KN-KGXsin(angle-of-inclination)

    What rhino marine or Orca gives you is just GZ curve and some hydrostatic parameters, and those things you can get from Archimedes for free.

  5. pavel915
    Joined: Nov 2006
    Posts: 365
    Likes: 10, Points: 18, Legacy Rep: 154
    Location: Bangladesh

    pavel915 Senior Member

  6. waynep
    Joined: Aug 2010
    Posts: 31
    Likes: 1, Points: 0, Legacy Rep: 11
    Location: United States

    waynep Junior Member

    Accurate Cross Curves of Stability.

  7. waynep
    Joined: Aug 2010
    Posts: 31
    Likes: 1, Points: 0, Legacy Rep: 11
    Location: United States

    waynep Junior Member

    So, Rhino does not have Cross Curves of Stability built-in? I was aware of Archimedes Software, but did not realize the Rhino connection that was possible.

    Thank you for the info.

  8. pavel915
    Joined: Nov 2006
    Posts: 365
    Likes: 10, Points: 18, Legacy Rep: 154
    Location: Bangladesh

    pavel915 Senior Member

    no , rhino doesnt have cross cuves built in. If you need information regarding exporting your model to archimedes , then you can ask here.

  9. ontwerp
    Joined: Sep 2009
    Posts: 30
    Likes: 2, Points: 0, Legacy Rep: 36
    Location: Netherlands

    ontwerp Naval Architect

    Tried Delftship?

    If you are familiar with Freeship, why don't you try Delftship? It is the paid continuation of Freeship and has good stability results, plus you can buy the features in modules and just buy what you need.

  10. pavel915
    Joined: Nov 2006
    Posts: 365
    Likes: 10, Points: 18, Legacy Rep: 154
    Location: Bangladesh

    pavel915 Senior Member

    oh yes,If you are familiar with freeship then I do agree with ontwerp.

  11. pavel915
    Joined: Nov 2006
    Posts: 365
    Likes: 10, Points: 18, Legacy Rep: 154
    Location: Bangladesh

    pavel915 Senior Member

    waynep,
    Sorry I missed a very important point. If you can model the hull in freeship then you can export your file directly to archimedes by going to File>Export>Archimedes or File>Export>GHS , then you can have hydrostaic data and Cross curves. In freeship also you can make the cross curves.

    I told you earlier that how easily you can make the GZ curve from the Cross curves. So if it is OK for you , then the total cost for your stability calculation will be 0$

  12. waynep
    Joined: Aug 2010
    Posts: 31
    Likes: 1, Points: 0, Legacy Rep: 11
    Location: United States

    waynep Junior Member

    Appreciate everyone's help. I currently do use Free!ship, and am comfortable with it. I also have a copy of Archimedes but have not used it yet. You have the solution I was looking for at the moment. Many thank you's to all.

  13. pavel915
    Joined: Nov 2006
    Posts: 365
    Likes: 10, Points: 18, Legacy Rep: 154
    Location: Bangladesh

    pavel915 Senior Member

    If you need help regarding Archimedes then you can ask here. Its very easy.

  14. Martijn_vE
    Joined: Apr 2005
    Posts: 254
    Likes: 24, Points: 0, Legacy Rep: 401
    Location: Netherlands

    Martijn_vE Marine software developer

    Both Delftship and freeship can export to Archimedes and ArchimedesMB

    (Added: Oops, someone already posted a similar reply)


  15. MikeJohns
    Joined: Aug 2004
    Posts: 3,192
    Likes: 208, Points: 63, Legacy Rep: 2054
    Location: Australia

    MikeJohns Senior Member

    Just make sure the package is free to trim. Archimedes wasn't the last time I looked at it .

    Is freeship?
