New Wing Sail

Discussion in 'Multihulls' started by Manfred.pech, Apr 9, 2017.

  1. Manfred.pech
    Joined: Apr 2010
    Posts: 524
    Likes: 42, Points: 28, Legacy Rep: 319
    Location: EU

    Manfred.pech Senior Member

  2. Doug Lord
    Joined: May 2009
    Posts: 14,359
    Likes: 127, Points: 73, Legacy Rep: 1362
    Location: Cocoa Beach, Florida

    Doug Lord Flight Ready

    Reefble 360 degree Wingsail

    Thanks, Manfred-very interesting!

  3. upchurchmr
    Joined: Feb 2011
    Posts: 2,580
    Likes: 50, Points: 48, Legacy Rep: 579
    Location: Ft. Worth, Tx, USA

    upchurchmr Senior Member

    Very interesting.
    Any other details would be very much appreciated.

    It does look like a development system (they said so in the article).
    As such it looks like a significant reduction in sail area compared to a typical rig.
    Which is appropriate for development.

    There is always a question as to the relative performance (when they get finished).

  4. redreuben
    Joined: Jan 2009
    Posts: 1,500
    Likes: 34, Points: 48, Legacy Rep: 349
    Location: Beaconsfield Western Australia

    redreuben redreuben

    Electrickery and salt water aren't a good combination, besides, I like pulling strings. Looks good though, the second "mast" was something I looked at for the split rig idea, I thought it would be too hard to engineer, looks like I was wrong !

  5. Konstanty
    Joined: Mar 2016
    Posts: 50
    Likes: 1, Points: 8, Legacy Rep: 10
    Location: Bydgoszcz Poland

    Konstanty Junior Member

    I'm worried about wrinkles in the hypertension side.

  6. upchurchmr
    Joined: Feb 2011
    Posts: 2,580
    Likes: 50, Points: 48, Legacy Rep: 579
    Location: Ft. Worth, Tx, USA

    upchurchmr Senior Member

    What is a "hypertension side"?

  7. Konstanty
    Joined: Mar 2016
    Posts: 50
    Likes: 1, Points: 8, Legacy Rep: 10
    Location: Bydgoszcz Poland

    Konstanty Junior Member

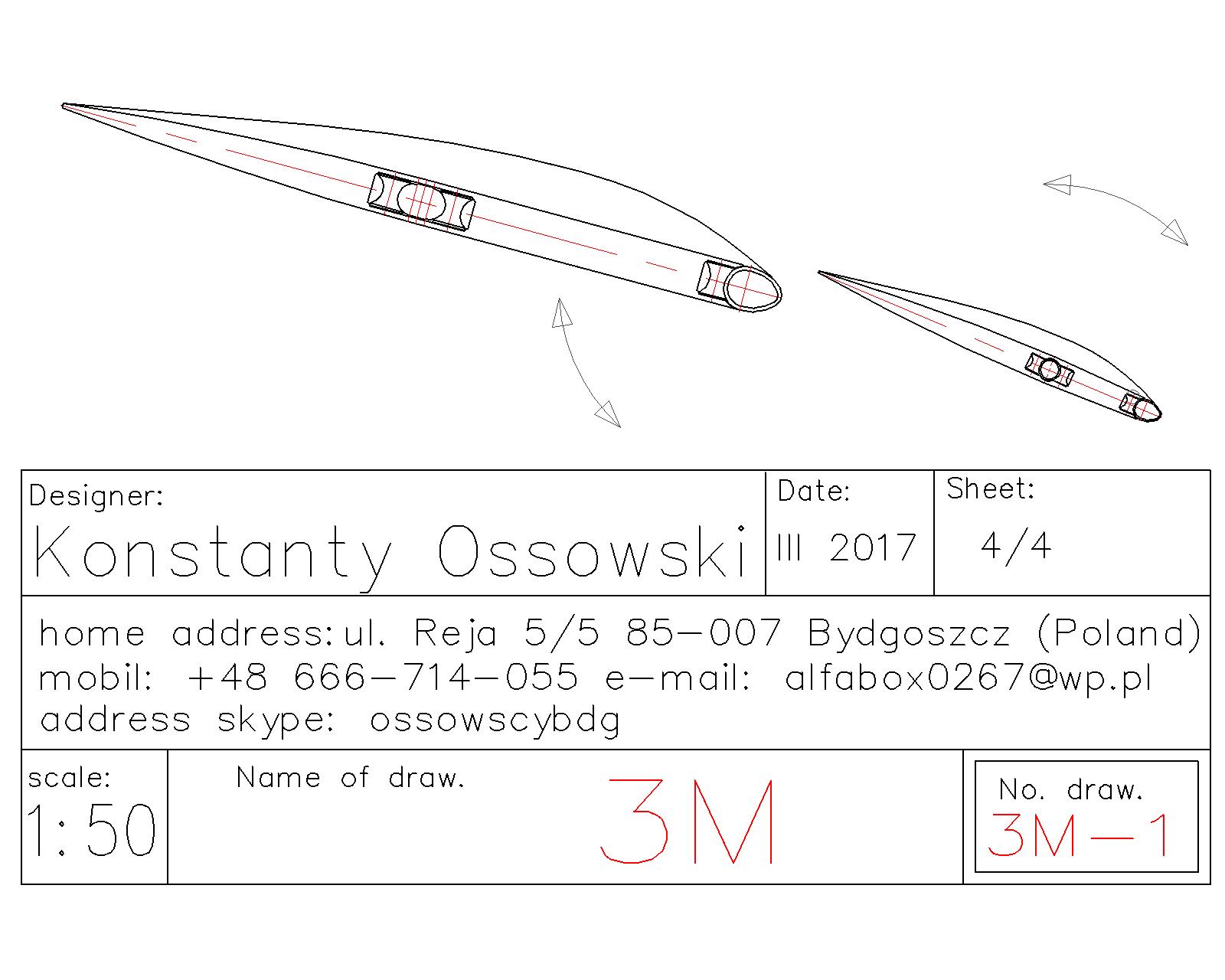

    This is windward side of wing sail. Look at drawing in attachment. There all with wrinkles should be OK.


    Attached Files:

    • 3M-4.jpg
      File size:
      177.1 KB
      Views:
      137
  8. bjn
    Joined: Jul 2014
    Posts: 101
    Likes: 1, Points: 18, Legacy Rep: 16
    Location: Stockholm

    bjn Senior Member

    I don't believe their claim of twice the aerodynamic efficiency.
    A sail of the same aspect ratio should not be far from its performance.

  9. redreuben
    Joined: Jan 2009
    Posts: 1,500
    Likes: 34, Points: 48, Legacy Rep: 349
    Location: Beaconsfield Western Australia

    redreuben redreuben

    Bjn,
    Agree.

  10. Tanton
    Joined: Nov 2003
    Posts: 992
    Likes: 14, Points: 28, Legacy Rep: 294
    Location: Newport RI

    Tanton Senior Member

    tantonyachtdesign.blogspot.com Search: From JR to Elia.
    Also on Boatdesign.net Tanton at the Design Gallery.

  11. Manfred.pech
    Joined: Apr 2010
    Posts: 524
    Likes: 42, Points: 28, Legacy Rep: 319
    Location: EU

    Manfred.pech Senior Member

    Yes, I miss the experiments or tests which prooved the assumtion.

  12. Ilan Voyager
    Joined: May 2004
    Posts: 1,103
    Likes: 62, Points: 48, Legacy Rep: 758
    Location: Cancun Mexico

    Ilan Voyager Senior Member

    VPLP do know their job. And their credits are impressive, they have designed more successful and innovative boats than any other NA office in the world in the history of yachting.
    It's simply the most advanced NA and engineering office of sail boats in the world. It's a big office now and they have always been very innovative, with a very scientific approach and data acquisition since more than 30 years.
    In the team there are top notch engineers in a lot of domains and they have a very vast web of consultants, independent and institutions. And they have access to very powerful tools for extremely complex calculations, plus wing tunnels and hydro. We are very far of the classic NA, compare more with aviation...
    Marc Van Peteghem is now very implied in sustainable development, new bio composites and so on.

    So the presentation of the sail is not dream, but a thing seriously designed. It's the prototype for the wings of a 88 m maxi trimaran yacht. You should read the wiki and I can tell you it's only part of their work...
    https://en.wikipedia.org/wiki/VPLP_design

    http://vplp.fr/en/informations-en/news-en.html

  13. John Perry
    Joined: Nov 2003
    Posts: 248
    Likes: 17, Points: 18, Legacy Rep: 129
    Location: UK

    John Perry Senior Member

    I think it is possible. I am assuming that by 'efficiency' they mean lift to drag ratio.

    If you do an internet search for 'forces on sails' or 'sail lift coefficient' you will probably find a wikipedia article with plots of lift and drag coefficient. The caption refers to a 'hypothetical sail', and there is also a plot relating to wind tunnel tests carried out by Gustave Eiffel in the early part of the last centuary. From this, information, albeit ancient and limited information, it would seem that the best lift to drag ratio for conventional sails is around 8:1. Doubling that would mean 16:1. Lift and drag data for aerofoils that are not a single sheet is far more widely available and better verified than that for 'soft' sails and it is well known that lift to drag ratios can exceed 16:1.

    I think the lift coefficient at which the sail or wing is operating is also relevant. Wing sails have an advantage over 'soft' sails at low lift coefficient partly because the drag of the standing rigging and mast is present at all lift coefficients and partly because soft sails loose their shape at low angle of attack. At higher lift coefficient induced drag increases for both sails and wings, presumably reducing the advantage of a wing.

    As it happens, over the past few weeks I have written my own software for predicting the performance of sailing boats. My main purpose in this is to compare performance with various configurations of lifting hydrofoil and for that purpose I dont think I need highly refined rig data, I just need a reasonably representative set of data that I can use with alternative hull and foil arrangements to estimate comparative performance. There is still a lot I would like to do on this, but I have got as far as producing one set of polar plots of boat speed for a trimaran with and without lifting hydrofoils. The rig data I have used is based on the data from wikipedia but I would like to see some better substantiated data with details of the rig it was measured on and the measurement method - the note on Wikipedia that the data is for a 'hypothetical sail' of unspecified type and size does not inspire confidence. So, can anyone here point me to lift and drag data for real rigs with 'soft' sails? Or for that matter CFD results. I know that CFD work is being done in this field but I guess it is commercially motivated so we probably dont get to see the results.

    1 person likes this.
  14. Manfred.pech
    Joined: Apr 2010
    Posts: 524
    Likes: 42, Points: 28, Legacy Rep: 319
    Location: EU

    Manfred.pech Senior Member

    Thank you John for your explanation. Have you seen this: http://www.boatdesign.net/forums/sailboats/lift-drag-coefficients-sails-foils-1253.html and http://www.boatdesign.net/forums/sailboats/windsurf-sail-lift-drag-vs-alpha-25992.html ?


  15. Ilan Voyager
    Joined: May 2004
    Posts: 1,103
    Likes: 62, Points: 48, Legacy Rep: 758
    Location: Cancun Mexico

    Ilan Voyager Senior Member

    The difference of efficiency is easily explainable.The wing, which can rotate on 360 degrees an important point, is a high lift configuration composed of 2 wings with a variable slot, or if you prefer a main wing with a flap. It's similar to the high lift devices found on a Boeing.
    You can camber the wing as you want and insure with the slot an energetic ventilation of all the extrados side, plus an optimal orientation of the whole wlng to the apparent wind. The profiles are specially designed for the task, including the vibrating surface of the cloth which has very interesting effects on the drag.

    Add the facts that the wing is rectangular, without the losses of a triangular sail. Add that the profiles are good all along the wing with the right twist, and that the wing works in a clean air flow as there are no cables nor spreaders. And last but not the least there are also 2 extremities plates.

    Plus some work in wind tunnel and simulations on a big fast computer, you can determine the optimized set of configurations of the variables; total camber, slot opening and final orientation to the apparent wind and you make it automatic. In fact you create a configuration map like in the EPROM of a computer injection metering on an engine but happily that can simply be done with a mechanical system.
    All that has been done before on the Class C catamarans and Amrica's Cup. The difference is that the VPLP wing is reefable.

    The efficiency coefficient of 2 is rather conservative.
