New 25M Motoryacht design any takers?

Discussion in 'Boat Design' started by raffshore, Nov 28, 2018.

  1. raffshore
    Joined: Nov 2008
    Posts: 43
    Likes: 1, Points: 8, Legacy Rep: 17
    Location: belgium

    raffshore Junior Member

    Just wanted to share my passe time and passion.
    Aluminium build
    Choice of displacement, semi planing or planing hull
    Currently working on the interior

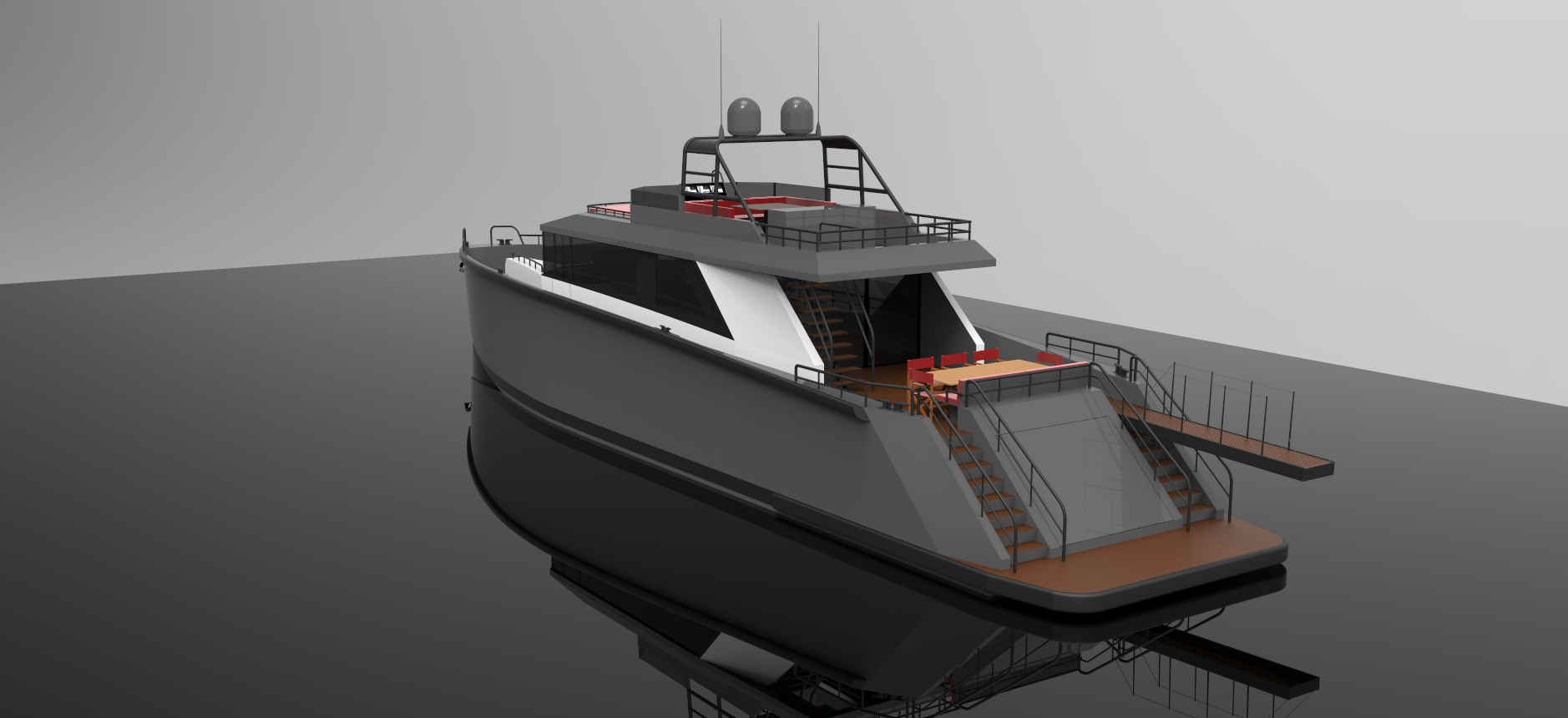

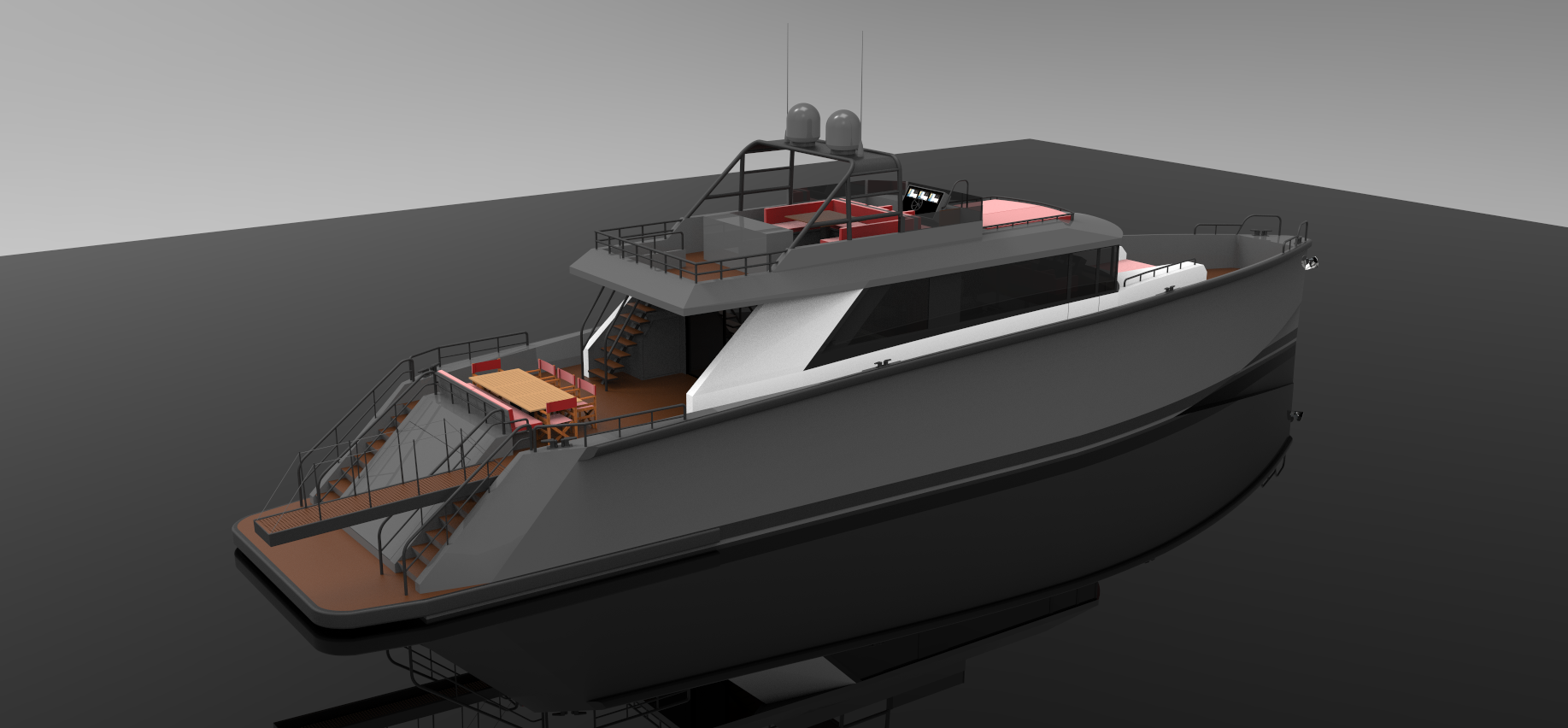

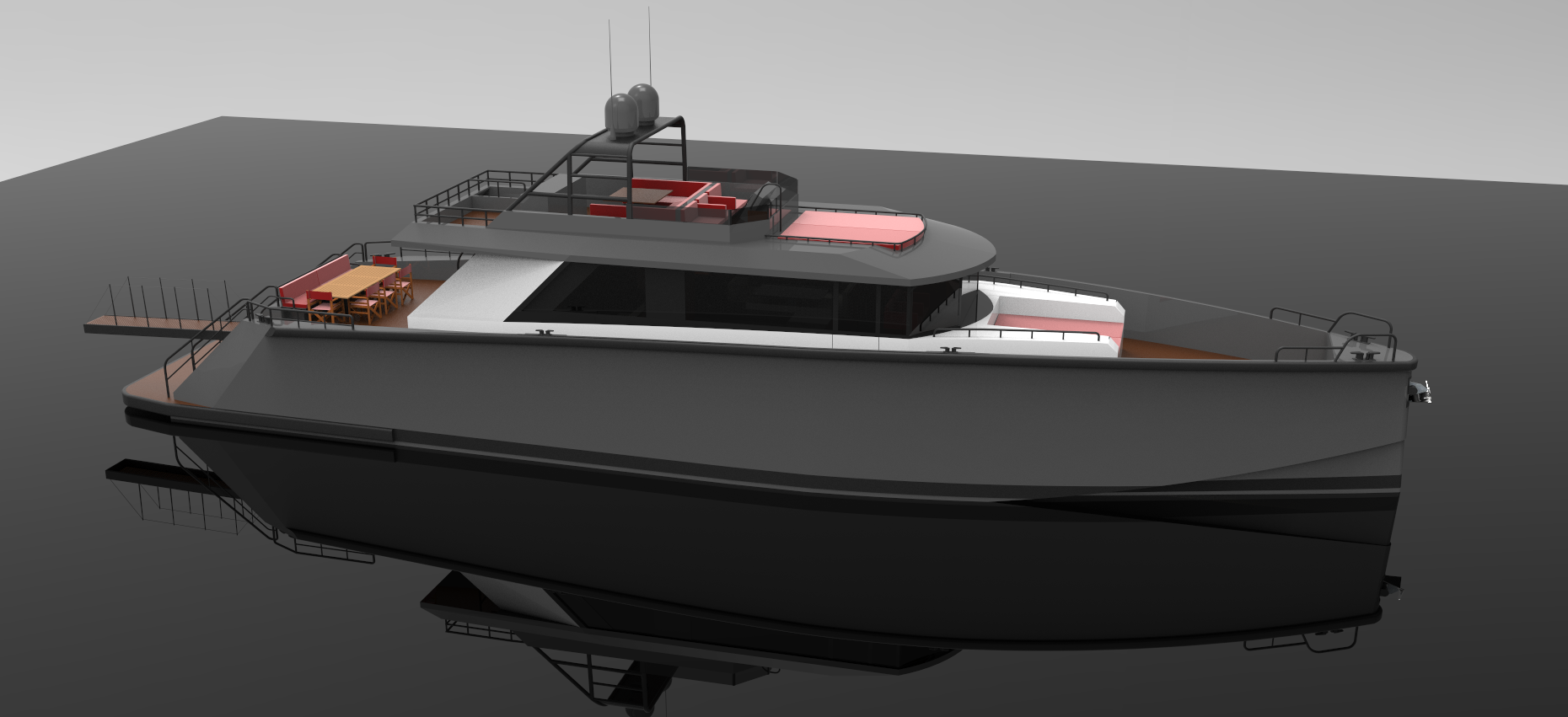

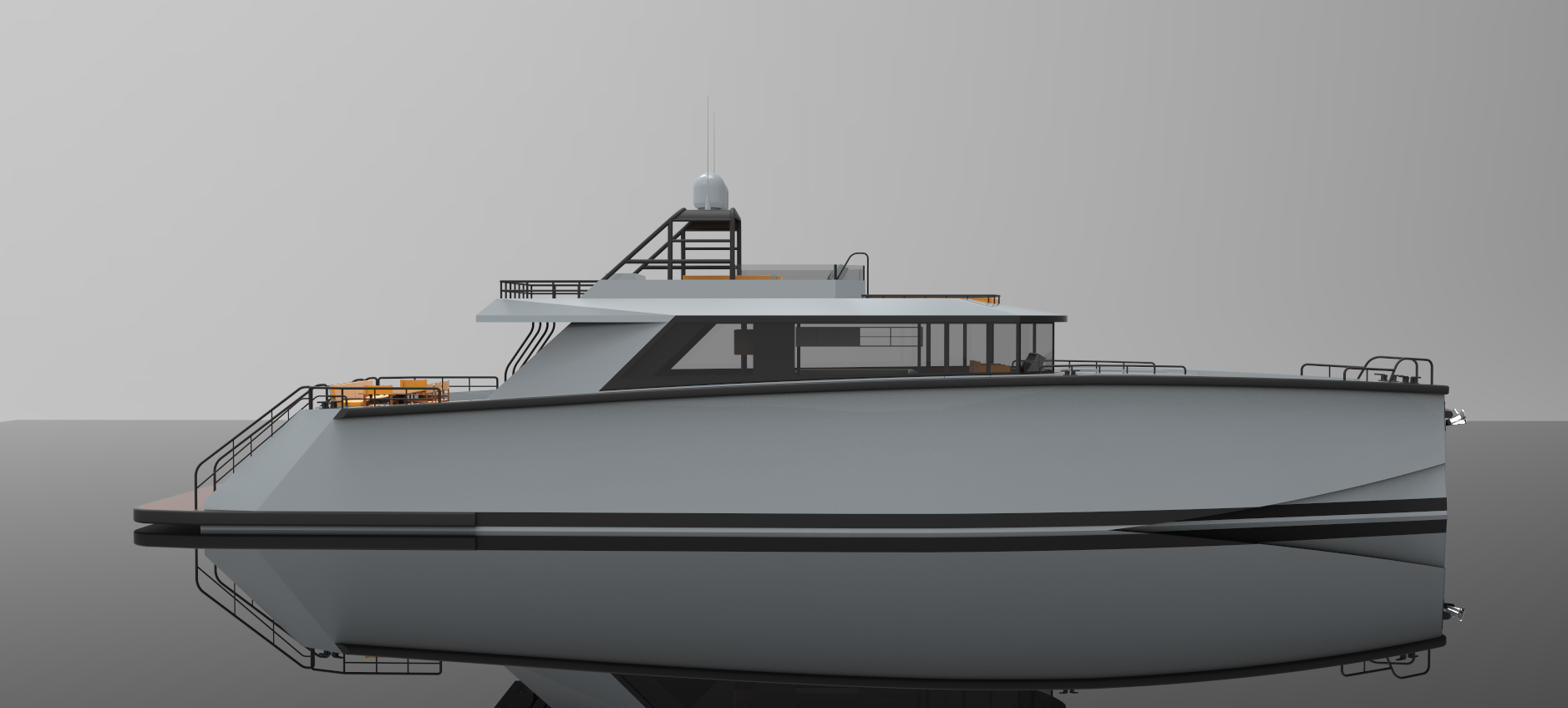

    Drawings in Sketchup and rendering in Keyshot...


    Attached Files:

  2. Squidly-Diddly
    Joined: Sep 2007
    Posts: 1,296
    Likes: 31, Points: 48, Legacy Rep: 304
    Location: SF bay

    Squidly-Diddly Senior Member

    Stairs to Nowhere under diving board?

    I'd lose the 45' angle on rear PWC storage hatch, extend it back and drop 90' vertical. That way the outside dining table deck gets bigger, too. Have the rear storage hatch open from 90' to level 0' for walking headroom shade/overhead lights of swim deck, and also extension of dining area.

    Run two horizontal poles above fly-bridge to carry sunshade or even enclosed fabric.

  3. raffshore
    Joined: Nov 2008
    Posts: 43
    Likes: 1, Points: 8, Legacy Rep: 17
    Location: belgium

    raffshore Junior Member

    Sounds like a good idea.
    not a diving board but passerelle :)
    Poles good idea rear and front

    thanks for the input


    Attached Files:

  4. DCockey
    Joined: Oct 2009
    Posts: 4,037
    Likes: 156, Points: 63, Legacy Rep: 1485
    Location: Midcoast Maine

    DCockey Senior Member

    Any naval architecture / engineering, or is this about appearance only?

  5. tz3dcom
    Joined: Jul 2006
    Posts: 102
    Likes: 5, Points: 28, Legacy Rep: 22
    Location: china

    tz3dcom Trump yacht

    I also feel the flybrigde too short ,a yacht in this size should has a dinghy deck to carry the dinghy.

  6. upchurchmr
    Joined: Feb 2011
    Posts: 2,739
    Likes: 72, Points: 48, Legacy Rep: 579
    Location: Ft. Worth, Tx, USA

    upchurchmr Senior Member

    Illustration I'd bet.
    If you have a choice of semi planing or planning means its just a picture.

    Pammie and kerosene like this.
  7. raffshore
    Joined: Nov 2008
    Posts: 43
    Likes: 1, Points: 8, Legacy Rep: 17
    Location: belgium

    raffshore Junior Member

    It has a 30 square meter garage for 2 jetski's and a 5m rib. I think it doesn't look clean with a dinghy on the deck but that is personal

    Why is that? everything under the water line can be changed so easily. Included the analysis from volvo penta on a 15m I did for a customer and for this one I used the same hull.


    Attached Files:

  8. raffshore
    Joined: Nov 2008
    Posts: 43
    Likes: 1, Points: 8, Legacy Rep: 17
    Location: belgium

    raffshore Junior Member

    deck layouts


    Attached Files:

  9. tz3dcom
    Joined: Jul 2006
    Posts: 102
    Likes: 5, Points: 28, Legacy Rep: 22
    Location: china

    tz3dcom Trump yacht

    Do you have a lowdeck plan with engine room and dinghy store layout ? I also find out the hull without any portlight so your boat without the accommodation in lower deck ?

  10. tz3dcom
    Joined: Jul 2006
    Posts: 102
    Likes: 5, Points: 28, Legacy Rep: 22
    Location: china

    tz3dcom Trump yacht

    the engine room under the dinghy room ? not sure if it's enough to arrange in height.

  11. raffshore
    Joined: Nov 2008
    Posts: 43
    Likes: 1, Points: 8, Legacy Rep: 17
    Location: belgium

    raffshore Junior Member

    Yes dinghy room is at the same level as the under deck.
    Portlight I still have to be decided yes
    I am sure it has, when I start drawing I always start by setting the heights to be sure all fits. I have everywhere 2100 mm head room in this one and enough room for engines

  12. raffshore
    Joined: Nov 2008
    Posts: 43
    Likes: 1, Points: 8, Legacy Rep: 17
    Location: belgium

    raffshore Junior Member

    measurements


    Attached Files:

  13. raffshore
    Joined: Nov 2008
    Posts: 43
    Likes: 1, Points: 8, Legacy Rep: 17
    Location: belgium

    raffshore Junior Member

    TZ3D you make nice designs, if it would ever become a project I would contact you for the interior

  14. tz3dcom
    Joined: Jul 2006
    Posts: 102
    Likes: 5, Points: 28, Legacy Rep: 22
    Location: china

    tz3dcom Trump yacht

    Ok , You are welcom ,thanks


  15. kapnD
    Joined: Jan 2003
    Posts: 371
    Likes: 13, Points: 18, Legacy Rep: 40
    Location: hawaii, usa

    kapnD Senior Member

    Hello, earth calling!
