Modern Catboat interpretation

Discussion in 'Sailboats' started by valery gaulin, Jun 30, 2018.

  1. valery gaulin
    Joined: Jan 2017
    Posts: 215
    Likes: 20, Points: 18, Legacy Rep: 7
    Location: Montréal

    valery gaulin Senior Member

    Here is my mordern interpretation for a catboat hull.
    This is the link to the Fusion 360 viewer. This way you can get a good 3D view.

    A360 https://a360.co/2yZivQ2

    Lenght: 26 foot
    Beam: 13 foot
    draft: 2 foot
    Displacement : 10 500 lbs aproximatly

    The reccess in the bilge of the hull is to permit standing headroom without having a too high cabin.

    valery gaulin, Jun 30, 2018
    #1
  2. valery gaulin
    Joined: Jan 2017
    Posts: 215
    Likes: 20, Points: 18, Legacy Rep: 7
    Location: Montréal

    valery gaulin Senior Member

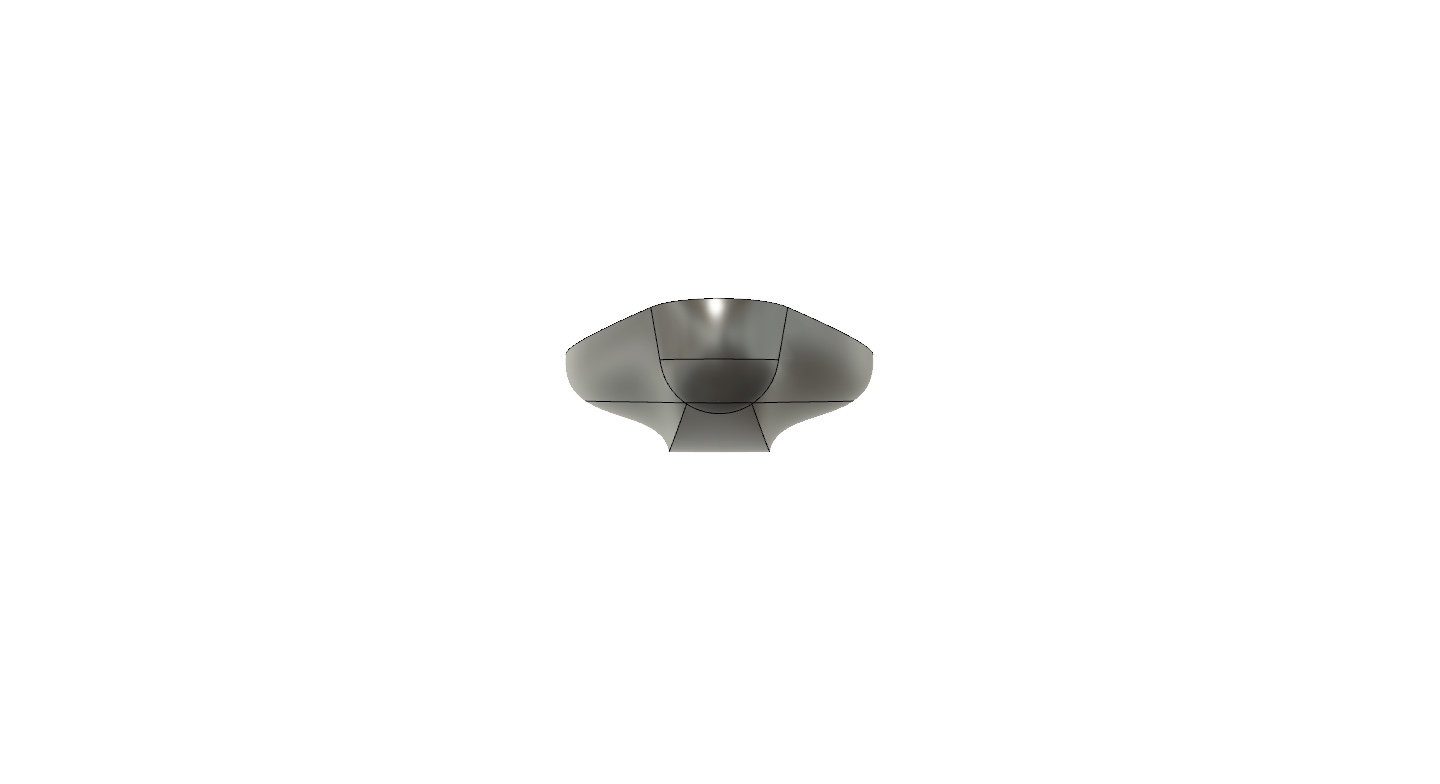

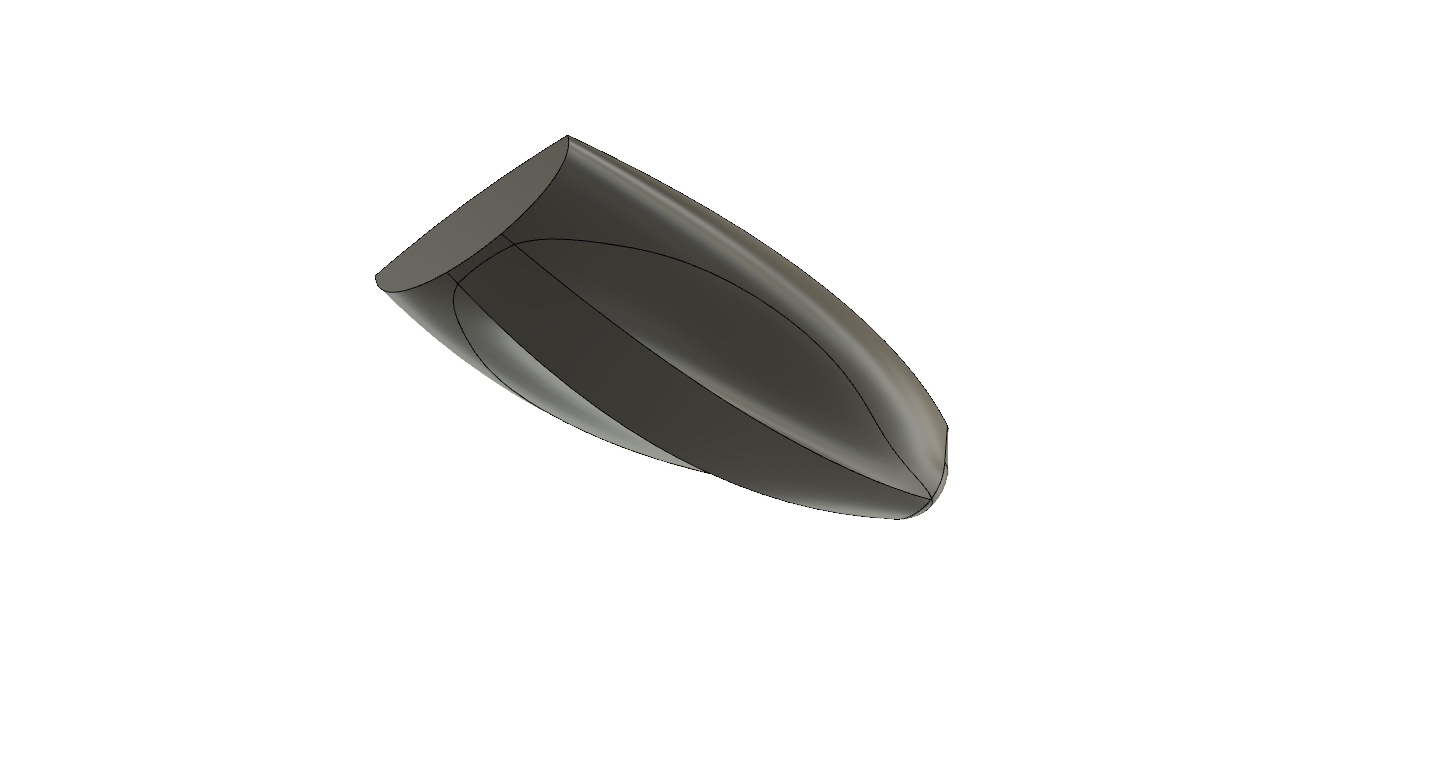

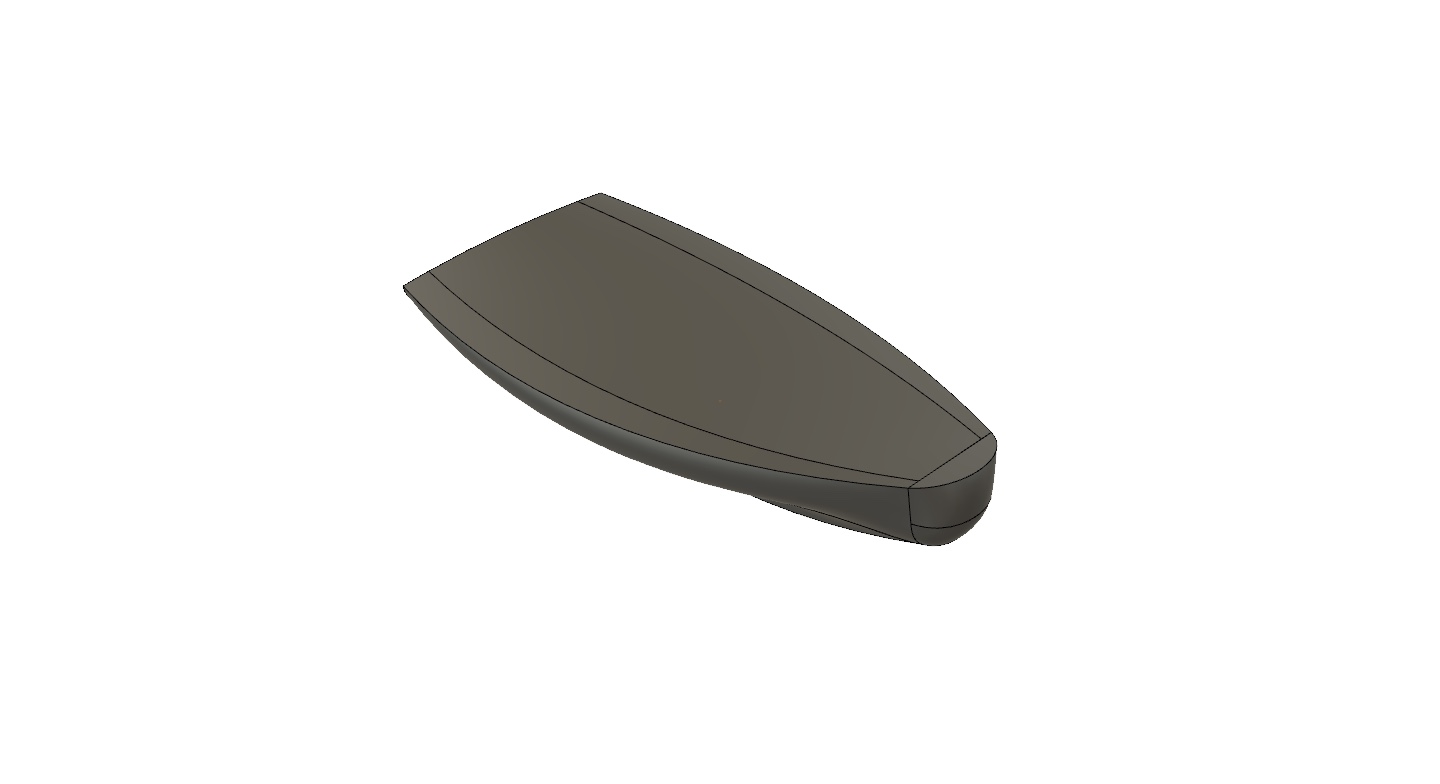

    Here are some screen shot for the one that can't see the link above.


    Attached Files:

    valery gaulin, Jun 30, 2018
    #2
