Layup help

Discussion in 'Fiberglass and Composite Boat Building' started by fallguy, Jul 2, 2020.

  1. fallguy
    Joined: Dec 2016
    Posts: 3,344
    Likes: 440, Points: 93, Legacy Rep: 10
    Location: usa

    fallguy Senior Member

    I want to lay the pictured plug up with some red carbon fiber. I don't know how to deal with the bend or the corners. Obviously, I need radiuses and glue/fills.

    I also want the bottom edges to look nice and am looking for advice on how to laminate the thing so I can bolt it on top of a flat surface and it looks professional.

    I can wet bag it. The plug stays in place. This is a binnacle mount.

    thanks for any; gonna google a bit as well A10F38DB-FE03-423E-A301-EBA847F2E331.jpeg

  2. hoytedow
    Joined: Sep 2009
    Posts: 5,653
    Likes: 272, Points: 93, Legacy Rep: 2489
    Location: North of Cuba

    hoytedow Bananas

    Will it have a flange around the base perimeter?

  3. hoytedow
    Joined: Sep 2009
    Posts: 5,653
    Likes: 272, Points: 93, Legacy Rep: 2489
    Location: North of Cuba

    hoytedow Bananas

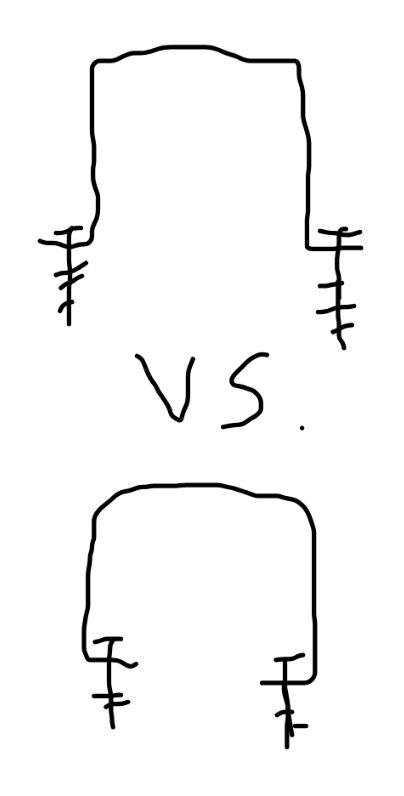

    Screenshot_20200702-104641~2.png The flange could be internal on a gasket to hide it and the fasteners.

  4. hoytedow
    Joined: Sep 2009
    Posts: 5,653
    Likes: 272, Points: 93, Legacy Rep: 2489
    Location: North of Cuba

    hoytedow Bananas

    Are the plug fastenings ferrous?
    Will they throw off the compass reading?

  5. SamSam
    Joined: Feb 2005
    Posts: 3,900
    Likes: 196, Points: 63, Legacy Rep: 971
    Location: Coastal Georgia

    SamSam Senior Member

    Rather than try and make that thing work as a plug and then make a mold that would have to be cleaned up and then make a part, it would be better to make a quick, temporary mold of something like formica, fill the corners with modeling clay or and then make a part that could be easily cleaned up. Use an inside flange with bolts or screws from underneath to secure it. It would be basically what you have, just that thing turned over and the binnacle mount laminated inside after the clay or moldmaking corner wax was applied.

    DogCavalry and hoytedow like this.
  6. fallguy
    Joined: Dec 2016
    Posts: 3,344
    Likes: 440, Points: 93, Legacy Rep: 10
    Location: usa

    fallguy Senior Member

    yes, the plan is the 2nd sketch u did

  7. fallguy
    Joined: Dec 2016
    Posts: 3,344
    Likes: 440, Points: 93, Legacy Rep: 10
    Location: usa

    fallguy Senior Member

    not following you at all. I want the high density material to both bolt on the binnacle and the inside flange to bolt to the dash/helm area

    I want to know if my carbon will lay down nice is all. The carbon is not doing any work here; just for looks.

  8. fallguy
    Joined: Dec 2016
    Posts: 3,344
    Likes: 440, Points: 93, Legacy Rep: 10
    Location: usa

    fallguy Senior Member

    just mounting the engine control head on the large flat section

    the carbon is jist for looks

  9. SamSam
    Joined: Feb 2005
    Posts: 3,900
    Likes: 196, Points: 63, Legacy Rep: 971
    Location: Coastal Georgia

    SamSam Senior Member

    I misunderstood. Since you said a plug I thought you were making a mold for a fiberglass compass binnacle.

    fallguy likes this.
  10. fallguy
    Joined: Dec 2016
    Posts: 3,344
    Likes: 440, Points: 93, Legacy Rep: 10
    Location: usa

    fallguy Senior Member

    Anyone know if the carbon will make the bend or another option?

  11. KeithO
    Joined: Jul 2019
    Posts: 240
    Likes: 37, Points: 28
    Location: Michigan

    KeithO Senior Member

    If you buy this kit at aircraft spruce COMPOSITE MATERIALS PRACTICE KIT | Aircraft Spruce https://www.aircraftspruce.com/catalog/cmpages/practicekit.php?clickkey=7080381
    It contains all the materials and a manual and you have some book ends for a book shelf, but they were designed in such a way that it covers every aspect of fiberglass layup including covering internal and external corners, lapped joints with peel ply etc etc. Its actually pretty demanding to make properly, but if you follow the directions you will learn a lot of the technique that you need to know. $118 for the kit and manual. Cheap education

  12. ziper1221
    Joined: May 2018
    Posts: 28
    Likes: 5, Points: 3
    Location: florida

    ziper1221 Junior Member

    What about prelaminating the carbon on a layup table, and then adhering it to the part in the same way you would do a wood veneer?

  13. upchurchmr
    Joined: Feb 2011
    Posts: 3,058
    Likes: 155, Points: 63, Legacy Rep: 579
    Location: Ft. Worth, Tx, USA

    upchurchmr Senior Member

    You need 1/4" to 3/8" minimum radius for the graphite to turn the corner, either inside or outside radius's.
    That assumes it is not too thick. Since it is decorative you can go pretty thin.
    You are going to have difficulty where the side meets the bottom and the face. Difficult to make that look nice.
    You might practice before you commit to the final product.
    Don't leave any open gaps in the box like you show. The graphite will sag into the gap and make it look bad.

    What is "red" graphite?

    Aren't you going to need a door to access the insides to bolt/ screw on the mount?

  14. fallguy
    Joined: Dec 2016
    Posts: 3,344
    Likes: 440, Points: 93, Legacy Rep: 10
    Location: usa

    fallguy Senior Member

    No open gaps. We just didn't get all the fill and radius work done as I was worried about the vee shape.

    Red carbon.

    And you are wise! I have access to the inside via a helm access door in the shower so plan to cut a small hole and bolt and 4200 this thing on.



    hoytedow likes this.

  15. fallguy
    Joined: Dec 2016
    Posts: 3,344
    Likes: 440, Points: 93, Legacy Rep: 10
    Location: usa

    fallguy Senior Member

Loading...
