Illegal connectivity error in Ansys AQWA

Discussion in 'Hydrodynamics and Aerodynamics' started by Hamza Asif, Apr 11, 2024.

  1. Hamza Asif
    Joined: Apr 2024
    Posts: 4
    Likes: 0, Points: 1
    Location: Norway

    Hamza Asif New Member

    Hi,

    I am a beginner to Ansys AQWA and performing a hydrodynamic simulation for floating spar platform but i have recieved an error while solving the simulation setup for pressures and motions result.
    Error description: ILLEGAL CONNECTIVITY. Element 18882 is joined to element 25371 and element 27404.

    I need some help if anyone has experienced this error or know how to resolve this.

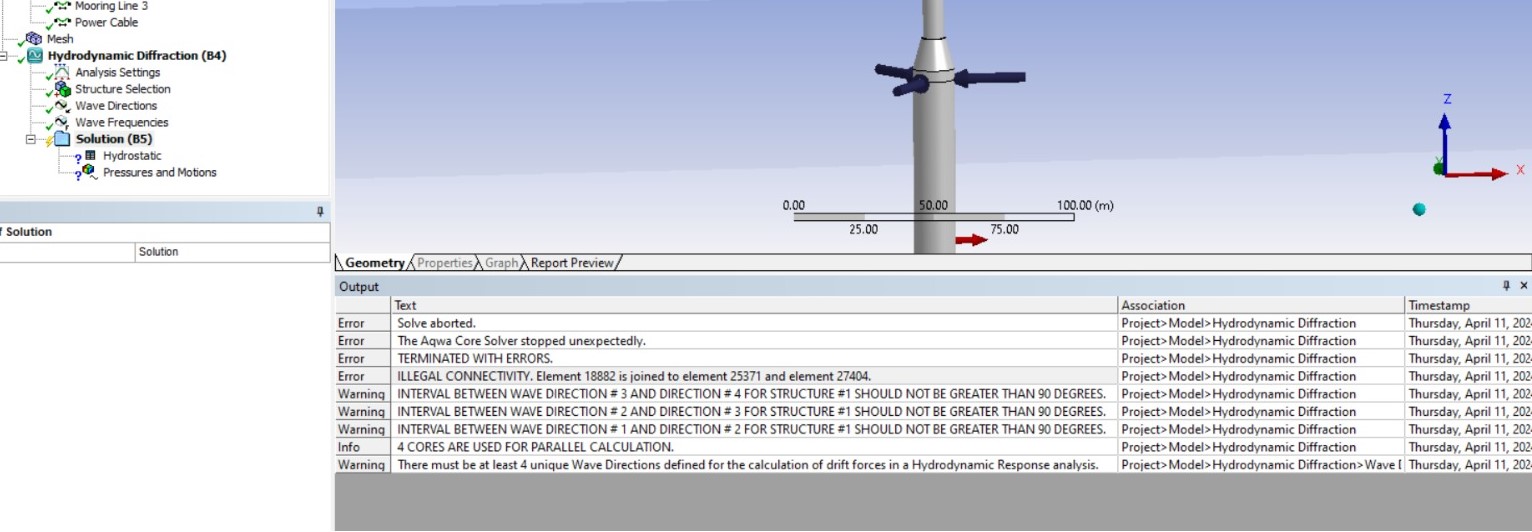

    Your help would be highly appreciated. Picture is attached for your reference.


    Attached Files:

  2. Ad Hoc
    Joined: Oct 2008
    Posts: 7,808
    Likes: 1,703, Points: 113, Legacy Rep: 2488
    Location: Japan

    Ad Hoc Naval Architect

    Can you define what are the elements used in question at: 18882, 25371 and 27404

  3. Hamza Asif
    Joined: Apr 2024
    Posts: 4
    Likes: 0, Points: 1
    Location: Norway

    Hamza Asif New Member

    are you talking about element types? if yes then I used tetrahedron elements with a global meshing of relatively smaller size 0.05meters.


  4. Ad Hoc
    Joined: Oct 2008
    Posts: 7,808
    Likes: 1,703, Points: 113, Legacy Rep: 2488
    Location: Japan

    Ad Hoc Naval Architect

    Are all 3 elements noted above, the same element type?
