Finding optimal propeller dimension based on ships speed and hull resistance

Discussion in 'Hydrodynamics and Aerodynamics' started by Simme_swede, Apr 2, 2024.

  1. Simme_swede
    Joined: Apr 2024
    Posts: 5
    Likes: 0, Points: 1
    Location: Sweden

    Simme_swede Junior Member

    Hi


    I’m researching for my thesis on how to find the optimal propeller for an electrified version of a current boat. What I have: Hull resistance, weight, speeds of the vessel.


    My thoughts of process:

    I know the resistance of the boat, therefore I also know at least how much thrust I need to propel the boat. But how does torque come into play? How can I calculate the required torque needed to go 5 and 8 knots? '


    Any help is appreciated

    Simon & Fredrik

  2. hashtag_laeuft
    Joined: Aug 2017
    Posts: 34
    Likes: 12, Points: 8
    Location: Hamburg

    hashtag_laeuft Junior Member

    Hi Simon & Fredrik,

    the torque highly depends on the size of the propeller and if it is designed for high or low RPM. As you know from your bicycle you need more torque to climb a hill with a high gear as compared to small gear.
    So very important is also the specification of your engine.

    To have a good starting point for your propeller design I would recommend you to have a look into the Wageningen B Series.
    There is also an onlinge propeller generator -> Home https://www.wageningen-b-series-propeller.com/

    This might give you a good idea of which information are required to find a suitable propeller .. at least a first shot.

    Best regards
    Nicolas

  3. Simme_swede
    Joined: Apr 2024
    Posts: 5
    Likes: 0, Points: 1
    Location: Sweden

    Simme_swede Junior Member

    Thank you for the fast answer!


    A part of our question for the thesis is to also select a suitable DC engine. We are aiming to preserve as much current as possible but we are limited to stay under 60v. Preferably low RPM, since voltages are often linear with the rpm.





    We are somewhat using this model as an example, excluding the gearbox.

    Would it be a good starting point to find the minimum power needed for the propeller to achieve 8 knots?

    We have a datasheet of a current combustion engine that is in the boat right now.



    The boat guy that gave us the job says that it achieves 5 knots on 2-2.5 k RPM and 8 knots around 3 k RPM.

    Is it a good aiming point for us to go for the same torque used by the diesel engine or does it change due to the fact that we have a DC engine?

    The DC engine can have lower RPM with just as much torque, therefore my thoughts are that the propeller can be shaped quite differently compared to the combustion engine.

  4. hashtag_laeuft
    Joined: Aug 2017
    Posts: 34
    Likes: 12, Points: 8
    Location: Hamburg

    hashtag_laeuft Junior Member

    Hi ..

    it all depends on the size of the propeller. The torque of a propeller is related to the diameter with the power of FIVE.
    So, if the geometry of the boat, position / inclination of the shaft & the tip clearance (min distance between propeller tip and the hull) would allow a bigger propeller, you could aim for a slightly bigger one, in order to reduce the rpm.

    The question is, if you are looking for a theoretical specification of a new propeller to include that in your thesis, if you would have the possibility to manufacture a newly designed propeller or if you need to know best suitable specifications to choose the right stock propeller.

    As I said, as a starting point you can check the wageningen b series, in order to get a first impression of what would be possible. Or similar propeller series.
    Please find attached a document with the Kt, Kq and Efficiency curves of the b series propellers.

    Kt (thrust coefficient), Kq (torque coefficient) and J (advance coefficient) are your best friends in order to find a suitable propeller for your project. They are explained in the introduction on page 13 of the document.


    Best regards
    Nicolas


    Attached Files:

  5. jmwoodring
    Joined: Apr 2012
    Posts: 31
    Likes: 3, Points: 8, Legacy Rep: 10
    Location: Texas

    jmwoodring Junior Member

  6. jehardiman
    Joined: Aug 2004
    Posts: 3,789
    Likes: 1,182, Points: 113, Legacy Rep: 2040
    Location: Port Orchard, Washington, USA

    jehardiman Senior Member

    Welcome to the Forums.

    As Nicolas implies, all the data you have shown so far really doesn't show the total picture. Is the existing diesel grared to the propeller shaft? What is the existing propeller? If the diesel is not geared, the data indicates that the existing propeller is small, shaft speed is high, and therefore the slip is large. This is inefficient. Most electric launches in the speed range you ask for have historically had large slow turning propellers (typically something like a B 2.30 or B 3.30 from the referenced paper). Therefore you should enter this exercise with the largest diameter you can fit into the hull form.

    Additionally, you need to understand how power is transferred from the motor to the water. It is a function of how a boat draws power, a propeller delivers it, and a motor provides it.
    (NAs out there, let us keep it simple ...OK)

    Boats need horsepower as thrust (T) at speed (V). This is effective horsepower required (ehp =(T*V)/550 with T in lbs, V in ft/sec)
    Propellers produce T as a function of blade area (A), diameter (D) and pitch (P) times propeller rps (n) when there is slip (s), i.e. slip ratio s=1-(V/n*P). Think of a large s as a large angle of attack of the propeller blade.

    Propeller absorb horsepower as a function of Torque (Q) and n, where Q is a function of A, D, and s. This is the delivered horsepower (dhp = (Q*n*2*pi)/550)
    Motors provide horsepower as a function of motor torque (q) and rpm. This is shaft horsepower. (shp = (q*rpm)/5252)
    Because n and rpm are locked by gearing (if any), the torque (q/Q) relationship is the inverse of the gear ratio (60*n/rpm) = (q/Q).
    And typically shp>dhp>ehp where dhp = 0.95*shp and ehp = 0.75 dhp (or greater for larger D and lower n).

    So to produce an exact T at an exact V, there are many combinations of D, P, A, and n.
    However at any P, the n interacts with the V to generate a specific s, which sets Q....larger s, larger Q
    Given Q for that specific A, D, P, s and n then the motor q output for that combination of n and rpm needs to exactly match, or exceed the required Q, this is called the operating point.
    1) Too little motor torque, and the motor slows down (i.e. "lug" or overload the motor) until a) the Q is supportable, or b) you stall the motor.
    2) Too much motor torque and the propeller speeds up (i.e. the motor over speeds) until either a) the motor control design limits n, b) s and Q increase to match motor output, or c) the prop tears the water apart and the prop fully cavitates in which case Q falls to effectively zero and the motor runs away.
    3) Increase the A, D, or P, you increase the Q at a given n, see 1)
    4) Decrease the A, D, or P, you decrease the Q at a given n, see 2)

    Rather than use the Kt, Kq charts referenced by hashtag_laeuft; you might consider using the older Bp-delta form of the data which allows you to calculate optimum propeller diameter for a given propeller type and desired operational point. Some of these (a B 2.38 and 3.50) can be found in the 1966 edition of Principles of Naval Architecture or many more in the original Netherlands Ship Model Basin work (i.e. the Wageningen/Troost series "Open Water Test Series with Modern Propeller Forms").

    Edit to add: BP-delta Chart | PDF | Propeller | Aerospace Engineering https://www.scribd.com/document/489717128/BP-delta-Chart

    BlueBell, Ad Hoc and bajansailor like this.
  7. Ad Hoc
    Joined: Oct 2008
    Posts: 7,807
    Likes: 1,703, Points: 113, Legacy Rep: 2488
    Location: Japan

    Ad Hoc Naval Architect

    To add to JEH's excellent summary.

    Once you read JEH's post you'll understand that there is no such thing as "optimal", other than in the minds of managers or students.
    Why?..because it this "condition" (the one being seeked) can only be true at one point in time at one condition, one speed, one rpm etc etc.
    Once any of the multitude of variables is changed - which it shall - it is no longer working at its "optimal" design point - it has moved from said minima/maxima.
    Ergo, it is no longer at "optimal".

    That should really be the thrust (no pun intended) for your thesis.
    Demonstrating the number of variables that come into play and hence - what is optimal?

    Jimboat and BlueBell like this.
  8. BlueBell
    Joined: May 2017
    Posts: 2,715
    Likes: 986, Points: 113
    Location: Victoria BC Canada

    BlueBell . . . _ _ _ . . . _ _ _

    The "best" compromise, perhaps?

  9. Ad Hoc
    Joined: Oct 2008
    Posts: 7,807
    Likes: 1,703, Points: 113, Legacy Rep: 2488
    Location: Japan

    Ad Hoc Naval Architect

    Do you mean..."best" or "compromise"..?

    Im now wholly sure either would be appropriate replacements.
    I just think such issues can be better framed than "optimal", is it gives a false sense of what is really happening and/or being achieved.
    Engineering and design across multiple disciplines cannot be boiled down to a one liner as a 'justification' or 'result'....

  10. baeckmo
    Joined: Jun 2009
    Posts: 1,671
    Likes: 678, Points: 113, Legacy Rep: 1165
    Location: Sweden

    baeckmo Hydrodynamics

    Simon/Fredrik, at what institution do you study, and what is the level of your thesis? I'm asking, because the answers to your quest depend on that. Although I concur with the recommendation to start with the "classical" Bp charts, there is a better way once you get the hang of it. As noted above, there are many factors to deal with, and you have to understand what happens at off-design conditions. I strongly recommend that you read the following article:

    "Small-Craft Power Prediction" by Donald L. Blount and David L. Fox. It was published in MARINE TECHNOLOGY Vol 13, No 1, Jan 1976, pp 14-45. Years ago, it was available from the library at Chalmers uni Gothenburg.

    By using the suggested format there (Kt/J^2), the dominant design driving factor; the diameter, is boiled down to a simple function of (thrust/speed^2). The efficiency can be plotted as function of Kt/J^2 for each blade area ratio ("BAR"), pitch/diameter ratio and cavitation condition, and you can select what level of compromize in efficiency you have to accept to cover the necessary operating conditions. For electrical propulsion with energy storage in batteries, the efficiency is the primary operational driving factor, and you will most probably select from low BAR, say ~0,5 to 0,65, and sigma ("cavitation number") atmospheric (or maybe ~2).

    That gives the diameter required for the conditions, and the efficiency. Since the effective power is (roughly, to keep it simple): thrust * speed of advance/efficiency; you have the shaft power. And since you have : Kt=T/(density*N^2*D^4), you have the shaft speed (N), and from the power/(shaft rotational speed) you get the required torque. Just remember using the correct dimensional system all the way!

    DogCavalry likes this.
  11. rwatson
    Joined: Aug 2007
    Posts: 6,166
    Likes: 495, Points: 83, Legacy Rep: 1749
    Location: Tasmania,Australia

    rwatson Senior Member

    Although this is a Model Building Exercise, it mentions several software tools that would be helpful


  12. Simme_swede
    Joined: Apr 2024
    Posts: 5
    Likes: 0, Points: 1
    Location: Sweden

    Simme_swede Junior Member

    Hi! Sorry for the afk.

    We are studying at Halmstad University and it is a bachelor thesis in mechatronics. We have made quite the progress!

    We are using a research paper to modell our simulink. The paper is called: THE ANALYSIS OF OVERALL SHIP FUEL CONSUMPTION IN ACCELERATION MANOEUVRE USING HULL-PROPELLER-ENGINE INTERACTION PRINCIPLES AND GOVERNOR FEATURES

    If you look at page 8 we are trying to mirror thier modell with an exception of the diesel engine part. Due to lack of resources.

    However, we are currently having a new problem. The modell runs, and gives no errors but it gives the wrong awnser. The boat we tested have a 20kW engine, 3600 max rpm and max 54 Nm. We drove the boat at 8 knots and recorded the rpm which was 2500. The motor also runs a gearbox 2.05:1, making the propeller turn slower.

    Now when we enter it in our modell with the motor at a setpoint of 2500 rpm, we get way too much thrust and torque at the propeller. But when we run the motor at a setpoint of 1000 rpm, we get quite near our recorded data. Our mentor thinks that there is something wrong with the thrust and torque coefficents. We are no sure either.

    Our mentors best thought about the system being wrong is that the power generated by the motor is smaller than the power outbut of the boat.

    Another question for those who knows about ratios on propellers. We have this propeller on our boat: 16" x 12" upload_2024-4-26_19-57-19.png

    In the datasheet for the propeller it reads as above:

    Our formula for getting the thrust and torque coefficents have Expanded area ratio as one of its inputs. In the datasheet we only have Blade surface area. Is it the same as BAR? Or DAR? We need to figure it out.

    If someone is curious about seeing the simulink modell or wants help us, we could arange a zoom meeting or something online. Due to one part of the simulink being a matlab script given to us by the writers of the paper, we were not allowed to share the code.

    Kind regards
    Simon and Fredrik

  13. hashtag_laeuft
    Joined: Aug 2017
    Posts: 34
    Likes: 12, Points: 8
    Location: Hamburg

    hashtag_laeuft Junior Member

    Hi ...

    A_0
    The "disc area" is the area of the circle you would get if you attached a pen to the tip of a blade and turned it around a full circle. By the way, propellers are often modelled as "disc actuators".

    A_P
    If you look along the shaft axis, you can only see the "projected outline" of the blades. Since the blades are angled differently along the radius, the projections do not match the real chord length of the blade sections.

    A_E
    The pitch of a propeller is normally that of the section at r = 0.7 R. And as you know, the pitch angles of the sections vary from root to tip. If you were to model or build the propeller with zero pitch on all sections, you would see the so-called "expanded outline".

    A_D
    The developed area is the actual area of the blades, so in your case it would be the blade surface area, I guess.

    These areas are calculated using all the blades except the propeller hub.

    If you relate these areas to the disc area A_0, you get the corresponding ratios.

    Note that there are propellers with area ratios greater than 1. For example, water jet impellers or some submarine propellers which have many highly skewed and overlapping blades to minimise propeller noise.

    See Carlton, J.S.: Marine Propellers and Propulsion

  14. baeckmo
    Joined: Jun 2009
    Posts: 1,671
    Likes: 678, Points: 113, Legacy Rep: 1165
    Location: Sweden

    baeckmo Hydrodynamics

    This was your original question, and it was answered in the posts 6 and 10, but obviously you did not use the insights provided. A quick check on your results, assuming a standard 3-blade prop with BAR 0.55 and wake factor 0.95, gives a required power of ~12.5 kW and a thrust of ~1780 N. Now this is right on the spot on the power diagram you provided, which tells me that you did not bother about reading the reference litterature to get a basic understanding of propulsion principles. The propeller is not correctly selected for matching the motor characteristics to the hull requirements.

    My comment here may sound a bit harsh, but if we just do the calcs for you, you will not have learned anything from the excercise, so please do your homework first, then we can lead you to the next step.

    BTW, has the beer pipeline from the Three Hearts brewery to the campus been built yet???


  15. Simme_swede
    Joined: Apr 2024
    Posts: 5
    Likes: 0, Points: 1
    Location: Sweden

    Simme_swede Junior Member

    Hi, it's completely fine to be harsh, sometimes you need it. I read the reference once quickly, without really wanting to understand because we already had made a lot of progress on one path and I was wishing for it to work.

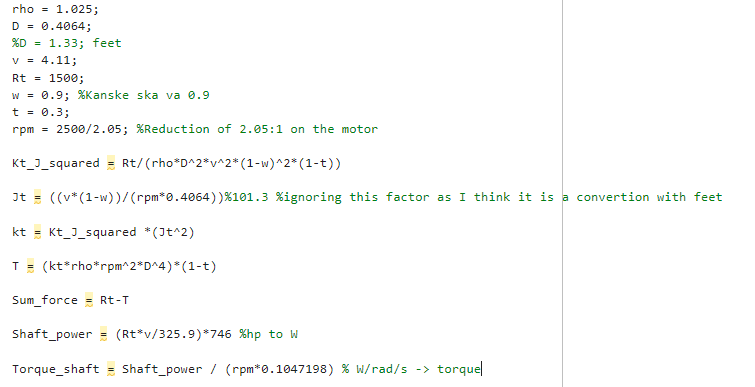

    However I read the paper again and tried again on a matlabscrip, this is what i did:
    Ps. Instead of 0.95 as wake factor we choose 0.54 from a the paper. THE ANALYSIS OF OVERALL SHIP FUEL CONSUMPTION IN ACCELERATION MANOEUVRE USING HULL-PROPELLER-ENGINE INTERACTION PRINCIPLES AND GOVERNOR FEATURES



    Just a quick check if it is worth time exchanging a big part of our simulink, and for this method the math works. Which is really good, so thank you for suggesting this method. We are going to try to implement it in our simulink now!

    And no, unfortunately, there was no pipeline from 3 hearts made :( But there is a lot of cheap Åbro :)

    Kind regards,
    Simon & Fredrik


    Attached Files:

Loading...
