Exhaust Outlet at Waterline

Discussion in 'Inboards' started by stevemk, May 23, 2016.

  1. stevemk
    Joined: May 2016
    Posts: 4
    Likes: 0, Points: 0, Legacy Rep: 10
    Location: Santa Fe, New Mexico

    stevemk New Member

    I have a new Rescue Minor diesel powered inboard runabout. This unit uses the typical water cooled exhaust system. In the particular implementation of this water cooled exhaust the line runs from the exhaust manifold, down at a sharp angle to a muffler and then at a declining angle to the transom exhaust fitting very much as demonstrated in this image:
    [​IMG]

    My question is about the height of the exhaust outlet at the transom above water line. Presently, the bottom of the 2" exhaust outlet is just 3/4" below static water line. The placement of the outlet was such to allow for a natural drop in the exhaust hose to allow water to drain out exhaust outlet when at rest.
    Is the placement of the exhaust outlet so close to the water line at rest a problem?

  2. TANSL
    Joined: Sep 2011
    Posts: 5,929
    Likes: 240, Points: 73, Legacy Rep: 300
    Location: Spain

    TANSL Senior Member

    Sure there may be problems. What system is to prevent seawater from entering the exhaust pipe?

  3. gonzo
    Joined: Aug 2002
    Posts: 13,967
    Likes: 490, Points: 93, Legacy Rep: 2031
    Location: Milwaukee, WI

    gonzo Senior Member

    That is pretty typical. The section of pipe forward of the Y is a surge protector. You could install flaps to help prevent backflow when going in reverse.

  4. TANSL
    Joined: Sep 2011
    Posts: 5,929
    Likes: 240, Points: 73, Legacy Rep: 300
    Location: Spain

    TANSL Senior Member

  5. PAR
    Joined: Nov 2003
    Posts: 19,133
    Likes: 473, Points: 93, Legacy Rep: 3967
    Location: Eustis, FL

    PAR Yacht Designer/Builder

    I don't see anything wrong with the above diagram. Exhaust exits can be anywhere, though at or near the LWL tends to keep the pipe cool and can soften noise if positioned right.

  6. TANSL
    Joined: Sep 2011
    Posts: 5,929
    Likes: 240, Points: 73, Legacy Rep: 300
    Location: Spain

    TANSL Senior Member

    Nobody says that the diagram has something wrong. I simply miss some element that prevents seawater back flow.

  7. FAST FRED
    Joined: Oct 2002
    Posts: 4,519
    Likes: 109, Points: 63, Legacy Rep: 1009
    Location: Conn in summers , Ortona FL in winter , with big d

    FAST FRED Senior Member

    The usual solution is a nice 90deg bend aiming the exhaust at the water.

    Slowing down the 90 will go submerged , but will not pump water up to the exhaust manifold.

  8. TANSL
    Joined: Sep 2011
    Posts: 5,929
    Likes: 240, Points: 73, Legacy Rep: 300
    Location: Spain

    TANSL Senior Member

  9. gonzo
    Joined: Aug 2002
    Posts: 13,967
    Likes: 490, Points: 93, Legacy Rep: 2031
    Location: Milwaukee, WI

    gonzo Senior Member

    There is a surge pipe in the diagram

  10. stevemk
    Joined: May 2016
    Posts: 4
    Likes: 0, Points: 0, Legacy Rep: 10
    Location: Santa Fe, New Mexico

    stevemk New Member

    What if there were no surge pipe in the installation?

  11. gonzo
    Joined: Aug 2002
    Posts: 13,967
    Likes: 490, Points: 93, Legacy Rep: 2031
    Location: Milwaukee, WI

    gonzo Senior Member

    Then the safety margin will be less.

  12. whitepointer23

    whitepointer23 Previous Member

    I have owned several inboards with exhaust submerged up to a ft under water when stationary and they only had rubber outlet flaps. I have never had a problem.

  13. whitepointer23

    whitepointer23 Previous Member

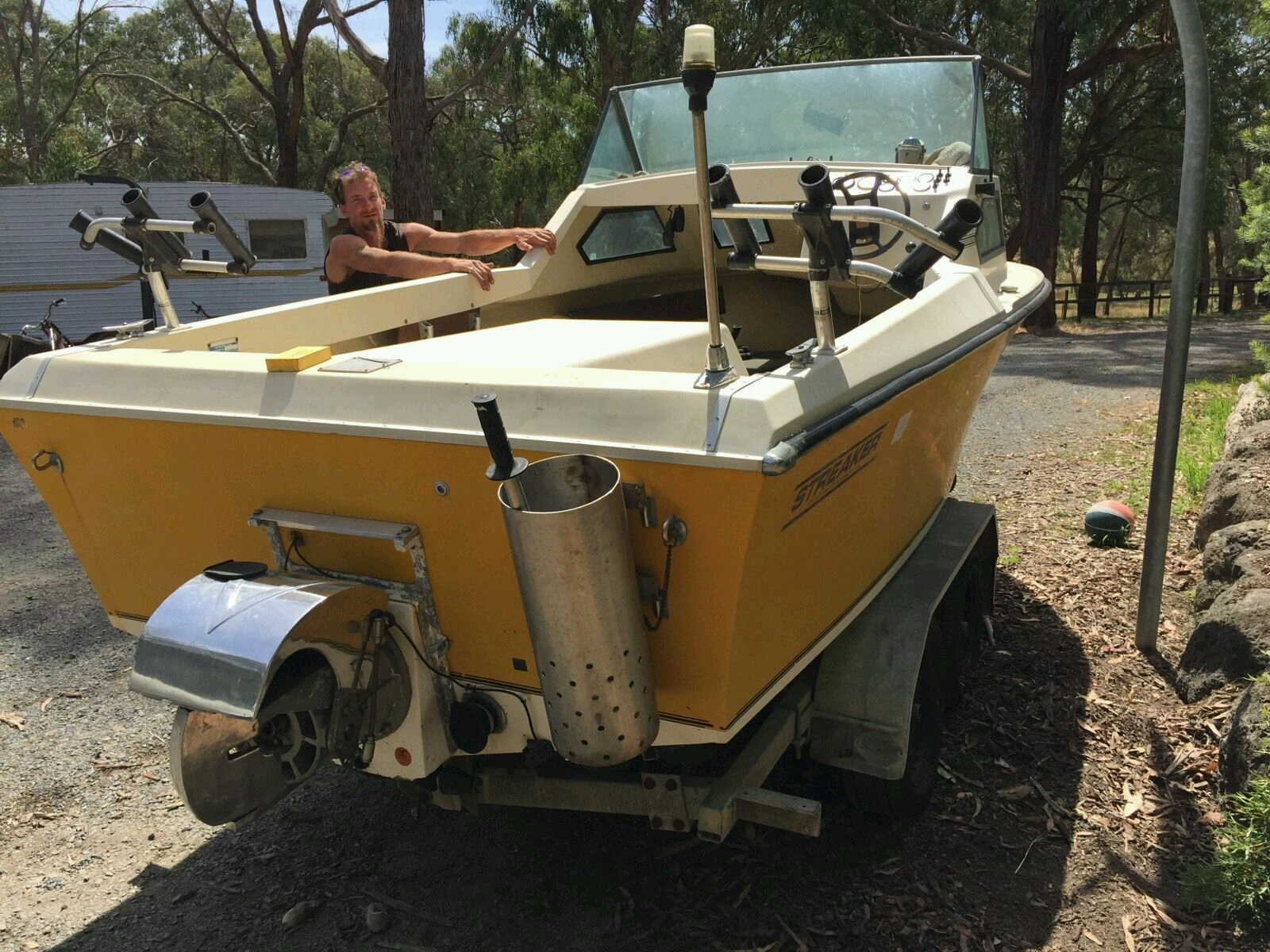

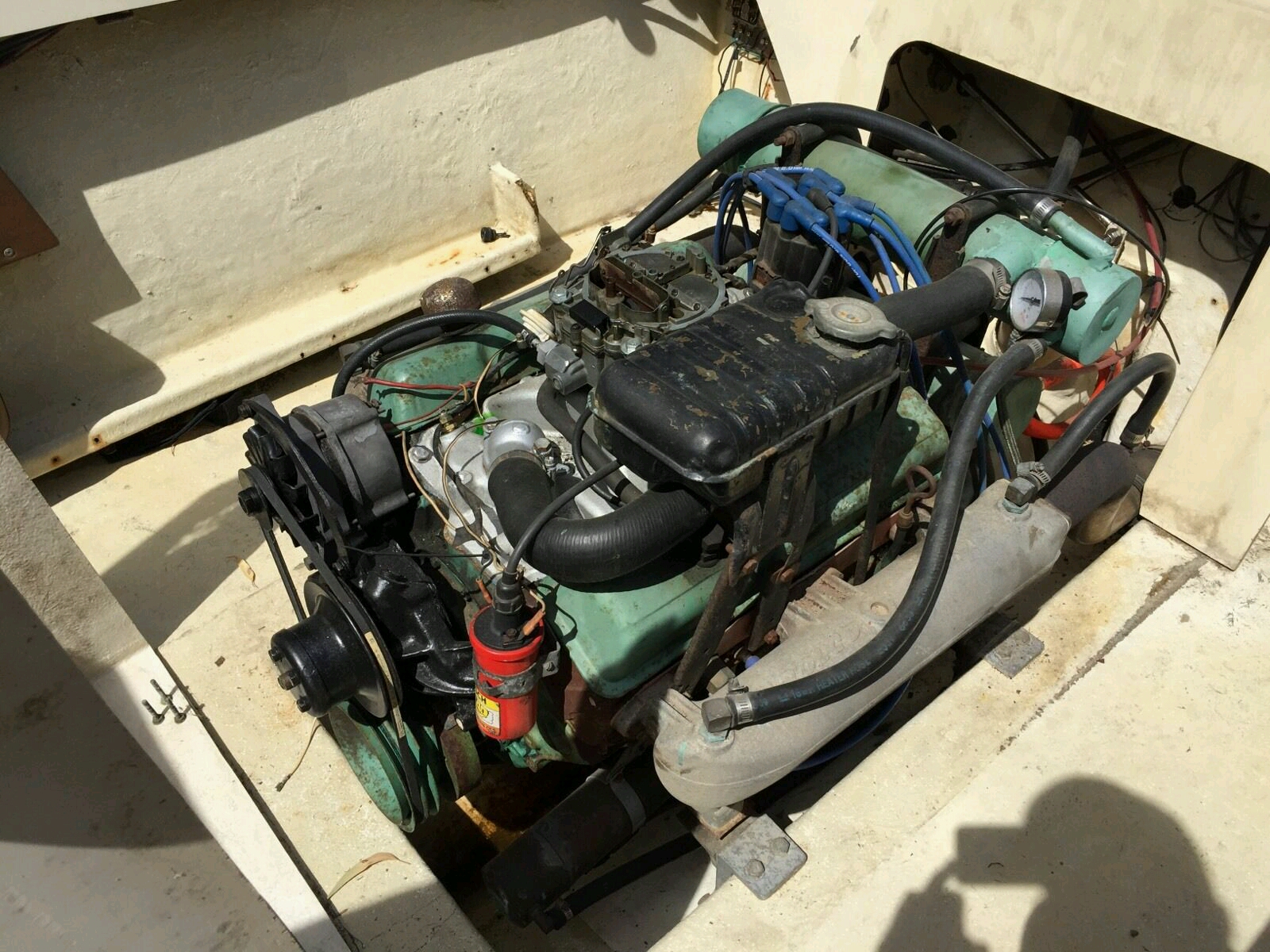

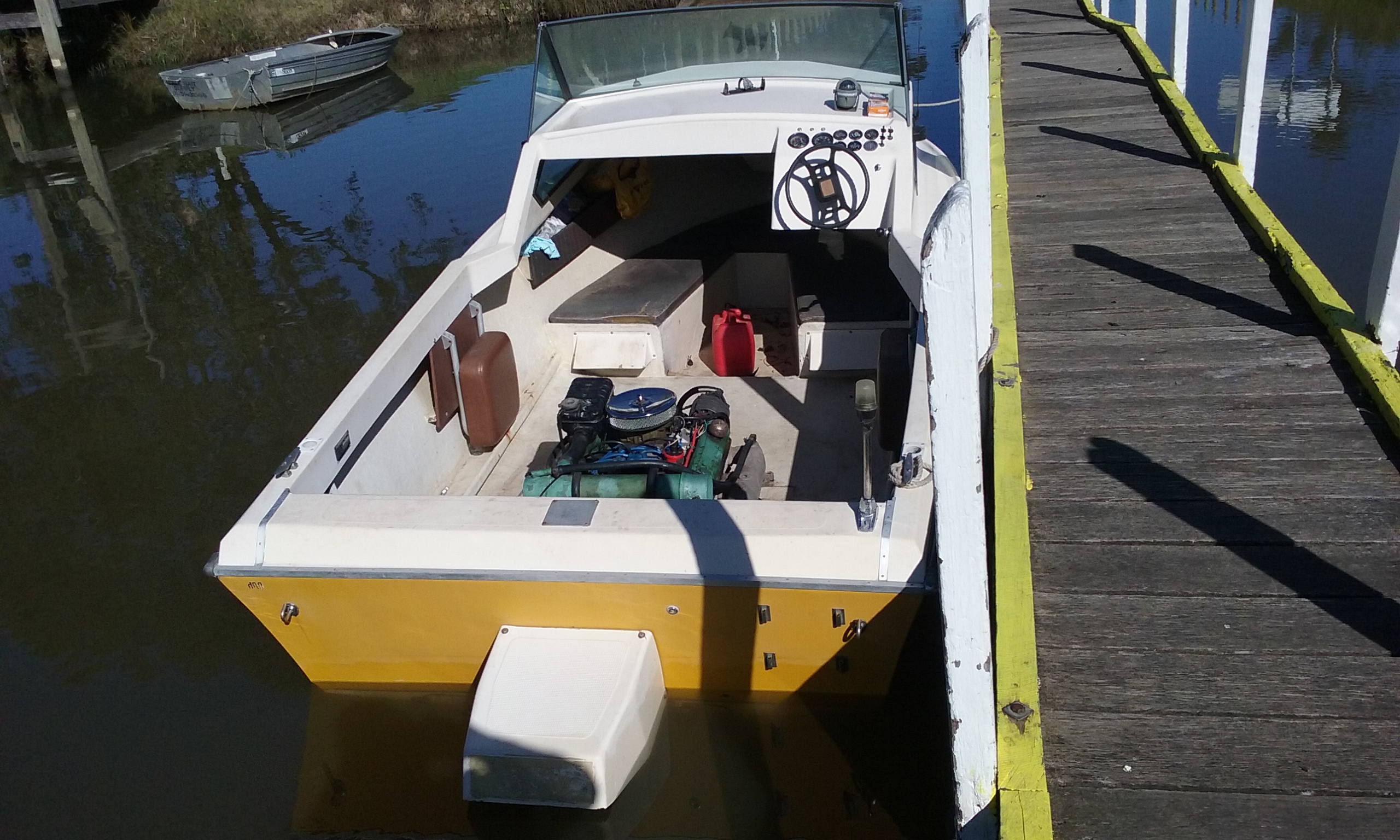

    This one has the outlets right near the bottom and the manifolds have no risers or surhe pipes.


    Attached Files:


  14. PAR
    Joined: Nov 2003
    Posts: 19,133
    Likes: 473, Points: 93, Legacy Rep: 3967
    Location: Eustis, FL

    PAR Yacht Designer/Builder

    The Rescue Minor is a pretty shallow hull, so the slope down to the transom needs to be as exaggerated as practical. Flaps work well as does a surge chamber. Is this a straight shaft setup?
