Compartmentation of a SWATH vessel

Discussion in 'Boat Design' started by eddiezhong, Apr 30, 2018.

  1. eddiezhong
    Joined: Apr 2018
    Posts: 9
    Likes: 0, Points: 1
    Location: Singapore

    eddiezhong Junior Member

    Hi, I am currently designing a SWATH vessel on MAXSURF, and I want to do the damage stability check. However, my compartments seem wrong to me. Can anyone tell me what is wrong with my model? Thanks A lot. upload_2018-4-30_18-31-30.png

  2. TANSL
    Joined: Sep 2011
    Posts: 5,065
    Likes: 112, Points: 73, Legacy Rep: 300
    Location: Spain

    TANSL Senior Member

    At first glance there seems to be a lot of bad things in the starboard hull. The best thing is to erase it and define all surfaces of the port hull as symmetrical.
    If you load the .msd file it will be easier for us to analyze what happens in your model.

  3. eddiezhong
    Joined: Apr 2018
    Posts: 9
    Likes: 0, Points: 1
    Location: Singapore

    eddiezhong Junior Member

    Hi, Thank you for your response, I did my model in rhino and converted it to MAXSURF, it seems to have some problem, but I can't really identify it because I am really new at this software.


    Attached Files:

  4. TANSL
    Joined: Sep 2011
    Posts: 5,065
    Likes: 112, Points: 73, Legacy Rep: 300
    Location: Spain

    TANSL Senior Member

    I'm sorry but even I can not open the file with Maxsurf. Maybe it's a more advanced version than 14, which is what I have.
    Could you load the Rhino file?

  5. eddiezhong
    Joined: Apr 2018
    Posts: 9
    Likes: 0, Points: 1
    Location: Singapore

    eddiezhong Junior Member

    Sorry, I dun know what version of maxsurf I am using, here is my rhino file.
    Thank you.


    Attached Files:

  6. TANSL
    Joined: Sep 2011
    Posts: 5,065
    Likes: 112, Points: 73, Legacy Rep: 300
    Location: Spain

    TANSL Senior Member

    I have exported the model, in .igs format, to Maxsurf, without any problem.


    Attached Files:

  7. eddiezhong
    Joined: Apr 2018
    Posts: 9
    Likes: 0, Points: 1
    Location: Singapore

    eddiezhong Junior Member

    Thank you so much, so can I use this model to run maxsurf stability test?

  8. TANSL
    Joined: Sep 2011
    Posts: 5,065
    Likes: 112, Points: 73, Legacy Rep: 300
    Location: Spain

    TANSL Senior Member

    I suppose so, although I have not made any calculation with it.

  9. eddiezhong
    Joined: Apr 2018
    Posts: 9
    Likes: 0, Points: 1
    Location: Singapore

    eddiezhong Junior Member

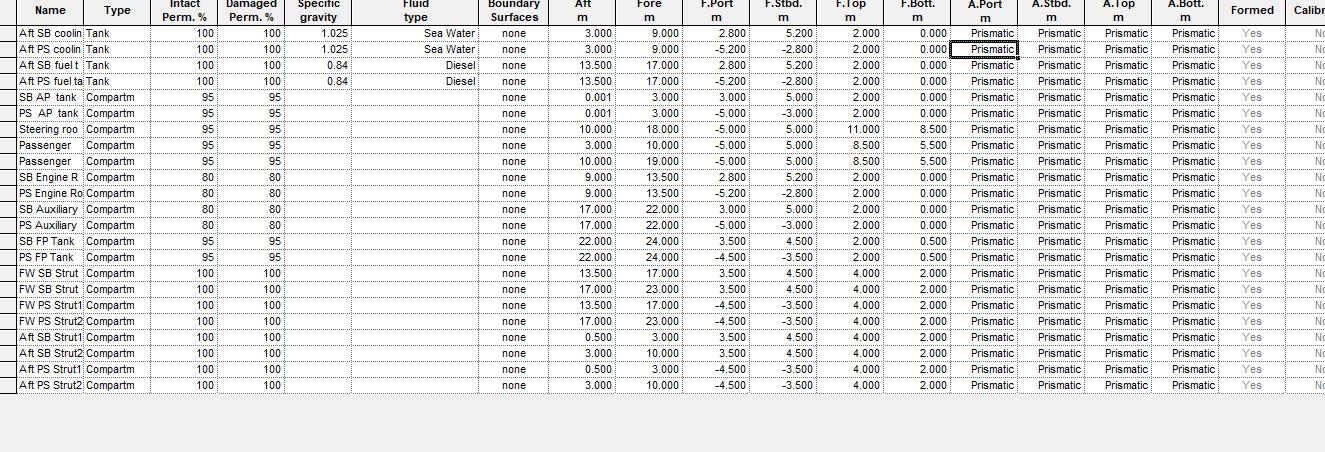

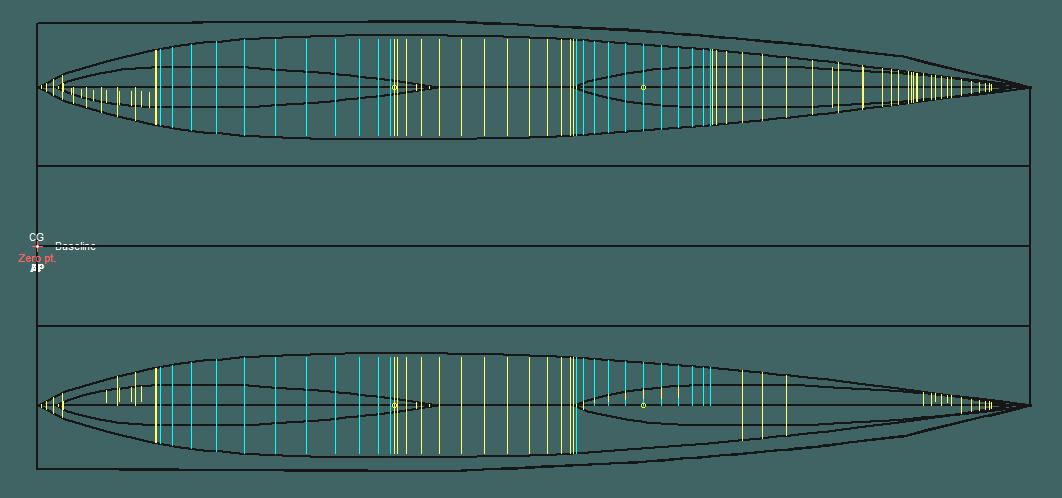

    Sorry, I think there are compartment.jpg room def.jpg still problems compartment.jpg room def.jpg with the model after I create the compartment

  10. eddiezhong
    Joined: Apr 2018
    Posts: 9
    Likes: 0, Points: 1
    Location: Singapore

    eddiezhong Junior Member

    Hi, after I read the user manual, I found out that I can't set the prismatic to DITTO for my compartment, is it because of the model surface problem?
    Thank you.

  11. TANSL
    Joined: Sep 2011
    Posts: 5,065
    Likes: 112, Points: 73, Legacy Rep: 300
    Location: Spain

    TANSL Senior Member

    Sorry not to try to solve your problem, but first of all, I would need the maxsurf file again with your definition of tanks and secondly, and more important, I think you should define the hulls again because what you has defined, for fully submerged hulls, it does not make sense. Think of the submarines' hulls.

  12. eddiezhong
    Joined: Apr 2018
    Posts: 9
    Likes: 0, Points: 1
    Location: Singapore

    eddiezhong Junior Member

    Sorry for late reply, it doesn't allow me to upload my maxsurf stability file. And I dun really understand by defining the hull as a fully submerged hull.
    Sorry about that, I am really new at this and thank you for your patience.


    Attached Files:

  13. TANSL
    Joined: Sep 2011
    Posts: 5,065
    Likes: 112, Points: 73, Legacy Rep: 300
    Location: Spain

    TANSL Senior Member

    Sorry, I still can not open your .msd file
    This is what I mean when I talk about the shape of the submerged hulls.


    Attached Files:

  14. Ad Hoc
    Joined: Oct 2008
    Posts: 5,532
    Likes: 226, Points: 63, Legacy Rep: 2488
    Location: Japan

    Ad Hoc Naval Architect

    I think you're getting way ahead of yourself here.

    Firstly do you have a Lines Plan?...if so, do you have a set of hydrostatics from this Lines Plan?


  15. eddiezhong
    Joined: Apr 2018
    Posts: 9
    Likes: 0, Points: 1
    Location: Singapore

    eddiezhong Junior Member

    Yes, I understand that. Let say if I just use the file imported from rhino, what other steps do I need to do in maxsurf modeler other than setting the frame before going to maxsurf stability.


    Attached Files:

Loading...
