Cargo Sharpie Design

Discussion in 'Boat Design' started by Schooner Guy, Mar 9, 2016.

  1. Schooner Guy
    Joined: Nov 2010
    Posts: 20
    Likes: 0, Points: 0, Legacy Rep: 10
    Location: NC

    Schooner Guy Junior Member

    I'm looking for a large steel sharpie type design in the 70 lwl no more than 80 loa draft 3-4 ft. Tom Colvin did a few however since his passing in 2014 his plans seem to no longer be available. She would be used as a full time live aboard and possibly transporting cargo. Can you guys recommend someone who would like to design this at a reasonable price or somewhere to find similar plans ?


    Attached Files:

  2. DouglasEagleson
    Joined: Nov 2015
    Posts: 79
    Likes: 2, Points: 0, Legacy Rep: -10
    Location: Gaithersburg, MD

    DouglasEagleson Junior Member

    Personal Philosophy Comment

    The reliable diesel engines are real nice. To get an honest four foot draft is an excellent goal. The problem is adequate keel size for this depth. A full hull to four feet will have no keel. Wishing for sails to go upwind at all mandates a true ballast centerboard.

    I figured that a true motorsailer is desirable. This means use to sails to assist in reaches and more downwind. Centerboards have a seaworthiness issue. Do you leave them down in a storm to get damaged or not?

    A clipper ship hull with almost square rigger performance expected is an idea worthy of consideration. Put in that powerful diesel and use it always.
    Get one that self rights also.

    The sails in an engine-out scenario could still get you to shore in an emergency. Just anchor of a beach and walk to a telephone. It might take a day of weather weighting to raise the sails but the wait is predictable.

    Putting up perfect sail rig with a lame keel costs. The huge rigging does effect self righting negatively. So consider. I think P. Bolger mentioned of these tradeoff considerations.

    The small ships of Colvin were self righting I believe. Real nice designs get one.

    If you are a low budget self designer please consider my "Litoral Trawler"
    There is a thread of mine here. You can not ever expect hulls with chines to self right. My design is ...well it is the lowest cost round bilge trawler hull ever designed. It is easy to use Aluminum for it also.

  3. Tanton
    Joined: Nov 2003
    Posts: 992
    Likes: 21, Points: 28, Legacy Rep: 294
    Location: Newport RI

    Tanton Senior Member

  4. Schooner Guy
    Joined: Nov 2010
    Posts: 20
    Likes: 0, Points: 0, Legacy Rep: 10
    Location: NC

    Schooner Guy Junior Member

    DouglasEagleson i'm not sure we are on the same page... I'm not looking for a motorsailer I know these type of hulls must have a centerboard and they don't have a true keel both of these sharpies are Colvin designs and in the 80 x 14ft x 3.5 ft range one of them is Sarah G which I will post the link of her sailing to Bahamas. I am not looking for a world cruising yacht. Sharpie's were used in the this area (Eastern NC) until late 30's early 40's with no engine and in some very rough conditions so I know they do sail well if designed properly. I'm not a designer at all which is why I am asking your guys help with finding a designer at a reasonable cost I have been quoted $35,000 which is why I am asking you guys https://youtu.be/pzfHCMRj3d4

  5. Schooner Guy
    Joined: Nov 2010
    Posts: 20
    Likes: 0, Points: 0, Legacy Rep: 10
    Location: NC

    Schooner Guy Junior Member

    Tanton I just sent you a email

  6. DouglasEagleson
    Joined: Nov 2015
    Posts: 79
    Likes: 2, Points: 0, Legacy Rep: -10
    Location: Gaithersburg, MD

    DouglasEagleson Junior Member

    reply to schooner guy

    I am sorry for my confusion. Your idea is one I had as a young man. I was going to get a Colvin Schooner and put 50 caliber machine gun mounts on it. It was one of his cargo designs. Maybe Gazzelle .

    Running in the Caribbean back then was shot gun mandatory days, drugs and all. Some islands were defacto drug kingpen run airfield islands. Sending drugs to the US citizens was a joke for the Queen.

  7. Schooner Guy
    Joined: Nov 2010
    Posts: 20
    Likes: 0, Points: 0, Legacy Rep: 10
    Location: NC

    Schooner Guy Junior Member

    Can you explain the part about not expecting a hull with chines to self right

  8. Schooner Guy
    Joined: Nov 2010
    Posts: 20
    Likes: 0, Points: 0, Legacy Rep: 10
    Location: NC

    Schooner Guy Junior Member

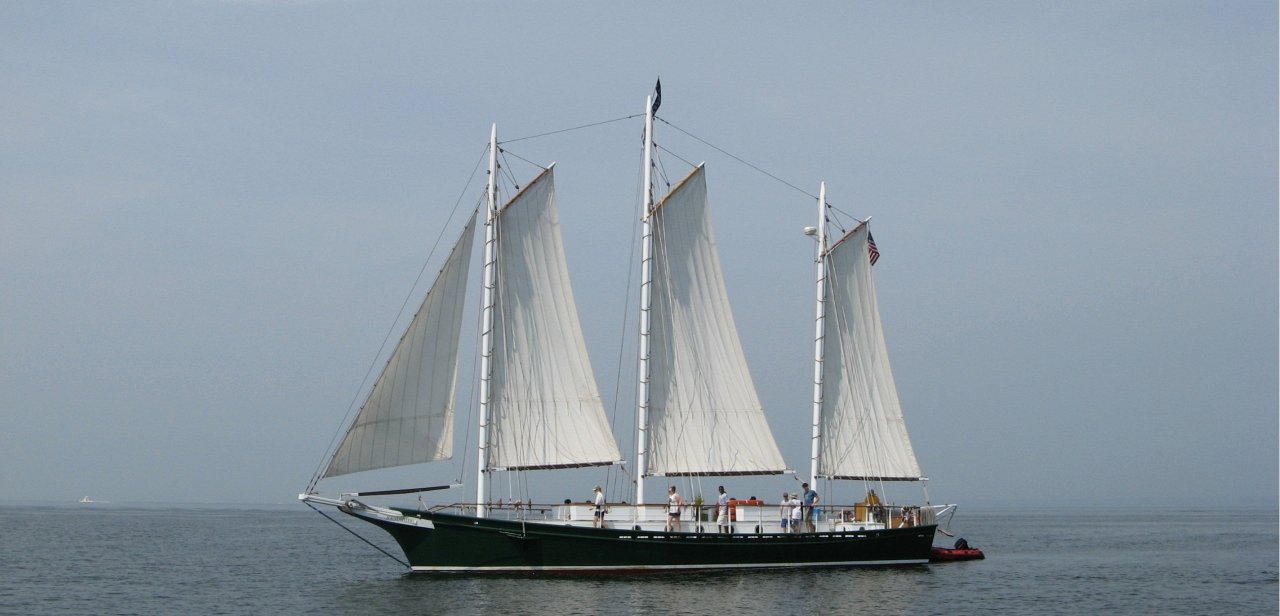

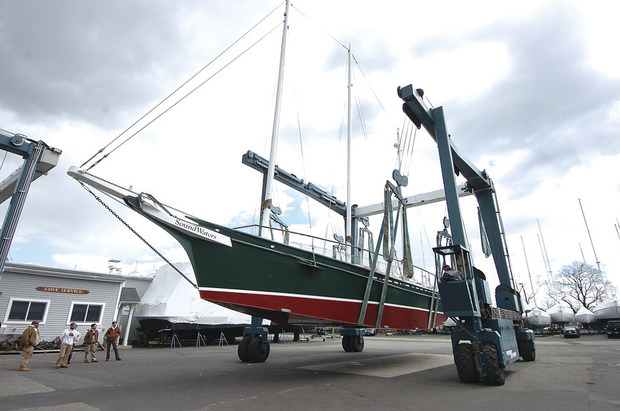

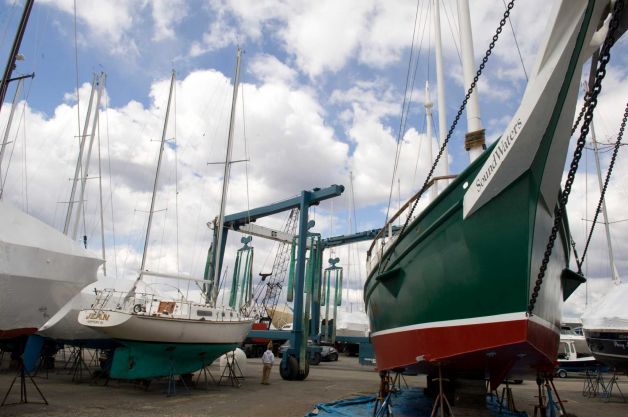

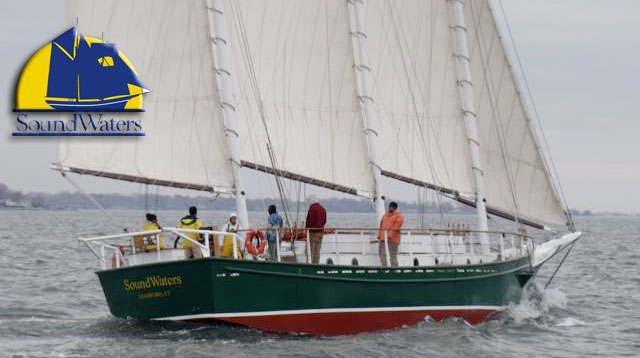

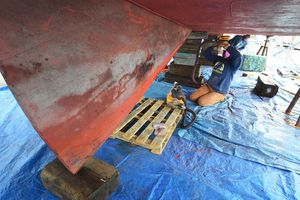

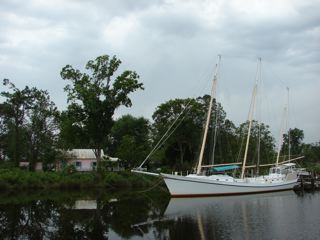

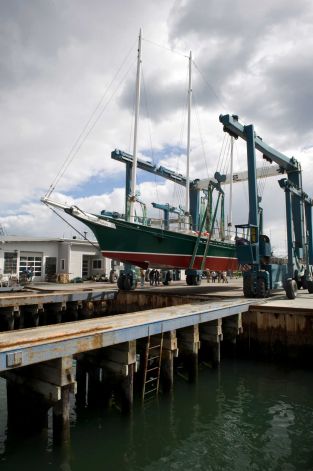

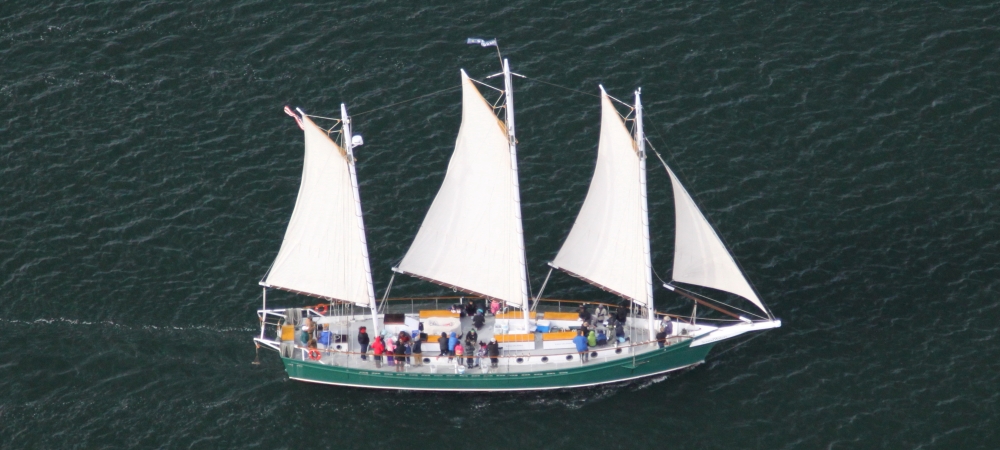

    Here are some more pics I found


    Attached Files:

  9. DouglasEagleson
    Joined: Nov 2015
    Posts: 79
    Likes: 2, Points: 0, Legacy Rep: -10
    Location: Gaithersburg, MD

    DouglasEagleson Junior Member

    self rrighting concept attempt

    As best as I can figure, which is not a professional level.

    Consider a overturned barge hull. Obviously at some width the barge will never sellfright. Then consider decreasing the barge beam to a point where center of mass makes it rock easily.

    The concept is to consider is bilge effect on this rocking event. If the straight barge hulls exist then a rock force is met with an increasing force to return it to upside-down. Buoyancy increases when you step to the side and use your weight to assist.

    So now consider the round bilge upside-down. The inward curve of the bilge while upside-down has a decreasing buoyancy when rocked. The hull does not....?

    It gets hard here for me to try to describe it mathematically. But a round bilge up side-down has a decreasing force of righting when tipped or stood on.

    A chine vessel is a class of righting buoyancy. The volume of hull below the waterline also has a buoyancy force. This allows non-ballasted boats to self-right. A basic hull curve function exists I believe for perfect self-righting. You need an architect to enforce a degree of self righting. A chine designer is not necessarily any deeper a thinker than me.

    The Sharpie is truly unseaworthy. Making Sharpies is a F grade. The vessel you have selected in a fashion will not self-right. I was endeared by a P Bolger Sharpie ~30' long. I finally determined that the ballast in the hull floor was useless. But it is self righting with no ballast using a small rig. A perfect ply motorsailer project for me. Loading it lightly for it little sea world.

    Loading is issue.

  10. Schooner Guy
    Joined: Nov 2010
    Posts: 20
    Likes: 0, Points: 0, Legacy Rep: 10
    Location: NC

    Schooner Guy Junior Member

    DouglasEagleson: Might I recommend a course at West Lawn and some sea time I think your understanding of boats is somewhat limited to you own thoughts.

  11. DouglasEagleson
    Joined: Nov 2015
    Posts: 79
    Likes: 2, Points: 0, Legacy Rep: -10
    Location: Gaithersburg, MD

    DouglasEagleson Junior Member

    doug at school

    Absolutely correct.

    But I do remember advice from Phil Bolger's book. If you are bothering to make a true sailer, why use a chine hull when a rounded bilge design is hardly any more expensive. A custom sail boat will simply lose value comparatively sharpie versus round hull.

    I do not believe I am the only person winging it concerning self-righting.

    Thanks Doug

  12. Schooner Guy
    Joined: Nov 2010
    Posts: 20
    Likes: 0, Points: 0, Legacy Rep: 10
    Location: NC

    Schooner Guy Junior Member

    Douglas this hull design has a displacement of 35 tons (70,000 pounds) they are seaworthy if u know what u are doing. As far as a round bottom it IS massively more expensive than a flater bottom because of the equiment required to make the round bottom as far as the chine hull u keep referring to there are many types a chine hull such as multi chine which designers like Bruce Roberts and other metal boat designs use to created a round effect. A flat bottom is very stable and are seaworthy after all cargo ships are flat bottomed and even though a cargo ship is not self righting it is seaworthy

  13. gonzo
    Joined: Aug 2002
    Posts: 14,274
    Likes: 584, Points: 123, Legacy Rep: 2031
    Location: Milwaukee, WI

    gonzo Senior Member

    If you are in NC, there is a really good naval architect in Wanchese: Glen "P-Nut" Haught. I built several sportfishermen designed by him, but sailboats are what he really loves.

  14. Schooner Guy
    Joined: Nov 2010
    Posts: 20
    Likes: 0, Points: 0, Legacy Rep: 10
    Location: NC

    Schooner Guy Junior Member

    Thanks I will try to get in contact with him


  15. DouglasEagleson
    Joined: Nov 2015
    Posts: 79
    Likes: 2, Points: 0, Legacy Rep: -10
    Location: Gaithersburg, MD

    DouglasEagleson Junior Member

    Sharpie Ballast Dilemma Idea

    Putting in a full ballasted centerboard on a large cargo sharpie entails something like 15,000 pounds on the board bottom. A daunting design.

    I got to thinking about Bolger's 30' sharpie and correct ballast. So here is an alternative attack.

    Use no ballast. Put in a dive plane like fin affair about amidships. Each plane side goes opposite of the other giving a water speed caused torsion to counter act sailing heel.

    The more heel the higher the available torsion because heel means speed and power.

    No ballast for self righting means a normal trawler like upper structure to cause return to upright.

    The drag of the planes can use excess sail power once the hull speed is attained. In light winds the plane angle can necessarily be zero meaning little drag.

    They are not stability planes for wave action unless you build in a dual use.

Loading...
