Boat Project - Dolph 36 (AutoCAD and 3D Model)

Discussion in 'Marketplace' started by middlemarinedub, Feb 5, 2019.

  1. middlemarinedub
    Joined: Jun 2015
    Posts: 16
    Likes: 0, Points: 1, Legacy Rep: 10
    Location: London, UK

    middlemarinedub Captain Vadimo

    For Sale:

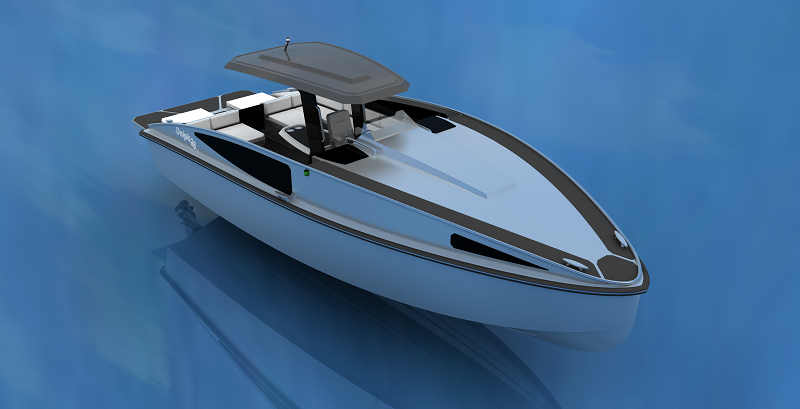

    1. A Concept Design for 36ft cruiser (Renderings).
    2. A preliminary GA (AutoCAD drawing, Scale 1:1).
    3. A Rhinoceros 5.0 3D Model (Comes with STEP and IGES).
      Might be converted to SolidWorks or Inventor.
    Originally concept was made to aluminium hull. Although, there is a possibility
    to make a GRP/FRP version.

    It is possible to arrange further design process* with the concept designer (ADV Yachts).
    It will include: Naval Architecture (Maxsurf: Resistance and Stability, Performance), 3D
    design (Production) and Construction drawings.

    *- At the additional cost.

    Shipping: By email in archive.

    Link to the page on eBay


    Attached Files:

  2. fatihDidi40Cr
    Joined: Jul 2019
    Posts: 4
    Likes: 0, Points: 1
    Location: turkey

    fatihDidi40Cr New Member



    hi can you convert the model to mold? What is the price?

  3. middlemarinedub
    Joined: Jun 2015
    Posts: 16
    Likes: 0, Points: 1, Legacy Rep: 10
    Location: London, UK

    middlemarinedub Captain Vadimo

    Hello,

    Yes you can.
    The model is based on surface modeling and currently has almost no solid bodies.
    Although, a composite configuration adopted for serial production principle (gelcoat) is in progress and will be available soon (production design is done in SolidWorks). Therefore, it will be possible to convert 3D models into molds.
    With regards to price, please contact me via this link.

    Last edited: Aug 11, 2019

  4. middlemarinedub
    Joined: Jun 2015
    Posts: 16
    Likes: 0, Points: 1, Legacy Rep: 10
    Location: London, UK

    middlemarinedub Captain Vadimo

    Updated info on the project.

    Dolph 38 (Composite configuration).
    1. Length: 11.75 m (38.5 ft).
    2. Beam: 3.50 m (11.5 ft).
    3. Draft: 0.65 to 0.7 m (2.13 ft to 2.5 ft).
    4. Displacement: 7 tons (14,000 lbs).
    5. Deadrise: 20°.
    6. Fuel capacity: 1000 liters (264 Gallons).
    7. Water capacity: 250 liters (66 Gallons).
    8. Standard propulsion: Twin Yanmar 8LV-370Z.
    9. Top speed: 45 knots.
    10. Cruising speed: 33 knots.

    Package includes:
    1. A concept design (Renderings).
    2. An updated preliminary GA (AutoCAD).
    3. Basic Naval architecture package.
    4. Solidworks 3D production model (Hull, deck, structures, foundations, superstructures, other parts).
    5. Composite lamination plans.
    It is possible to arrange further design process support during the construction and more detailed engineering*.
    It will include: Production engineering, installation drawings, detailed drawings of fixture and interior.

    *- Based on features of production capacities of specific manufacturing candidate and at the additional cost.

    For more details and inquiries: Contacts
