AC 36 Foiling Monohulls

Discussion in 'Sailboats' started by OzFred, Sep 13, 2017.

  1. OzFred
    Joined: Nov 2015
    Posts: 350
    Likes: 25, Points: 28, Legacy Rep: 16
    Location: Earth

    OzFred Senior Member

    Doesn't this lead to a Blue Arrow configuration (about 1988), which is pretty much what the Pivac/Burville Moth did? Though Blue Arrow was termed "foil stabilised".

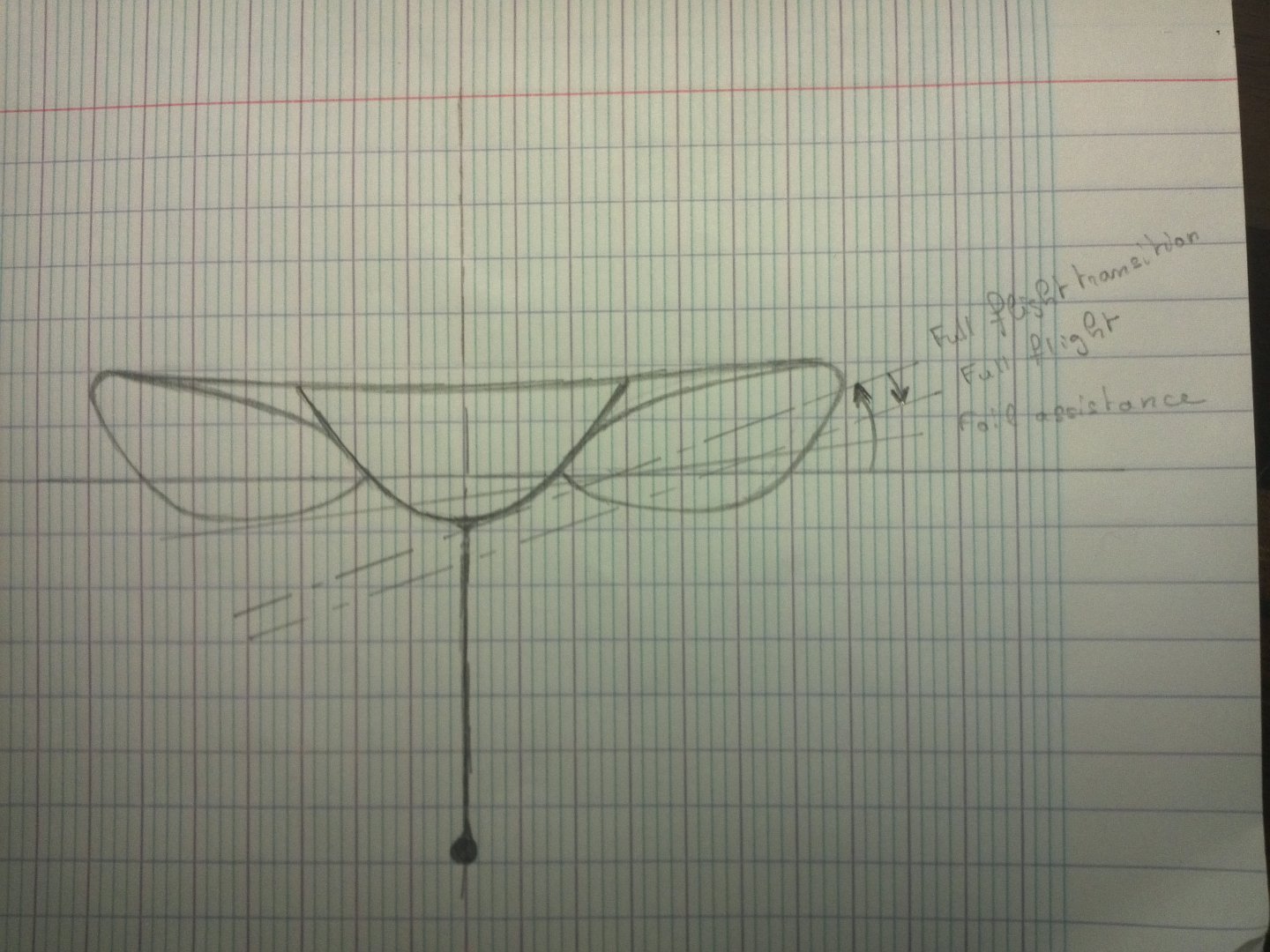

    [​IMG]

    It pretty much precludes close match racing too.

  2. schakel
    Joined: Jul 2008
    Posts: 342
    Likes: 7, Points: 18, Legacy Rep: 48
    Location: the netherlands

    schakel environmental project Msc

    I agree with you on that one but: Even more aplication of for instance Lithium Polymer Batteries might lead to a higher performance of the kanting keelers monohuls.
    Main concern is the 100 % foiling tack that the "old" ac 50 did have. There are still enough highly effective power trainers like in team ETNZ, they are able to fill these batteries with enough power to ensure a fast swing from left to right and backward of the kanting keel. It's proven technology on the VOR's.
    [​IMG]

  3. Doug Lord
    Joined: May 2009
    Posts: 15,782
    Likes: 228, Points: 73, Legacy Rep: 1362
    Location: Melbourne, Florida

    Doug Lord Flight Ready

    NZAC ONE-----my initial conception of how the design could work:

    1) I don't much like the bow but the idea was to make it a bit safer for anyone working up there.

    2) Both foils pivot in their own pivoting trunk to retract-they could also slide up if required.

    3) This type of foil doesn't need to be constantly adjusted-very rarely adjusted since it is a surface piercing foil

    4) Only one mainfoil and the rudder T-foil in the water providing lift--plus the keel providing lateral resistance.

    5) Didn't have time to draw it but the flared section of the main hull is relatively short in a F& A direction to keep weight down.

    NZAC ONE     9-25-17  dl 002.JPG

    NZAC ONE     9-25-17  dl 003.JPG

  4. Gary Baigent
    Joined: Jul 2005
    Posts: 2,926
    Likes: 80, Points: 48, Legacy Rep: 509
    Location: auckland nz

    Gary Baigent Senior Member

    Doug, did you take note of the minuscule area of support in the deck/gunwhale area of your sketch for the hard working and high forces produced by the long foils?

  5. CT249
    Joined: May 2003
    Posts: 1,200
    Likes: 59, Points: 48, Legacy Rep: 215
    Location: Sydney Australia

    CT249 Senior Member

    If it's small, is it going to be able to power a canting keel through a tacking duel?

    Electricity for communication, illumination and safety that is generated by a small turbine is one thing. After all, electricity for those three purposes is common in even the simple sports like running, kayaking. But a turbine big enough to generate enough power to move tonnes of lead back and forth is arguably another.

  6. schakel
    Joined: Jul 2008
    Posts: 342
    Likes: 7, Points: 18, Legacy Rep: 48
    Location: the netherlands

    schakel environmental project Msc

    I think the AC so far has strongly suported mandriven energy suply as in my post number 47.
    AC 36 Foiling Monohulls https://www.boatdesign.net/threads/ac-36-foiling-monohulls.59160/page-4#post-814235
    Exept for the 2 dogfights simply because they were too big to be handled without engines.

  7. Doug Lord
    Joined: May 2009
    Posts: 15,782
    Likes: 228, Points: 73, Legacy Rep: 1362
    Location: Melbourne, Florida

    Doug Lord Flight Ready

    ====================
    Yes.....

  8. Dolfiman
    Joined: Aug 2017
    Posts: 637
    Likes: 272, Points: 63
    Location: NICE (France)

    Dolfiman Senior Member

    Dear Doug,

    Super to brainstorm on the concept :), just to contribute here attached is a variant whith closed loop foils, for structural reason : you avoid a cantilevered assembly and its usual disadvantages (high flexure/torsion efforts at the root, low frequency of the first eigenmode of vibration, which can be excited by the waves encounter frequencies or by vortexes). The design can be lighter (for a same lift) and likely cheaper. From the hydrodynamic view point, foil + keel are 3 surface piercers instead of 2 in your concept, so yes more drag but also more stability I think.


    Attached Files:

    Doug Lord likes this.
  9. Doug Lord
    Joined: May 2009
    Posts: 15,782
    Likes: 228, Points: 73, Legacy Rep: 1362
    Location: Melbourne, Florida

    Doug Lord Flight Ready

    Dolfiman, you might consider a way to retract the foils(see the pivoting foil on my sketch) and I'd review the angle of heel the boat apparently has when foiling. I would plan on a canting mast on my version-same with your boat? Interesting idea!

  10. Gary Baigent
    Joined: Jul 2005
    Posts: 2,926
    Likes: 80, Points: 48, Legacy Rep: 509
    Location: auckland nz

    Gary Baigent Senior Member

    <removed>
    Your creation would snap its foil connection areas like pieces of dried toast.

  11. Doug Lord
    Joined: May 2009
    Posts: 15,782
    Likes: 228, Points: 73, Legacy Rep: 1362
    Location: Melbourne, Florida

    Doug Lord Flight Ready

    This was a sketch, not a design. However, I used my 56 years of sailing, boatbuilding and design experience to estimate that the foils could easily be supported in an all carbon structure similar to what I showed.

    Look at the space available for the head of a very long foil on the Quant 23-not much different than NZAC. Both the Quant 23 and NZAC foils would support about 80% of the boats weight.

    Q23 Yachting World 10-8-15.jpg

    Last edited: Sep 26, 2017
  12. michaeljc
    Joined: May 2013
    Posts: 207
    Likes: 3, Points: 18, Legacy Rep: 18
    Location: New Zealand

    michaeljc Senior Member

    Still trying to anticipate the new AC design. Forget foils for the moment. Hows about a wide beam planing hull - 50 ft +. Bring back in the spinnakers. Feasible? Oddly, the Volvo boats were mentioned at one point as though there should be some kind of connection. I cannot imagine what that may be

  13. schakel
    Joined: Jul 2008
    Posts: 342
    Likes: 7, Points: 18, Legacy Rep: 48
    Location: the netherlands

    schakel environmental project Msc

    Why not the following idea integrated with the new monofoiler?

    electrical surf foiler.PNG
    Might be a winning idea? If Guillaime Verdier integrates this, the cup might look much more interesting.

  14. Doug Lord
    Joined: May 2009
    Posts: 15,782
    Likes: 228, Points: 73, Legacy Rep: 1362
    Location: Melbourne, Florida

    Doug Lord Flight Ready

    NZAC One revised:

    LOA 78'(changed from version one), Beam 59.5'
    1-no canting keel

    2-retractable foils by pivoting

    3- foils don't need to be "flown"-they are automatic



    NZAC revised   9-7-17 003.JPG NZAC ONE     9-25-17  dl 002.JPG


  15. Konstanty
    Joined: Mar 2016
    Posts: 76
    Likes: 3, Points: 8, Legacy Rep: 10
    Location: Bydgoszcz Poland

    Konstanty Junior Member

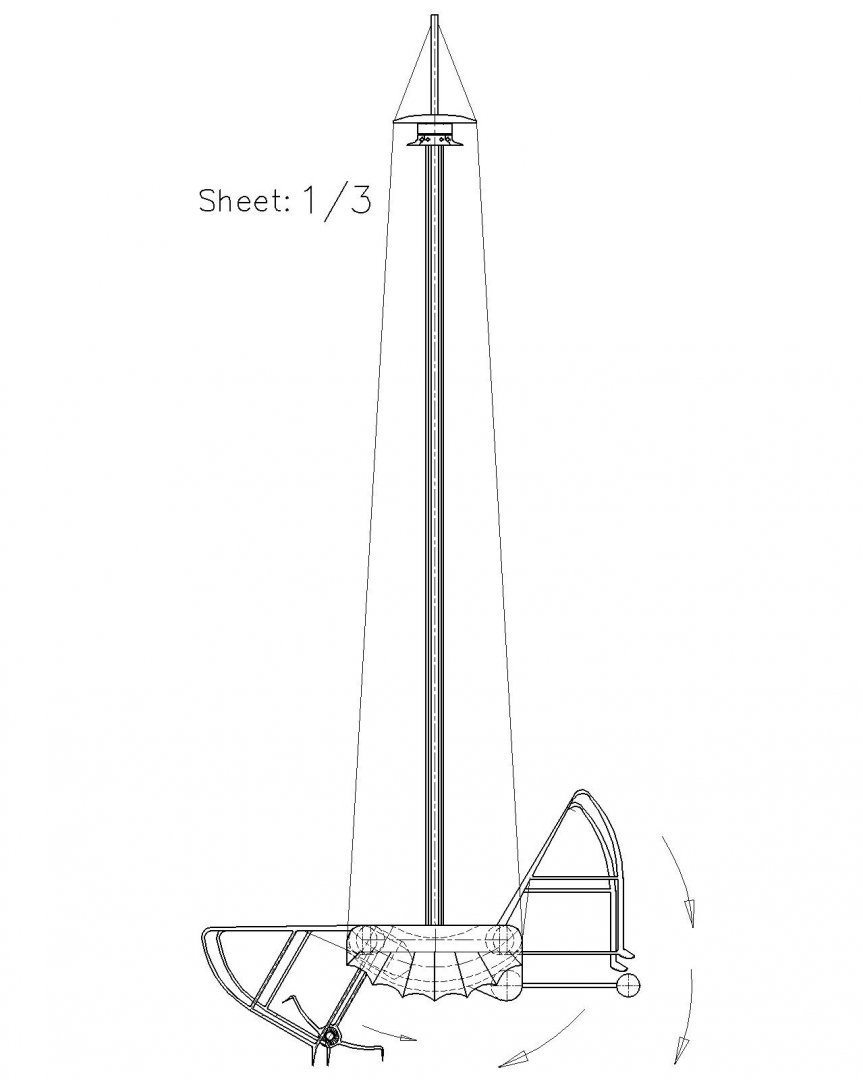

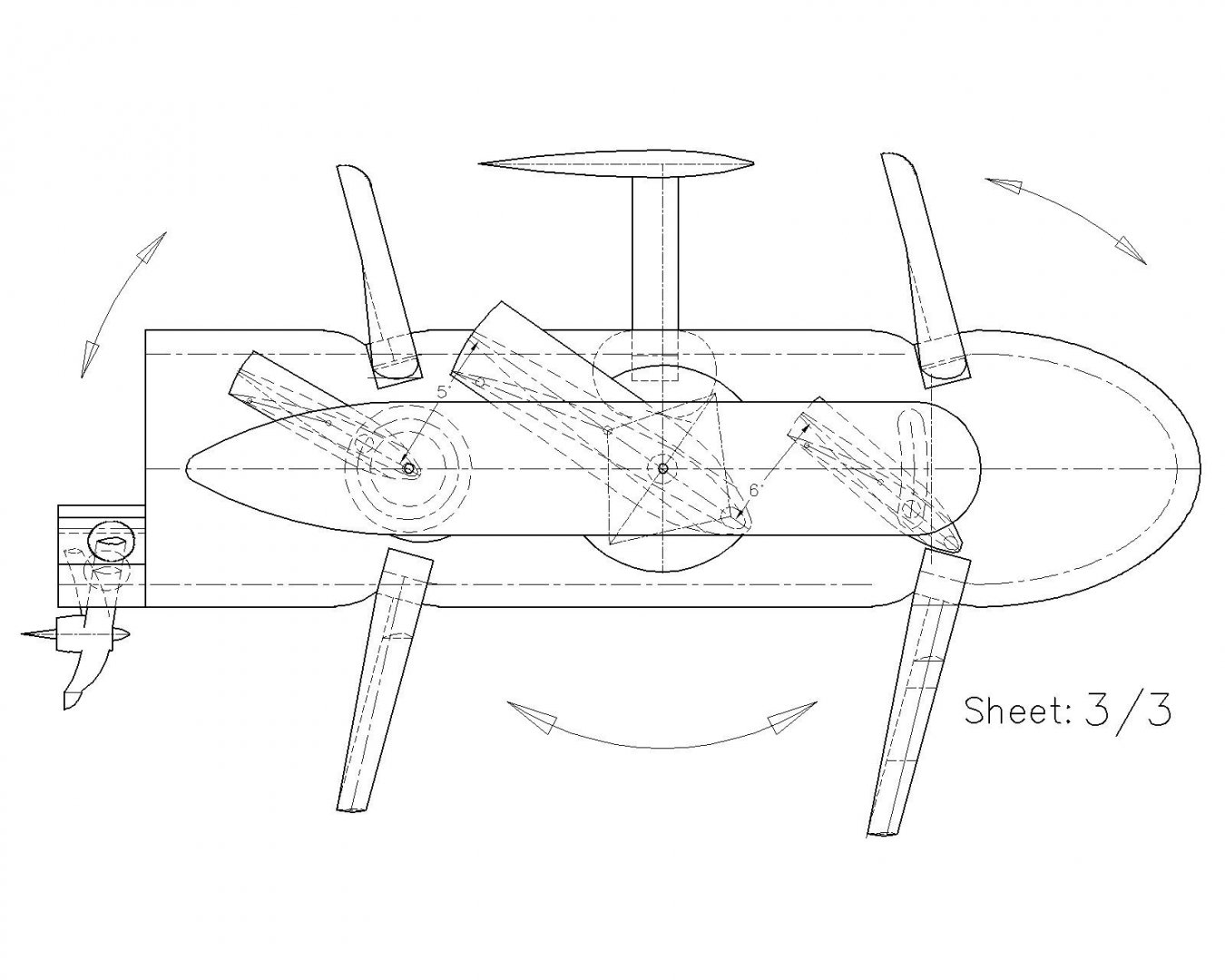

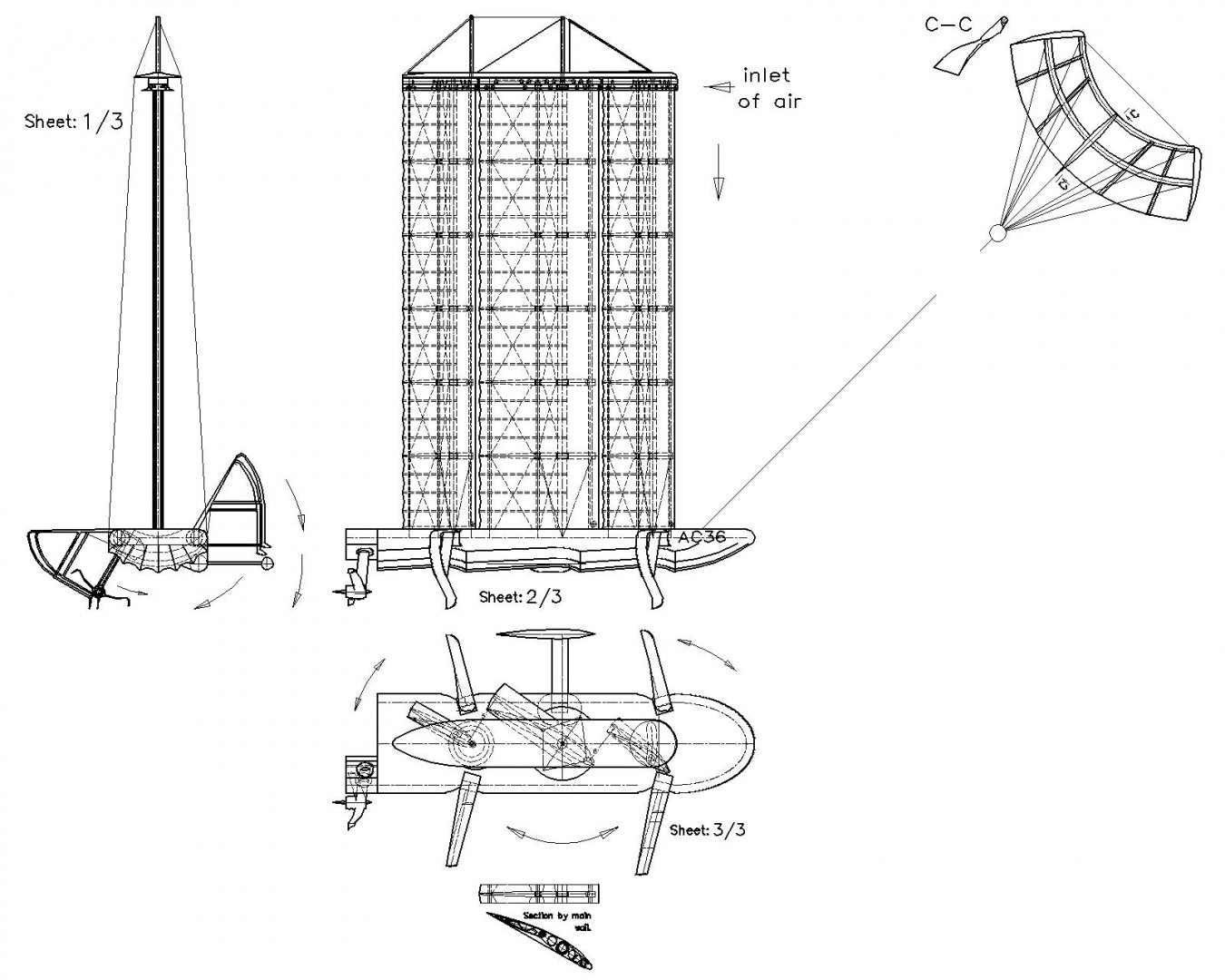

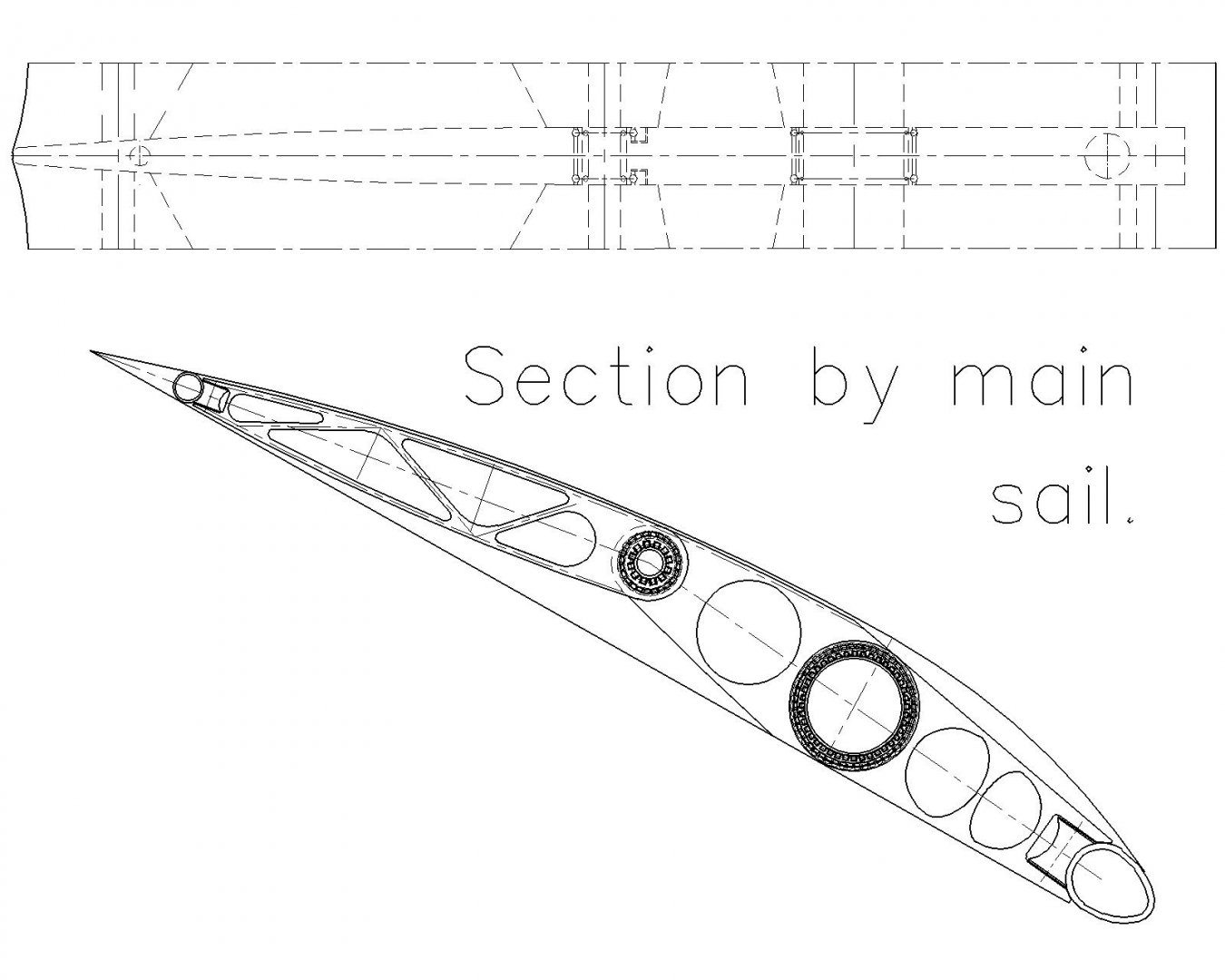

    The inclined canting keel has potential energy. Before the lee ho canting keel has potential energy. On the lee ho canting keel go down. Potential energy of canting keel transforms at energy of hydraulic acumulator. After lee ho this energy + little added raises up canting keel.
