self steerer

Photo Details
bill broome Senior Member Registered: July 2008 Location: sydney Posts: 102	single axis rudder tab self steerer, unmechanical wood-butchers, for the use of
	· Date: November-27-2008 · Views: 2218 · Filesize: 26.7kb ·
	Additional Info
	Keywords: self steerer

Author

Thread

bill broome
Senior Member

Registered: July 2008
Location: sydney
Posts: 102

November-27-2008 7:23pm

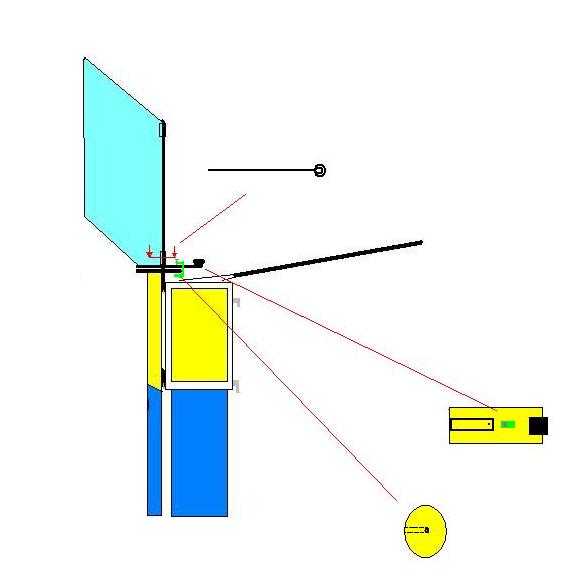

the windvane pivots around a vertical alum tube. a horizontal beam is fixed to the lower edge. the beam carries a counter weight, and a c-clamp.

just below the beam is a horizontal disc, fixed to the rudder tab. the centerpoint of the disc is on the axis of the vane, and the axis of the tab mounts.

after the angle between the vane and tab is selected, tightening the c-clamp fixes the angle. and away you go...

untested as yet, no guarantees.
